This method applies to the following situations:
Tools required:
Pay attention to download the firmware that matches the control board,SD card firmware download link as below
FileName | FileSize | Publish Date | Action |
S19j card swipe package, only for 7007 control board | |||
ANTMINER-S19j-Release-sd2nand-zynq7007-20210523.zip | 26.87MB | 2021-08-19 | Download |
S19j card swipe package, only for BB control board | |||
ANTMINER-S19j-Release-sd2nand-BBCtrl-20210622.zip | 18.66MB | 2021-08-19 | Download |
S19jpro card swipe package, only for 7007 control board | |||
ANTMINER-S19j-Pro-Release-sd2nand-zynq7007-20210515.zip | 26.86MB | 2021-08-19 | Download |
S19jpro card swipe package, only for BB control board | |||
ANTMINER-S19j-Pro-Release-sd2nand-BBCtrl-20210622.zip | 18.66MB | 2021-08-19 | Download |
About control boards for S19j/S19j Pro
There are three different structure control boards for S19j/S19j Pro,Integrated control board(7007 Control board),Integrated control board(A113D Control board) and Combined control board,SD card is inserted in different positions.

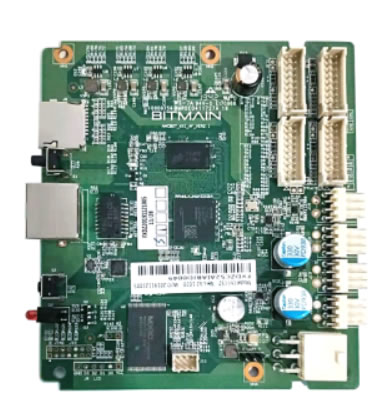

1. Integrated control board(7007 Control board)
2. Integrated control board(A113D Control board)

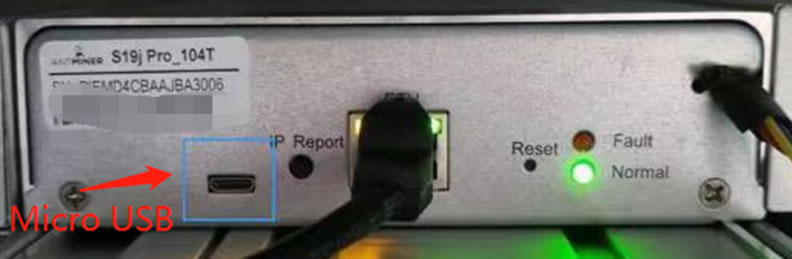

The control board is a circuit board, using Micro USB port card to swipe, the front panel is MicroUSB port.

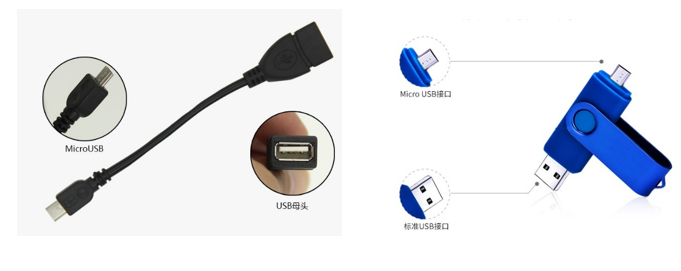

You can use the OTG cable to connect the USB flash drive card, or directly use the OTG USB flash drive with the MicroUSB interface.
3. Combined control board,it‘s composed of IO board and BB board.
The control board is a combination of two circuit boards (IO board + BB board), using TF card card to swipe, there is no opening on the front panel, you need to open the upper cover to see the SD card slot.

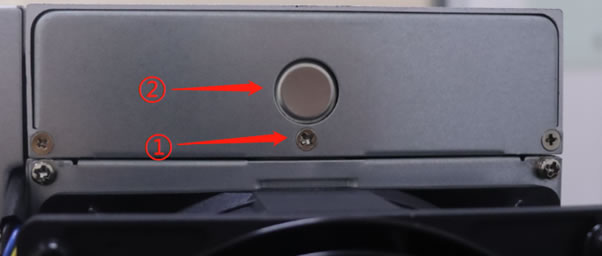

There is no SD card slot on the body panel, you need to open the cover and insert the SD card from the inside,The cover needs to be opened from the back of the machine, the steps are as follows:

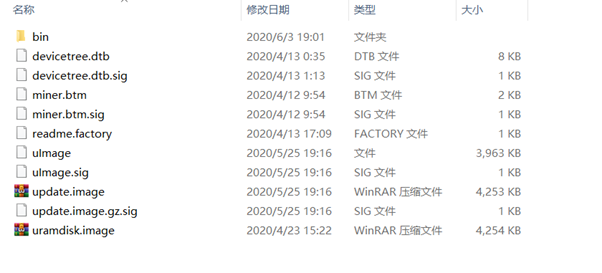

Flashing Instructions :
Possible solutions to solve the flashing failure
