Antminer T19 S19 S19pro Overclocking Kit

$108.00 $0.00
This overclocking board kit allows the Antminer T19 S19 and S19 Pro to run at higher frequencies for higher yields.
It's easy to install, has solid performance, and can be configured with a variety of overclocking options.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Availability: In Stock
Add to Favorites
  • Description
Antminer T19 S19 S19pro Overclocking Kit

This overclocking board kit allows the Antminer T19 S19 and S19 Pro to run at higher frequencies for higher yields.
It's easy to install, has solid performance, and is configurable with a variety of overclocking options. It is especially suitable for working in an environment with excellent heat dissipation conditions and sufficient overclocking margin, such as an oil-cooled environment.

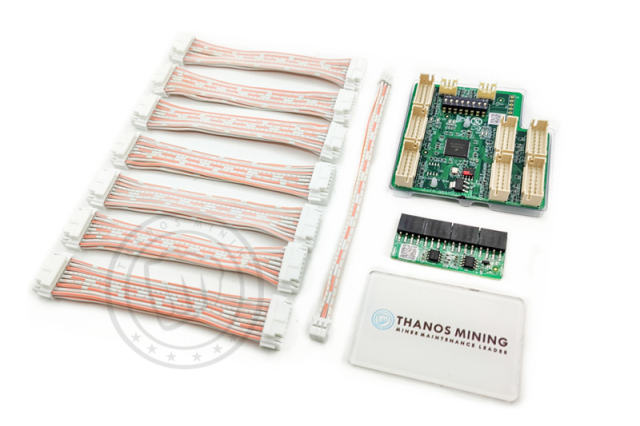

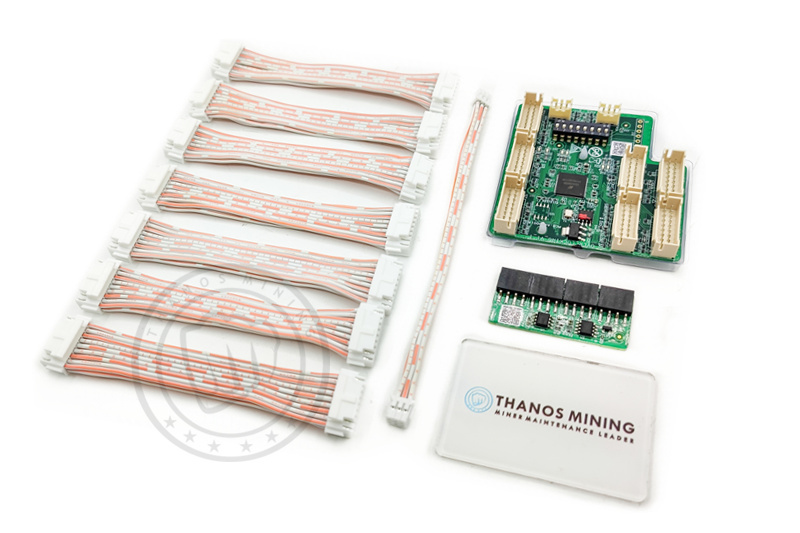

Kit List:
Overclocking motherboard*1
IO data line 18pin*7
Fan Simulator 4pinx4*1
Voltage regulation line 4pin*1


Spot sale, quality assurance.

Companion products are recommended:
APW12 6000W Overclocking Power/PSU For S19 S19pro S19j S19jpro
Smart Circulating Oil Pump Miner Oil Cooling
Heat Exchanger Miner Oil Cooling Same End


This product is easy to install, can be directly connected to the original cable, and the equipment is all placed in the top iron box of the Miner.
Installation diagram:
① Control board hardware version
② Overclocking kit 4pin voltage stabilizer line
③ Original power supply 4pin voltage stabilizer line
Please connect the IO data cable as shown in the figure


Environmental requirements:
1. with good heat dissipation conditions, such as low temperature, oil cooling, liquid cooling.
2. The hardware requirements of the control board, the hardware version is: AMCB07_4X1_4F_S
3. Control board firmware version:
Note 1:
Due to the limited testing environment, not all firmwares are verified. Some firmware versions not in the table may also be available.
For unusable firmware versions, please upgrade to a verified version


Overclocking Mode Description

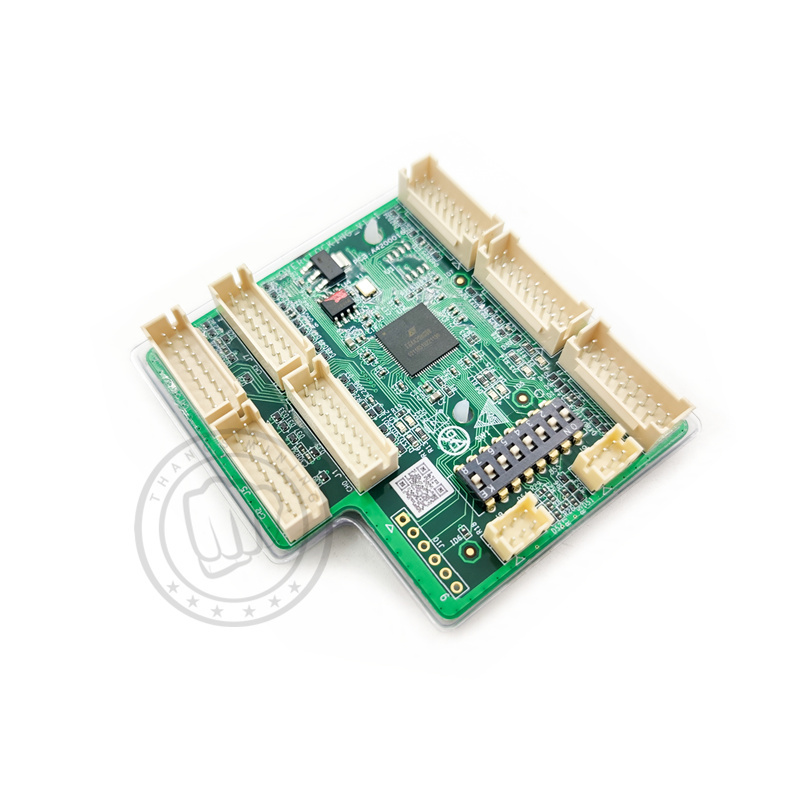

There is an 8bit DIP switch on the overclocking board, as shown in the figure below, for configuring overclocking options.
Miner must be powered off when overclocking options are configured!


The corresponding relationship between overclocking options and DIP switches is shown in the table below.
The factory default DIP switch configuration is: Mode 1


Note 2:
Affected by various factors such as individual chip differences, network conditions, mining pools, etc., the actual computing power increased by overclocking may be different from the data in the table. Tabular data is for reference only
With the increase of overclocking gear, the power consumption of Miner will increase greatly. Please select the appropriate overclocking gear according to Miner's actual cooling capacity and power output capacity. Overclocking mode that exceeds the cooling capacity or power output capability of the miner may cause permanent damage to the miner, or even cause a fire accident.

————————————————————

Prototype overclocking data in oil-cooled environment
The picture below shows the overclocking test data of three prototypes at different oil temperatures in an oil-cooled environment. In order to protect the Miner power supply from being damaged due to overload, this test only tests the power consumption below 4400W.

Antminer T19/84T prototype overclocking test data：


Antminer S19/95T prototype overclocking test data:


Antminer S19 Pro/110T prototype overclocking test data:


This data is for reference only, and the actual data may vary due to different operating environments and individual differences in Miner.
