Actual test by THANOSMINING: Test Antminer S19pro in an oil-cooled environment. When the power consumption is 5946W, the computing power is increased to 168Th-170Th, bringing you more benefits!

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

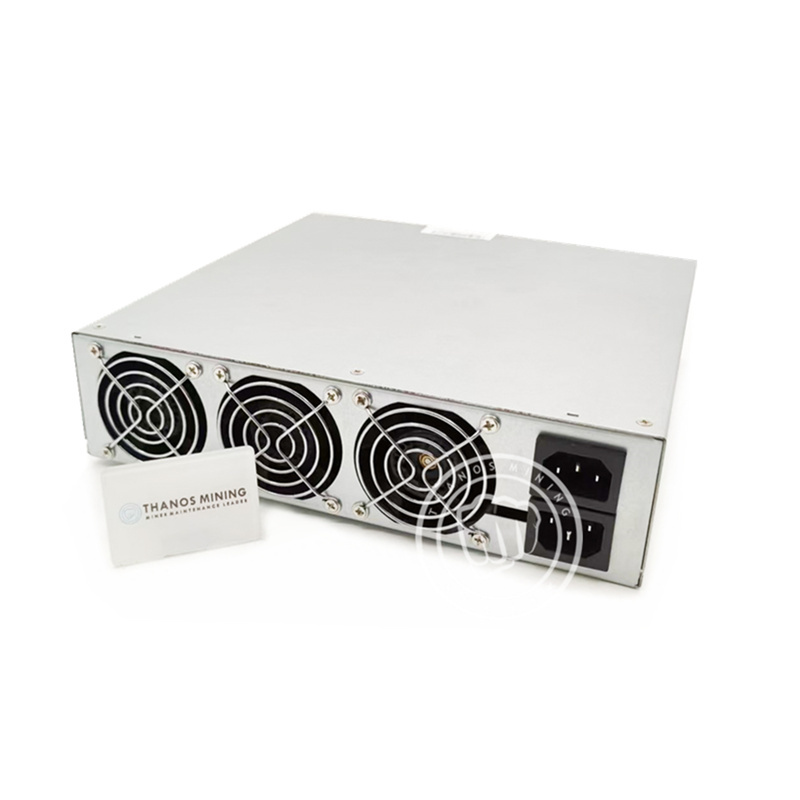

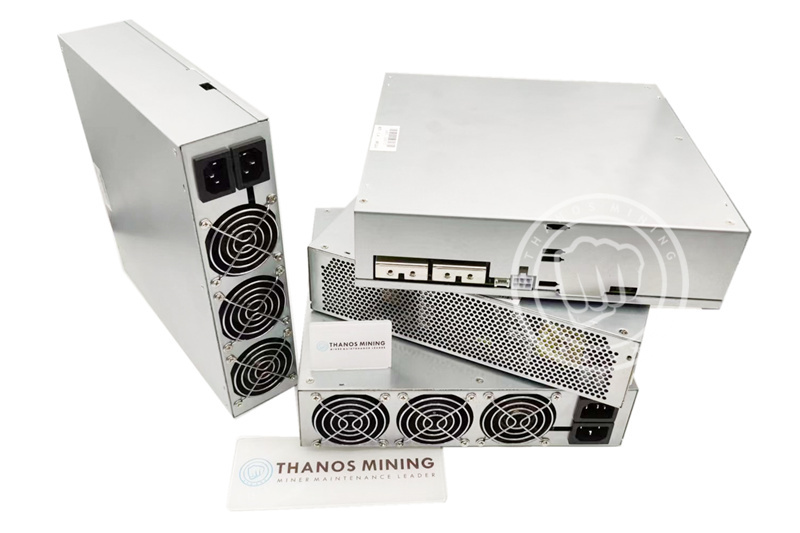

APW12 6000W Overclocking Power/PSU For S19 S19pro S19j S19jpro

The redesigned high cooling power supply has a conversion rate of 93%. The internal use of increased power inductors and MOS arrays, all solid state capacitors. The enhanced axial flow cooling fan is used. The excellent heat dissipation effect means more stable voltage output and longer durability.

Applicable miner model: Antminer T19 S19 S19pro

The output voltage is 12-15V

The project has passed the high stress test of aging equipment, and the floating rate is 15%. That is to say, on a nominal 8000W power supply, we conducted a load pressure test of 9200W power consumption.

Through continuous verification and improvement, the project has been applied to mines of a large number of physical customers and has been fully recognized and praised. Lower failure rate and higher conversion rate bring you more stable and considerable benefits.

Kind tips:
At present, there are many overclocking power supplies with virtual power on the market. They label them as "6000W, 7000W, 8000W, or even 9000W". In fact, their power is only 70% to 80%. It cannot even run at high power for a long time, and it will burn out after a period of use, and the quality cannot be guaranteed.
The overclocking power supplies sold by THANOSMINING are all jointly tested with regular manufacturers, and the test power is increased to 120% to 130%, and professional testing equipment is used for a long time to maintain the aging test.
For example: the APW12 power supply newly developed by the joint manufacturer, the nominal power is 8000W, the actual aging test power is 8900W, and the pressure test is maintained for 24 hours.

key parameter:

Model	APW12 6000W
Applicable Model:	Antminer S19 S19pro S19j S19jpro
INPUT	(200V-305V 50-60Hz 16A)*2
OUTPUT1	12V-15V 550A MAX
OUTPUT2	12V 18A MAX
Input undervoltage protection value	80-89V AC
Output short circuit protection	Have
High temperature protection	Have
Power down protection time	10Ms
Fan control	12V continuous maximum speed

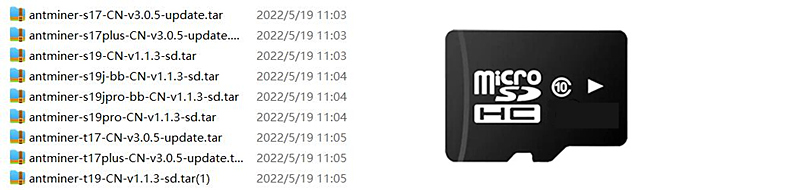

After purchasing this product, you can request the SD card overclocking firmware from the customer service staff. No need to upgrade the miner, just plug and play.

Tips:
The pictures taken by the company have been archived as original pictures, and no unit or individual may misappropriate them. Once found, the company will pursue its legal responsibility.
Please understand, thank you!

THANOSMINING lab test video:

Lifetime (Mean Time Between Failure) Calculation
Calculate the service life of the power supply according to the MIL-HDBK-217F specification standard, work in the 25 °C environment, under full load and nominal load for 10,000 hours of continuous operation, and the parts of the power supply are not damaged. (DC fan not included)

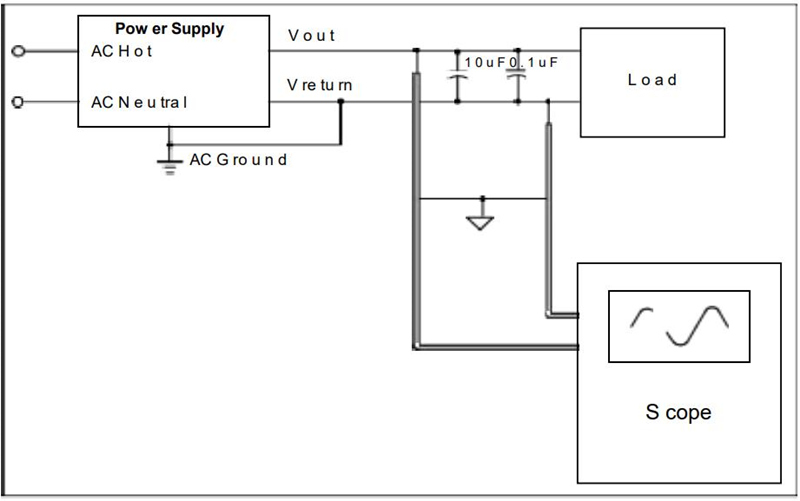

Ripple Voltage Test Circuit：
