This product has strong versatility and is suitable for fault detection of AvalonA10 series, A11 series, A12 series, and A1346 mining machines.
The chip models tested include A3205, A3204, A3203, A3202, A3201, A3200, A3200C, etc.

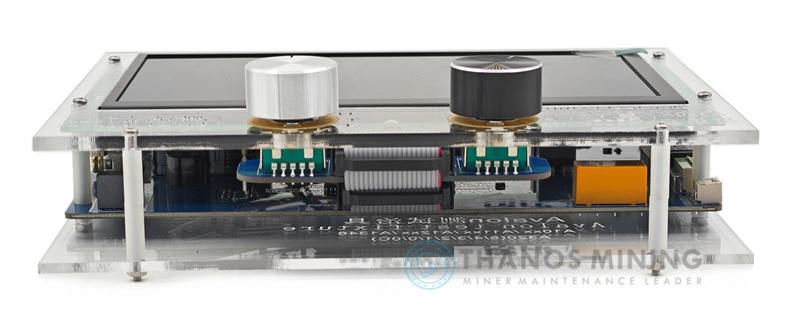

The test fixture A320X-P can visually display the location of the faulty ASIC under test.
This product has strong versatility and is suitable for fault detection of AvalonA10 series, A11 series, A12 series, and A1346 mining machines. The chip models tested include A3205, A3204, A3203, A3202, A3201, A3200, A3200C, etc. The test fixture A320X-P can visually display the location of the faulty ASIC under test.

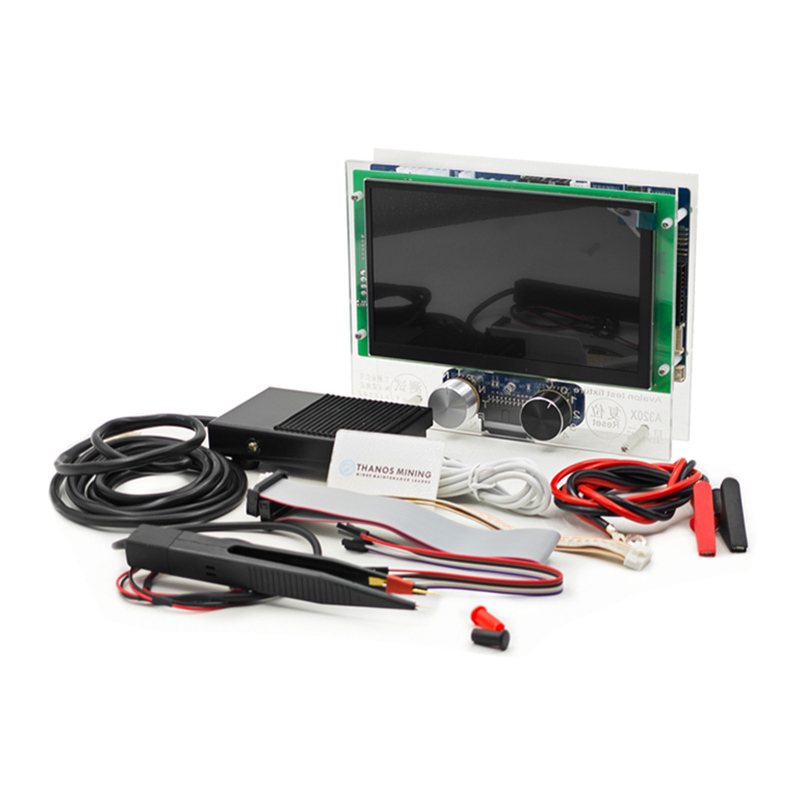

Attachment display: Function Description:
1 Burning control board function: The knob on the tester does not need to select a gear; when the data cable is connected to the control board, good contact must be ensured, and the line sequence must not be reversed; the computer software for viewing test results must be closed, and then the burning software must be opened; Select the corresponding port in the burning software, which can be found in the computer device manager.
2 T signal measurement: Select this level when repairing a defective hash board, find the position that needs to be measured on the hash board, put the multimeter pen in place, step on the foot switch, and release the foot switch of the multimeter after seeing the test results. ;Change the position and repeat the above steps. 3 N Normal test: Select the corresponding chip model and test whether the computing board is normal. The foot switch needs to be pressed for a long time during the test. Disconnecting midway will cause the power-off test to fail. If the hash board is not connected or the hash board MT signal is abnormal, the test program will not run until the buzzer sounds.
4 F Short-circuit chip mode: For C and CK signals normal, the test result is 0 or less than the number of chips. After reaching this position, connect the short-circuit chip clip to the hash board (red + is connected to the D signal, black - is connected to the hash board chip - ), press and hold to start the test. For example, No. 10 and No. 11 are short-circuited. If it reports 0 or 9, it means there is an abnormality before No. 10. If it reports 10, it means it was normal before the 10th.
