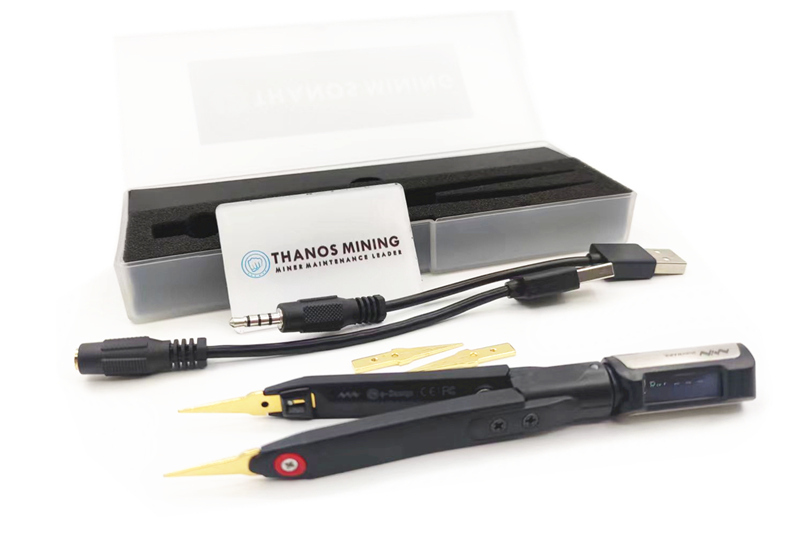

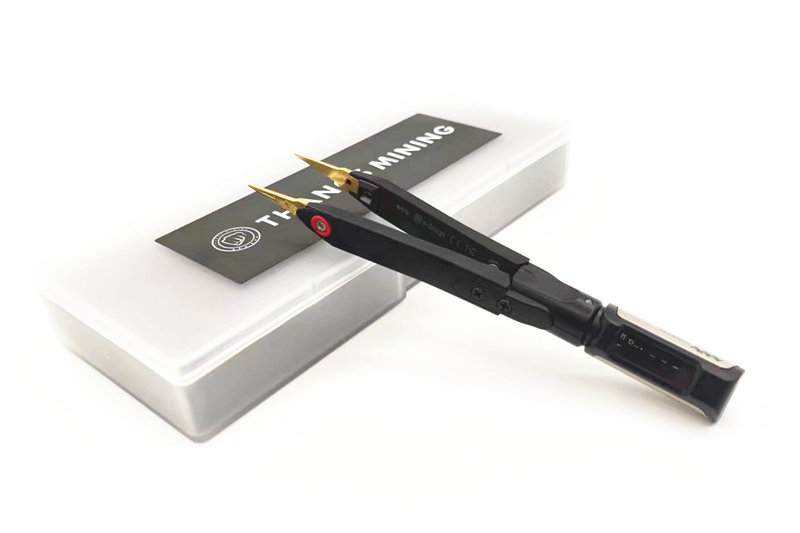

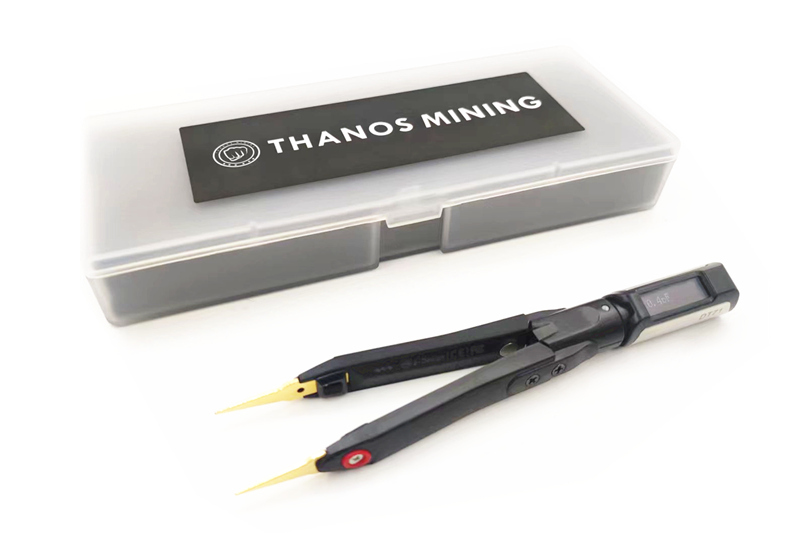

Smart Tweezers LCR Bridge Tester Multimeter DT71

$119.00

7 full-featured smart test pens,
Measuring LCRDVF+ Signal Generator
Compared with the LCR tester on the market, it can measure more types of components and meet different work needs.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description

Smart Tweezers LCR Bridge Tester Multimeter DT71

7 full-featured smart test pens,
Measuring LCRDVF+ Signal Generator

Compared with the LCR tester on the market, it can measure more types of components and meet different work needs.
Support automatic identification, support specified measurement, support continuity and diode measurement.

Visit YouTube: https://youtu.be/foqVlSc5gtQ

Product parameters:

Battery Life	1 charge, 10 hours of continuous work
Charging time	2 hours
Monitor	96*16 OLED
Size	Control end: 47mm / Measuring arm: 106mm
Weight	22g
Operate	Touch operation

Key data:

Measurement parameters	Measuring range	Sensitivity	Accuracy
Resistor	0.1Ω-1kΩ 1kΩ-2000kΩ	0.1Ω 1kΩ	0.5%+2
Capacitor	0.1pF-1000pF 0.001uF-400uF	0.1pF 0.001uF	2%+3
Inductor	0.1uH-1000uH 1mH-50mH	1uH 1mH	5%+3
Voltage	1mV-100mV 0.1V-40V	1mV 0.1V	2%+5 1%+3
Frequency	10Hz-1KHz 1KHz-20000KHZ	10Hz 1KHZ	0.1%+3
Diode	Ordinary Silicon Diode Schottky diodes LED (forward voltage 0.1-3V)	0.1V	1%
Maximum input voltage	-5V - +50V
Impedance	1MΩ

Signal generator:

Sine wave	Support frequency: 10KHz, 5KHZ, 2KHZ, 1KHz, 500Hz, 200Hz
Noise wave	The current frequency only supports 100KHz Subsequent firmware upgrades can be used to obtain more comprehensive measurement data.
Custom wave	Support frequency: 10KHz, 5KHZ, 2KHZ, 1KHz, 500Hz, 200Hz
pulse wave	Support frequency: 100KHz, 50KHZ, 20KHZ, 10KHz, 5KHz, 2KHz，1KHz，500Hz

Automatically identify components, lightly clamp, quickly determine components, and measure main and auxiliary parameters at the same time.

The controller can be rotated at any angle, and the test results are clear at a glance.

Intelligent gesture judgment
The built-in angle sensor automatically recognizes the display direction, and the operation is more casual.

Magnetoelastic Measuring Arm
Special applications of the physical properties of magnets,
Permanent elasticity can be provided to the tweezers to aid grasping.

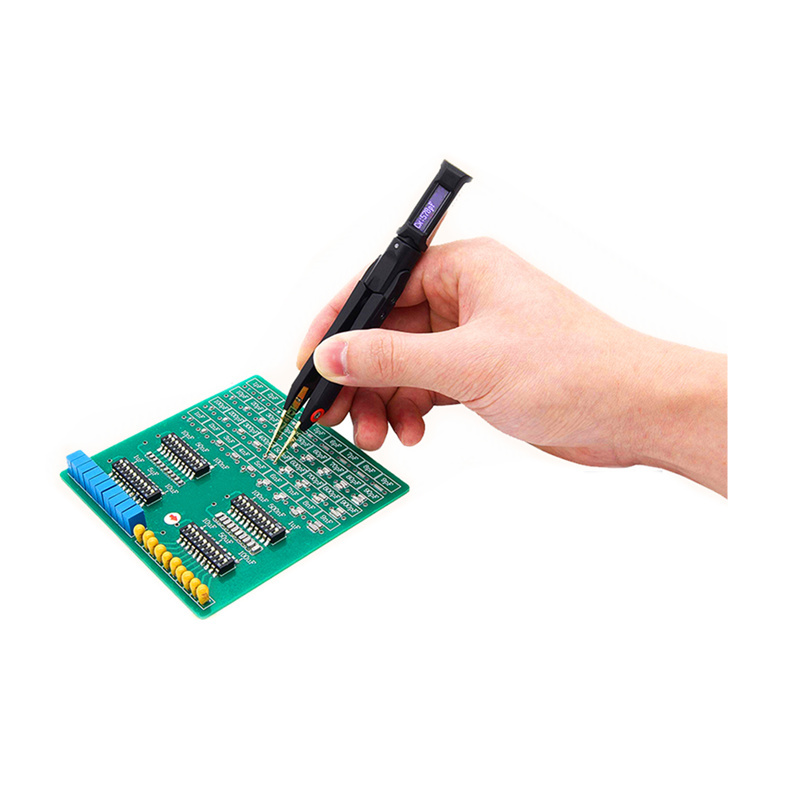

Practical application scenarios:

Detachable Modular Design
The control head can be updated by firmware to update more functions.
Handle built-in dual lithium battery
10 hours of continuous use
Replaceable test pins
