Antminer Multifunctional Test Fixture

$108.00 $0.00
Supported models: Antminer T9+, S9, S9j, S9k, S9se, S11, S15, T15, S17, S17pro, S17+, S17e, T17, T17+, T17e, S19, S19pro, S19j, S19jpro, S19i, S19 Hydro, T19 Hydro, S19pro Hydro, T19, D7, L5, L7, KA3, S19XP, Z15, Z15pro, DR5, K5, K7, E9pro, S19Kpro, S19XP Hyd
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Description

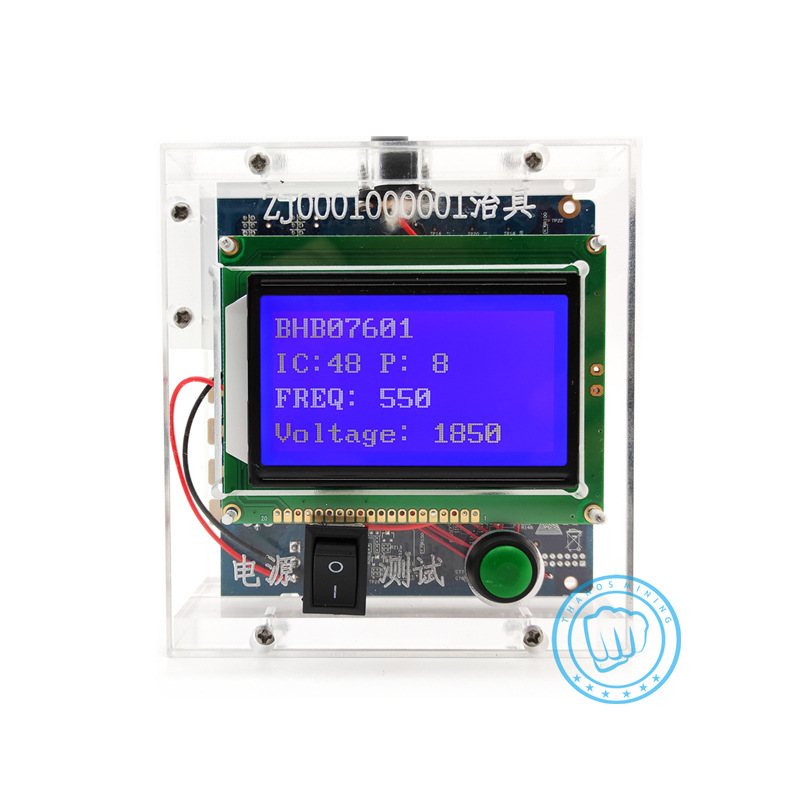

Antminer Multifunctional Test Fixture

Supported models: Antminer T9+, S9, S9j, S9k, S9se, S11, S15, T15, S17, S17pro, S17+, S17e, T17, T17+, T17e, S19, S19pro, S19j, S19jpro, S19i, S19 Hydro, T19 Hydro, S19pro Hydro, T19, D7, L5, L7, KA3, S19XP, Z15, Z15pro, DR5, K5, K7, E9pro, S19Kpro, S19XP Hyd

Antminer  Multifunctional Test Fixture, which can quickly find and locate the damaged ASIC position of the hash board, and display the code on the computer, which is helpful for the quick and accurate repair of the hash board. Please refer to our company's maintenance tutorial for instructions.

Product manual:
The multi-function test fixture is equipped with 4 18pin data interfaces for connecting to the hash board.
1 4pin interface for connecting to PSU (such as APW9, APW9+, APW12)
1 DC12V interface for connecting external power input (convenient for testing miners that do not require 4pin data cables, such as: T9+, S9, S9k, S9se)

Tips:
Test S15 T15, please configure APW8 (16V)
To test S11, please configure APW8 (10V)
Test S17 T17 S17pro T17+ S17+ T17e S17e, please configure APW9 or APW9+ (according to model configuration)
Test S19 S19pro T19 S19J S19Jpro, please configure APW12

Please pay attention to configure the correct power supply, please turn off the power supply when not in use to avoid damage.

Tips:
The pictures taken by the company have been archived as original pictures, and no unit or individual may misappropriate them. Once found, the company will pursue its legal responsibility.
Please understand, thank you!




When testing the combined miner (Miner and PSU are integrated), please connect the correct cable, and use the PSU that comes with the miner to PSU the test fixture and hash board.
Please follow the connection diagram below:




Interface Description:


①DC 12V input
When testing the split-type Miner (such as T9+ S9 S9i S9j S9k S9se), you can supply power to the test fixture through this interface without connecting to the 6pin interface of the PSU.

②PSU 6pin connector
When testing the all-in-one Miner (such as S11, S15, T17, S17, S19, T19, etc.), you need to connect this interface to supply power to the test fixture, and at the same time connect the 4-pin voltage adjustment line of the original Miner PSU.

③Data line IO interface
It is used to connect the hash board. If you need to test T9+, you need to add a T9+ adapter board to complete the adapter from 18pin to 24pin.

④Serial connector
Used to connect to a computer USB via a USB to TTL cable to view the test log on the computer.
The wiring method is:
R=green
UART=black
T=white
Do not connect the red wire

⑤ Voltage regulation line interface
When testing the all-in-one Miner, the 4pin cable used to connect the original PSU.

Software configuration tutorial:
Video Tutorial:
Antminer Hashboard Test Fixture Tutorial
Blog Tutorial:
XSHELL 5/6/7 Configuration Tutorial (Test Fixture Software Program)


——————————

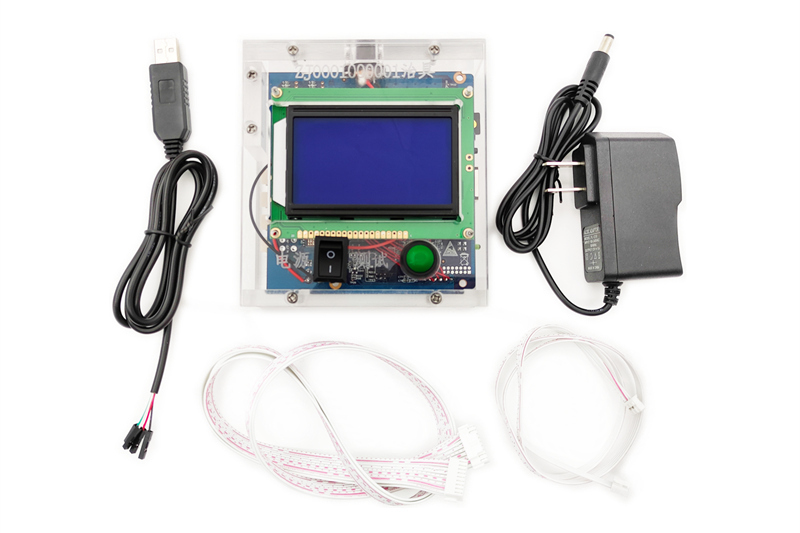

list

Test fixture*1
18pin data cable*1
4pin voltage regulation line*1
12V power supply*1
USB to TTL cable*1



Test fixture principle and overview
