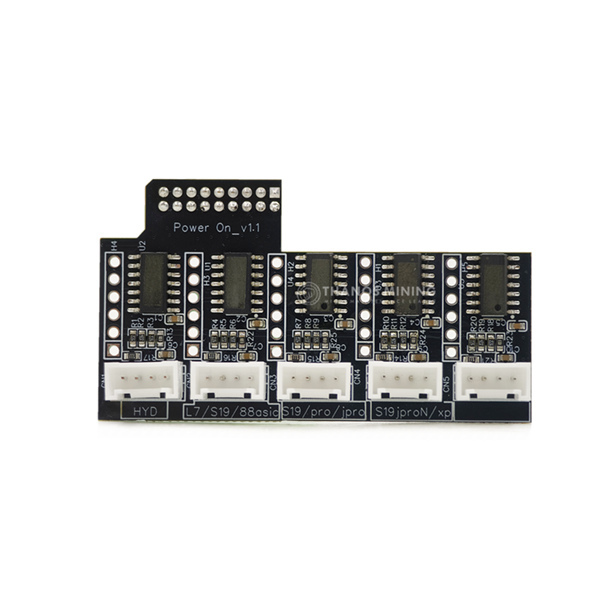

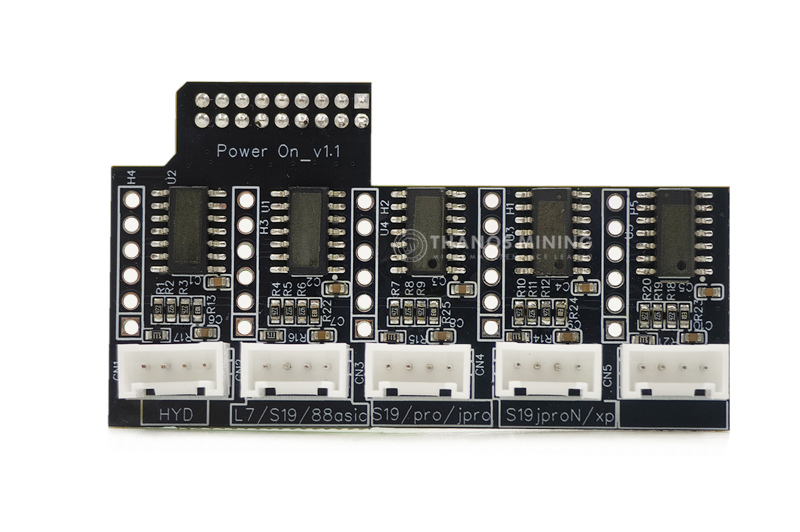

Antminer tester original PSU simulation starter

$18.00 $0.00
This project is suitable for Antminer universal tester.
The principle is to simulate the output of APW12 APW17 startup signal.
In general, when using a universal tester to detect the hashboard, you need to use the original power supply.
This product solves this problem very well, and you can use other models of power supplies to test the hashboard.
Antminer tester original PSU simulation starter
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Antminer tester original PSU simulation starter
  • Antminer tester original PUS simulation starter
1/1
  • Antminer tester original PSU simulation starter
  • Antminer tester original PUS simulation starter
  • Description
Antminer tester original PSU simulation starter

This project is suitable for Antminer universal tester.
The principle is to simulate the output of APW12 APW17 startup signal.
In general, when using a universal tester to detect the hashboard, you need to use the original power supply.
This product solves this problem very well, and you can use other models of power supplies to test the hashboard.
How to use:
Plug the simulator into the 18pin data interface on the back of the tester.
Connect the 4pin data cable on the back of the tester to the 4pin port specified by the simulator.

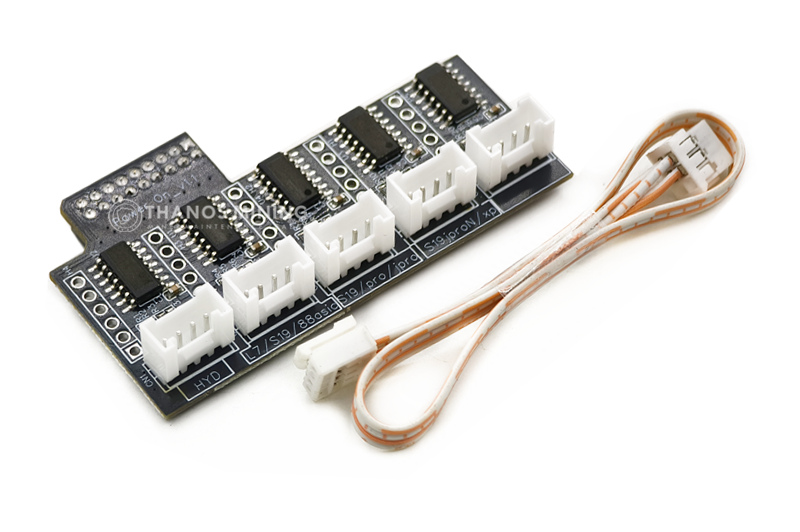

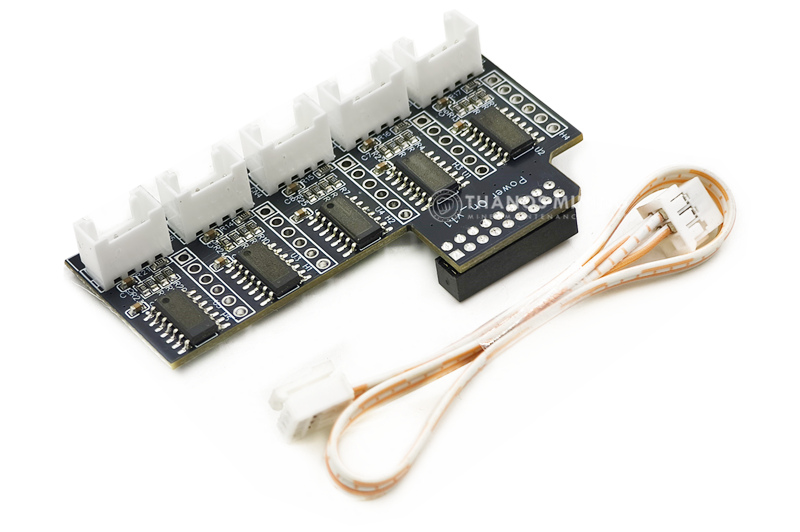

Comes with 4pin data cable*1


The 18-pin port is connected to the tester data port.
One end of the 4-pin cable is connected to the tester, and the other end is connected to the power supply model port corresponding to the startup board.
(The miner model has been marked on the PCB board at the port position, and you can match more power supply models according to the marked model)

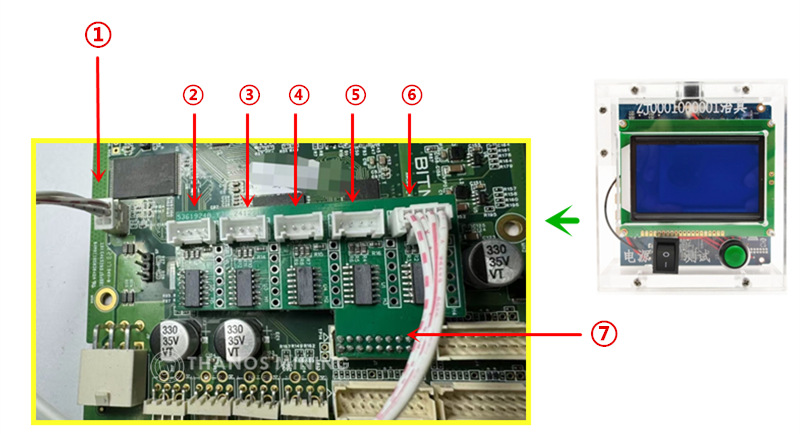

As shown in the figure:
4pin port on the back of the tester
②③④⑤⑥are all corresponding power supply models (the onboard silk screen will be marked)

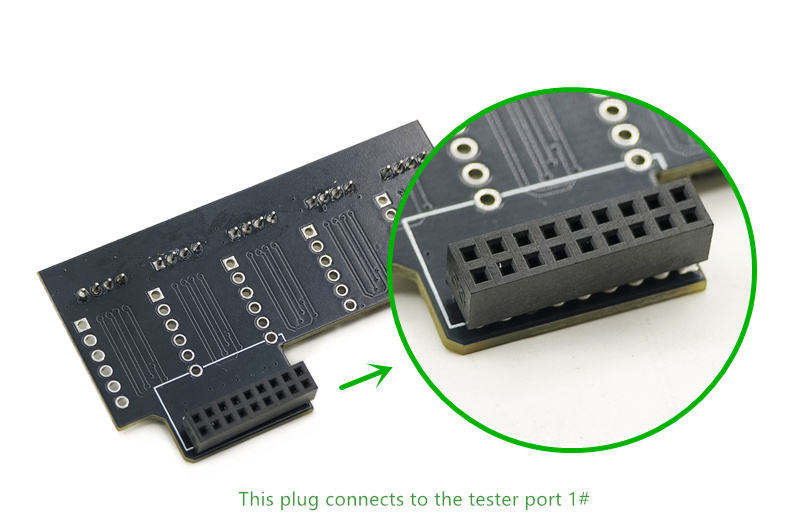

18pin data socket, directly plugged into the 18pin data port on the back of the tester.
