THTE A1 All-in-One Offline HashBoard Tester

$299.00 $0.00
The product supports the full range of Antminer air-cooled and water-cooled models,
including the S17, S19, S21, and S23 series, as well as the L, Z, D, K, and KS series.
It also supports Whatsminer air-cooled and water-cooled models,
covering the entire Whatsminer 2, 3, 5, and 6 series.
Capabilities include fan testing for three different interface types,
testing of Bitmain APW series power supply units,
and temperature testing for ASIC chips.
THTE A1 All-in-One Offline Hash Board Tester
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • THTE A1 All-in-One Offline Hash Board Tester
  • THTE A1 All-in-One Offline Hash Board Tester
1/1
  • THTE A1 All-in-One Offline Hash Board Tester
  • THTE A1 All-in-One Offline Hash Board Tester
  • Description
THTE A1 All-in-One Offline HashBoard Tester

This product features an optimized design and is powered via a Type-C interface, allowing for operation using a portable power bank.
Equipped with a high-efficiency computing chip, the device can analyze data by directly reading the chip IDs on the hash boards,
thereby significantly improving both testing accuracy and operational efficiency.
The product supports the full range of Antminer air-cooled and water-cooled models,
including the S17, S19, S21, and S23 series, as well as the L, Z, D, K, and KS series.
It also supports Whatsminer air-cooled and water-cooled models,
covering the entire Whatsminer 2, 3, 5, and 6 series.
Capabilities include fan testing for three different interface types,
testing of Bitmain APW series power supply units,
and temperature testing for ASIC chips.

All features of this tester are available for free,

and future firmware upgrades will not incur any additional costs;
you can gain access to more features without any further investment.



Supported Devices:
Category Model
Antminer The S17, S19, S21, and S23 series, L, D, Z, K, KS series,  (covering both air-cooled and water-cooled models) are all supported.
Whatsminer 20 series, 30 series, 50 series, 60 series  (covering both air-cooled and water-cooled models) are all supported.
Avalon Under development...
Power Supply Unit (PSU) APW8、APW9、APW11/1721、APW12/1215、APW12/1417、APW17/1215、
Fan Large square connector (e.g., fans for Whatsminer, Antminer S21 Pro, and similar models)
Small square connector (e.g., fans for Avalon and similar models)
Flat-type connector (e.g., fans for Antminer S19 and similar models)

Built on an all-new architecture, this testing framework is both fast and reliable;

it features a clean, intuitive interface and delivers authentic, trustworthy test data.


Functional Interface Layout Diagram:

From left to right
Whatsminer air-cooling interface,
AntMiner universal interface,
Whatsminer water-cooling interface.
On the far right is the Avalon test interface (currently not supported; relevant test source files are under development...).
Tester power input: Type-C 5V/2.0A (can be powered by a power bank).

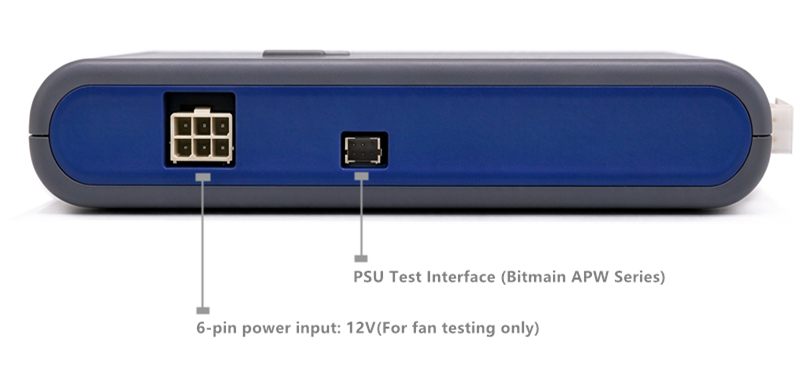

The 6-pin power input connector (DC12V) on the left is used solely for testing fans.
The connector on the right is used for testing Bitmain APW series power supply units.

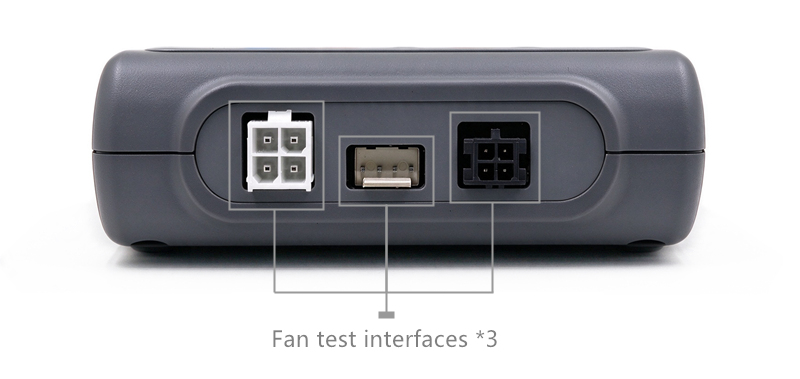

The three ports at the top are all fan test ports.



Item List:
THTE A1 Tester Unit × 1
18-pin Data Cable × 1
16-pin Data Cable × 1
High-power DC Power Supply × 1
DC Power Adapter × 1
Alligator Clip Test Lead × 1
AC Power Cord × 1
USB Type-C Data Cable × 1
The images above are for reference only;
actual configuration may vary based on stock availability.
