Name: Universal Antminer Test Fixture
Brand: THANOS MINING
Price: 76 USD
Availability: InStock

WhatsApp for Sales Service: 8619936403319

Your position: Home > Tools / Accessories > Universal Antminer Test Fixture

1/1

Universal Antminer Test Fixture

$76.00

Supported models: Antminer T9+, S9, S9j, S9k, S9se, S11, S15, T15, S17, S17pro, S17+, S17e, T17, T17+, T17e, S19, S19pro, S19j, S19jpro, S19i, S19 Hydro, T19 Hydro, S19pro Hydro, T19, D7, L5, L7, KA3, S19XP, Z15, Z15pro, DR5, K5, K7, E9pro, S19Kpro, S19XP Hyd

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description

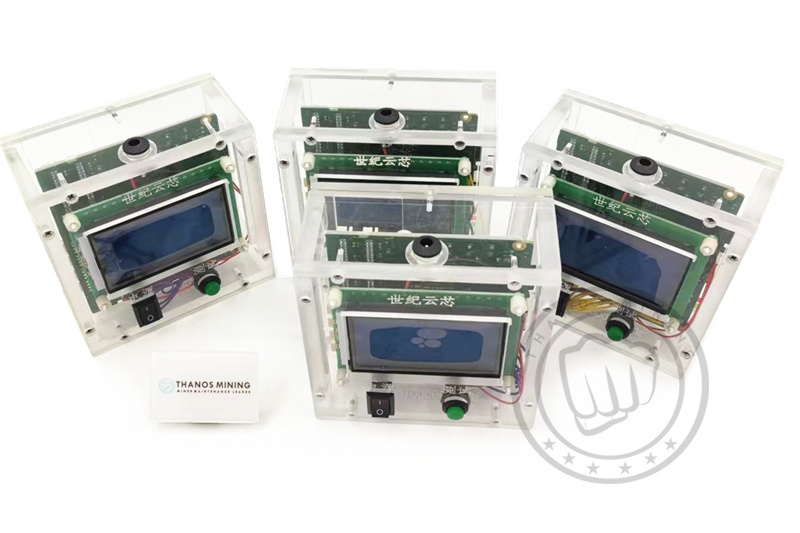

Universal Antminer Test Fixture

Supported models: Antminer T9+, S9, S9j, S9k, S9se, S11, S15, T15, S17, S17pro, S17+, S17e, T17, T17+, T17e, S19, S19pro, S19j, S19jpro, S19i, S19 Hydro, T19 Hydro, S19pro Hydro, T19, D7, L5, L7, KA3, S19XP, Z15, Z15pro, DR5, K5, K7, E9pro, S19Kpro, S19XP Hyd

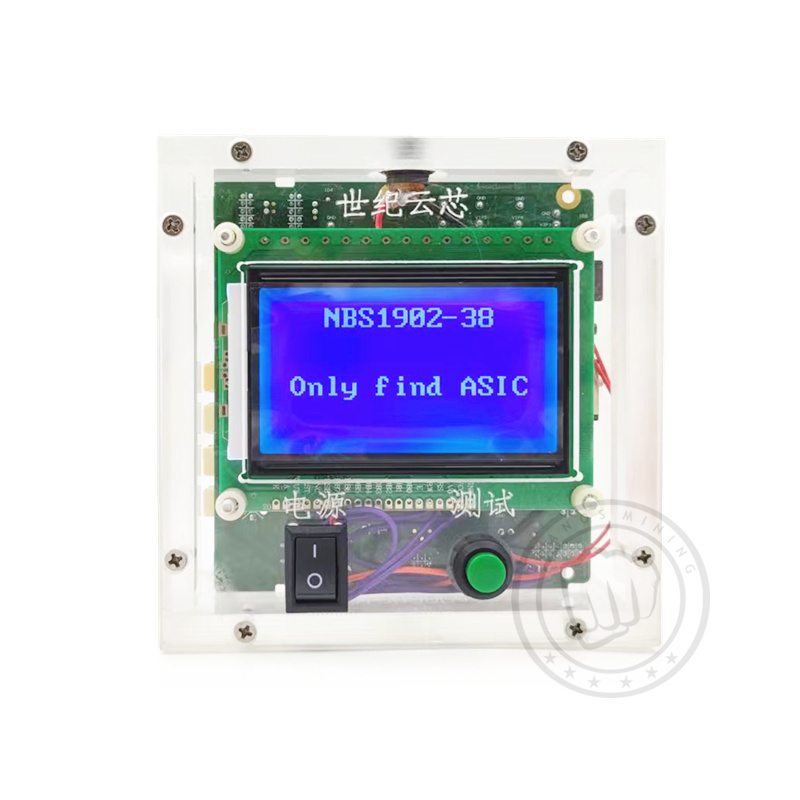

Antminer Multifunctional Test Fixture, which can quickly find and locate the damaged ASIC position of the hash board, and display the code on the computer, which is helpful for the quick and accurate repair of the hash board. Please refer to our company's maintenance tutorial for instructions.

Product manual:
The multi-function test fixture is equipped with 4 18pin data interfaces for connecting to the hash board.
1 4pin interface for connecting to PSU (such as APW9, APW9+, APW12)
1 DC12V interface for connecting external power input (convenient for testing miners that do not require 4pin data cables, such as: T9+, S9, S9k, S9se)

Tips:
Test S15 T15, please configure APW8 (16V)
To test S11, please configure APW8 (10V)
Test S17 T17 S17pro T17+ S17+ T17e S17e, please configure APW9 or APW9+ (according to model configuration)
Test S19 S19pro T19 S19J S19Jpro, please configure APW12

Please pay attention to configure the correct power supply, please turn off the power supply when not in use to avoid damage.
