Name: TTL to RS232 serial port module
Brand: THANOS MINING
Price: 2.2 USD
Availability: InStock

WhatsApp for Sales Service: 8619936403319

Your position: Home > Repair Tools / Parts > TTL to RS232 serial port module

1/1

TTL to RS232 serial port module

$2.20

This project can be used with a wired scanner to repair the scanning operation of Antminer L7 hash board.
RS232 to TTL serial interface module with transceiver set IC.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description

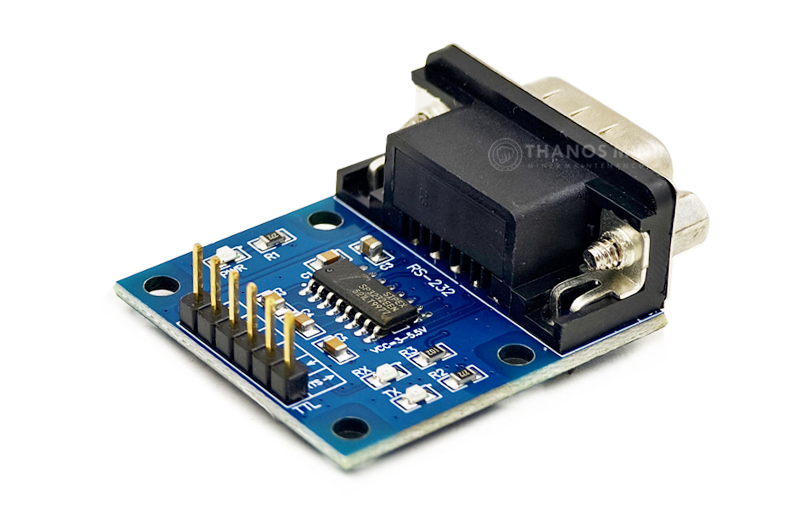

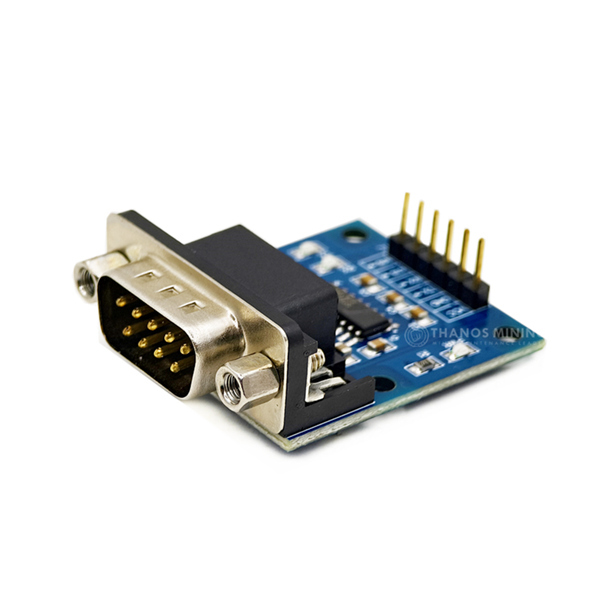

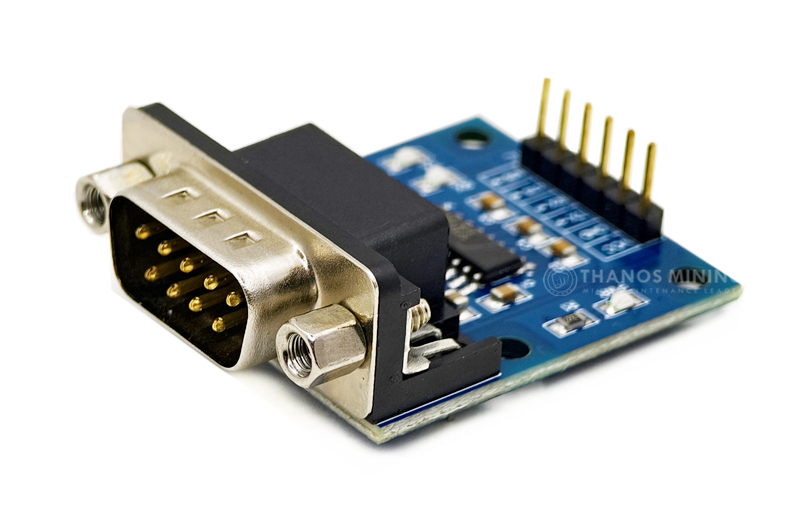

TTL to RS232 serial port module

This project can be used with a wired scanner to repair the scanning operation of Antminer L7 hash board.
RS232 to TTL serial interface module with transceiver set IC.
It facilitates serial communication between TTL and RS232 ports by providing the necessary electrical signal conversion.
This project is equipped with Dupont wire*6pin

IC chip: MAX3232
Working voltage: 3.3-5.5V
Can be used to program STC MCU, NXP MCU, Renesas MCU, STM32 MCU, N+-2EC MCU
Pre-assembled compact boards
Works with most microcontrollers
Operates at speeds up to 250 kbit/s

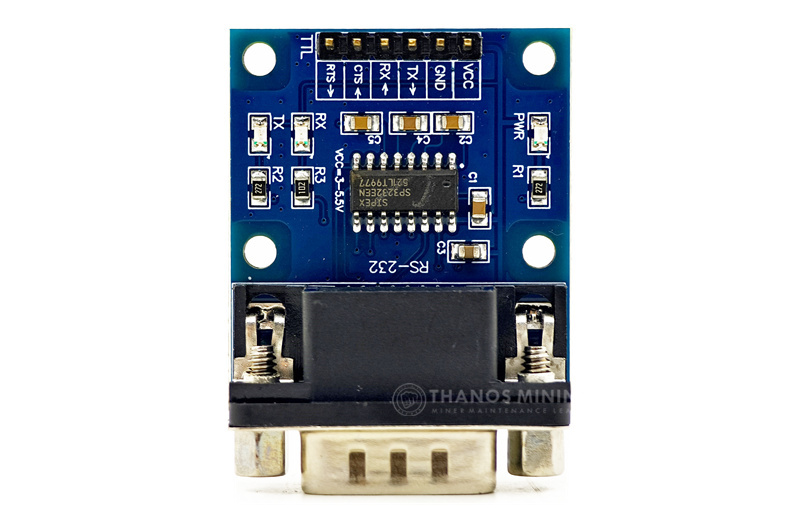

Pin Definition Diagram：
