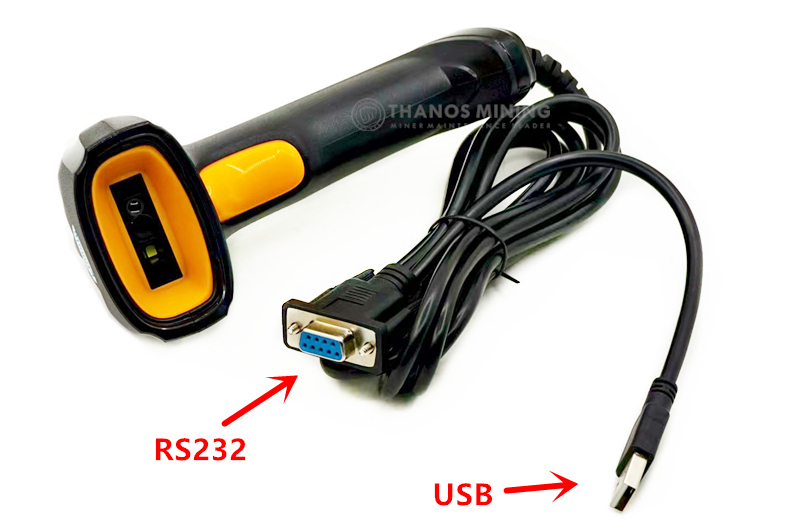

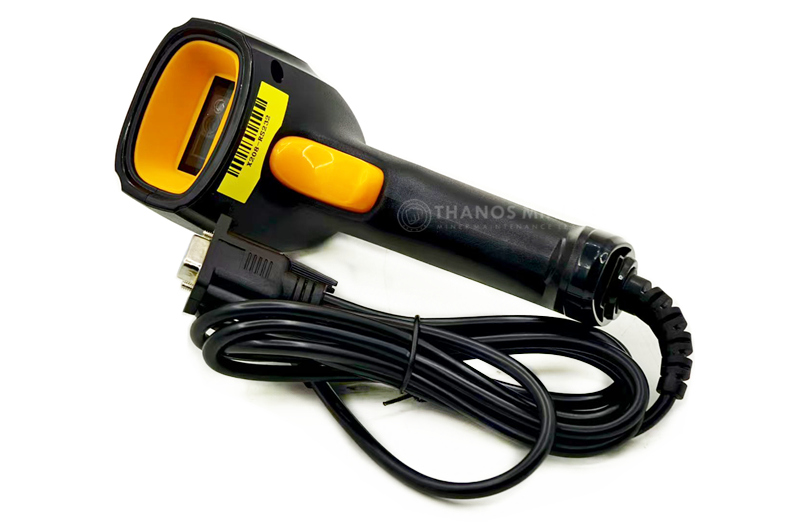

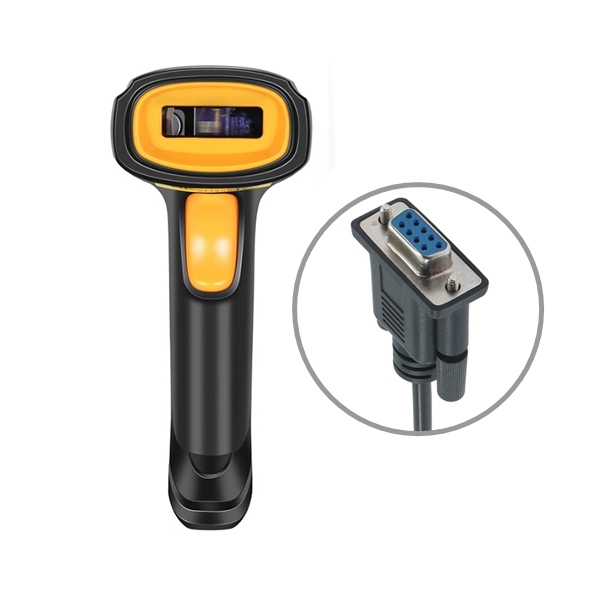

Serial RS232 barcode QR code CMOS scanner

$26.00 $0.00
Compared to laser barcode scanners, CMOS have the ability to scan QR codes.
Can be used for barcode scanning and inspection of mining PSUs, such as the Bitmain APW12 1215E and 1215F.
Using an RS232 adapter board, it enables efficient connection, barcode scanning, inspection, and repair.
Serial RS232 barcode QR code CMOS scanner
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites
  • Serial RS232 barcode QR code CCD scanner
  • Serial RS232 barcode QR code CCD scanner
1/1
  • Serial RS232 barcode QR code CCD scanner
  • Serial RS232 barcode QR code CCD scanner
  • Description
Serial RS232 barcode QR code CMOS scanner

Serial RS232 1D/2D barcode scanner,
Barcode and QR code scanner, compatible with PLC microcontrollers

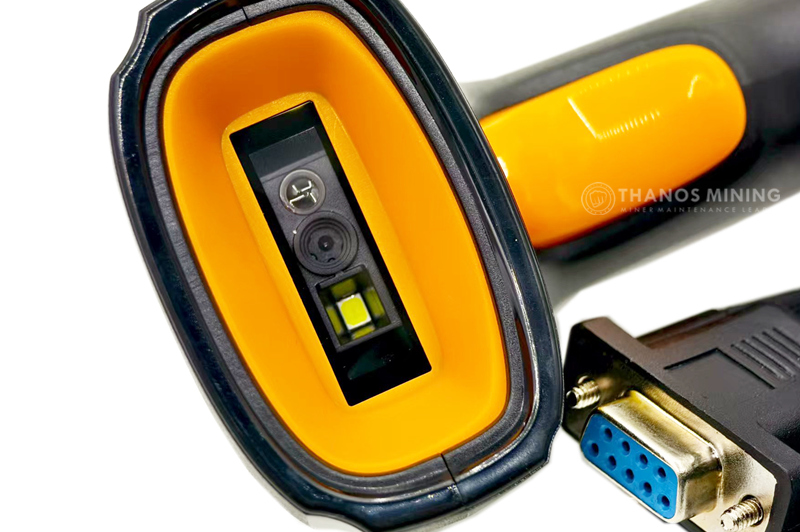

CMOS sensor barcode scanner with LED fill light.
Compared to laser barcode scanners, CMOS have the ability to scan QR codes.
Can be used for barcode scanning and inspection of mining PSUs, such as the Bitmain APW12 1215E and 1215F.
Using an RS232 adapter board, it enables efficient connection, barcode scanning, inspection, and repair.

Light Source: 620nm Visible Red Diode
Image Sensor: CMOS
Resolution: 1 megapixel
Reading Accuracy: >4 mil
Minimum Contrast: >30%
Barcode Sensitivity: 55° Pitch/25° Rotation/75° Deflection
Symbol Systems:
1D: CODE 128, EAN-8, EAN-13, UPC-E, UPC-A, Interleaved 2 of 5, ITF 14, MATRIX 25,
Code 39, Codabar, Code 93, UCC/EAN-128, Code 11, INDUSTRIAL 25,
STANDARD 25, Plessey, MSI Plessey, ISBN
2D: PDF 417, QR, Aztec, DataMatrix, Maxicode

Related Products:
TTL to RS232 serial port module


With USB auxiliary power supply function


Using CCD sensor, laser focus, LED fill light
