Home > Tools / Accessories > UNI-T UT89XD UT61E+ Multimeter

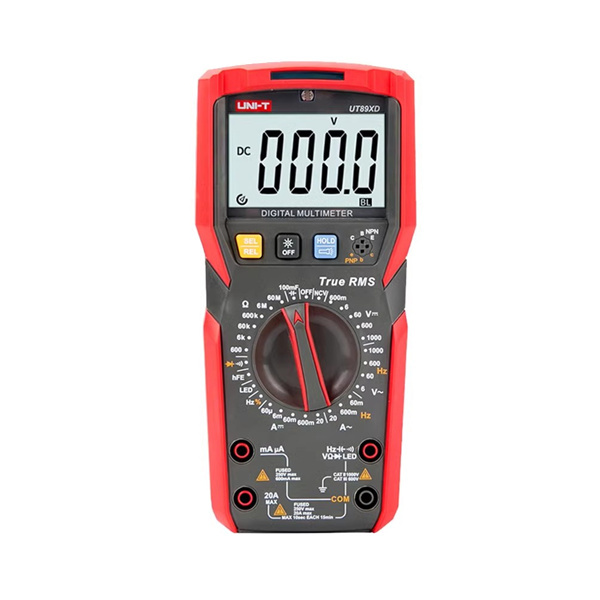

UNI-T UT89XD UT61E+ Multimeter

$52.00 $0.00
UNI-T UT89XD and UT61E+ have two models, which are slightly different in functions and parameters. Customers with different needs can choose the appropriate model.
Commonly used for ASIC computing board repair, control board repair, GPU repair and other work.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Model:
    UT89XD
    UT61E+
    Please select the information you wantX
Quantity:
  • UNI-T UT89XD UT61E+ Multimeter
  • UNI-T UT89XD UT61E+ Multimeter
1/1
  • UNI-T UT89XD UT61E+ Multimeter
  • UNI-T UT89XD UT61E+ Multimeter
  • Description
UNI-T UT89XD UT61E+ Multimeter

UNI-T has many years of production experience in the field of electronic measuring equipment. Among them, high-precision multimeters have a wide range of applications and excellent cost-effectiveness.

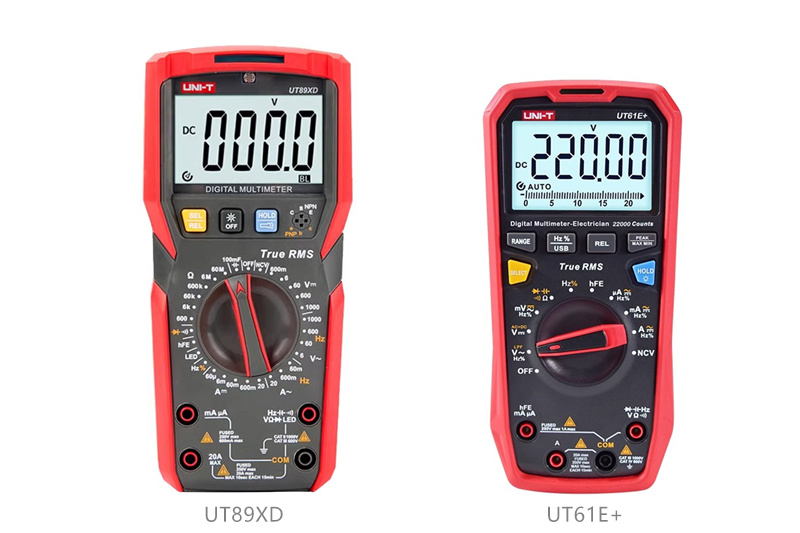

UNI-T UT89XD and UT61E+ have two models, which are slightly different in functions and parameters. Customers with different needs can choose the appropriate model.
Commonly used for ASIC computing board repair, control board repair, GPU repair and other work,
UT89XD has a sine wave measurement function, measuring a maximum of 1000V DC/AC voltage,
It also supports a maximum of 20A DC/AC current, diode, resistance, frequency, capacitance, hFE, continuity and NCV, and can quickly and accurately distinguish between neutral and live wires.
UT61E+ is more comprehensive, with extremely high-precision measurement results, and adds LPF (low-pass filter) and ACV+DCV functions.




Parameter comparison:
Caption
Function UT89XD UT61E+
DC voltage 0.1mV~1000V ± (0.5%+2) 0.01mV~1000V ± (0.05%+5)
AC voltage 1mV~1000V ± (0.8%+5) 0.01mV~1000V± (0.5%+10)
Resistance 0.1Ω~60MΩ ± (0.8%+3) 0.01Ω~220MΩ± (0.5%+10)
DC current 0.01uA~20A ± (0.8%+8) 0.01uA~20A ± (0.5%+10)
Alternating current 10uA~20A ± (1.0%+12) 0.01uA~20A ± (0.8%+10)
Capacitance 1pF~100mF ± (2.5%+20) 1pF~220mF ± (3%+5)
Frequency 0.001Hz~10MHz ± (0.1%+4) 10Hz~220MHz ± (0.1%+4)
Duty cycle 0.1%~99.9%± (2%+5) 0.1%~99.9% ± (2%+5)
On/off buzzer
Maximum display 6000 22000
Diode
LED measurement
NCV
Live line measurement
Flashlight
Backlight
Data retention
Automatic shut-down
Dimensions 175x81x48.5mm 183x85x50mm
