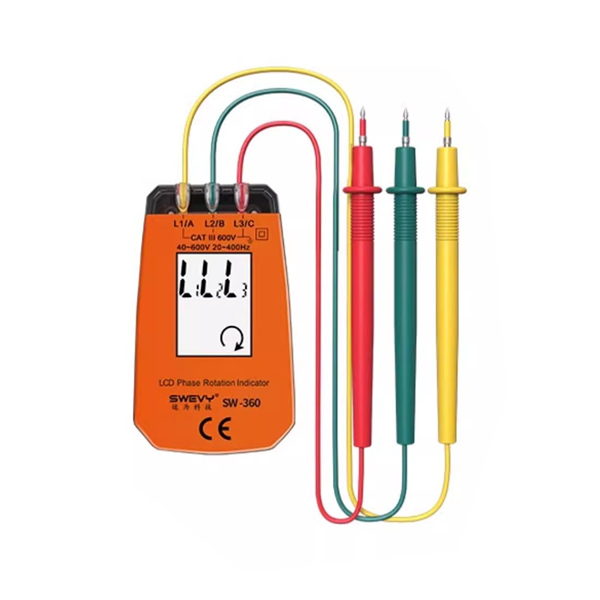

Three phase power tester

$16.00 $0.00
This product is a phase sequence detector, suitable for high-precision power phase loss detection,
Three-phase AC test phase sequence table, simple operation, high precision.
SW-360 LCD 3 Phase rotation indicator
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites
  • Three phase power tester
  • Three phase power tester
1/1
  • Three phase power tester
  • Three phase power tester
  • Description
Three phase power tester

SW-360 LCD 3 Phase rotation indicator
This product is a phase sequence detector, suitable for high-precision power phase loss detection,
Three-phase AC test phase sequence table, simple operation, high precision.

Main parameters:
Display: three-digit LCD display, character height 18MM
Sampling rate: 3 times/second
AC frequency: 20~400HZ
Working voltage range: 40~600V
Working environment: temperature 0~40°℃
Humidity: 0~80%RH
Quiescent current: less than 3mA
Power supply: 3 No. 7 batteries
Dimensions: 116*66*26mm
Wire length: 800mm

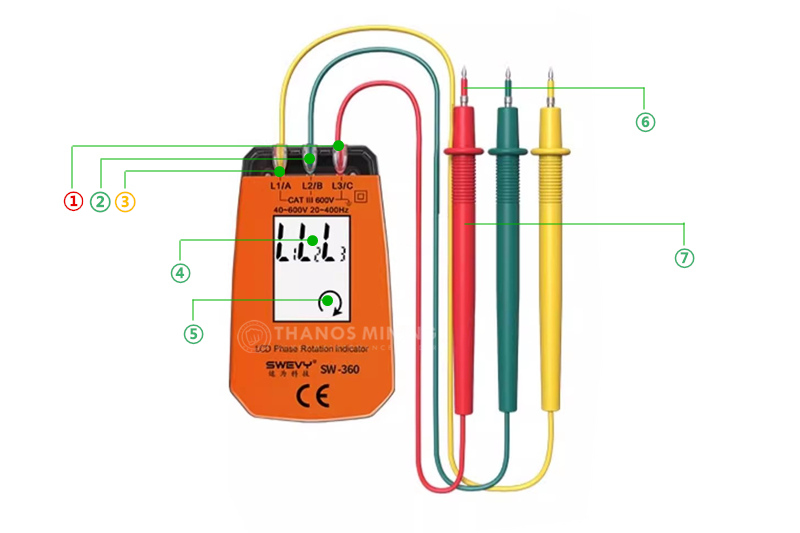

Functional layout description:
①Red corresponds to L3/C phase
②Green corresponds to L2/B phase
③Yellow corresponds to L1/A phase
④LED display
⑤Forward and reverse phase sequence indicator
⑥Probe
⑦High insulation handle


Test result description:
When there is no input or the value is less than 40, the LCD does not display

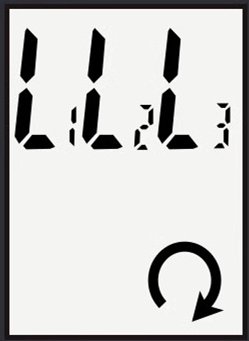

When the three-phase power under test is in the forward phase, the LCD displays as follows

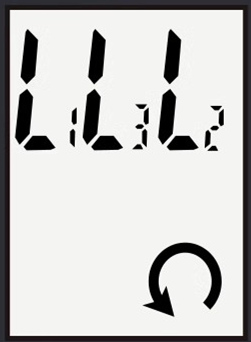

When the three-phase power under test is reverse phase, the LCD displays as follows

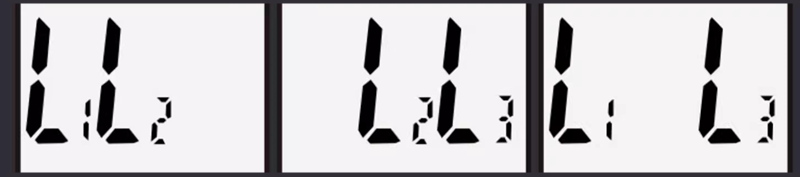

When the three-phase power under test has a phase loss, the LCD displays as follows
