Description

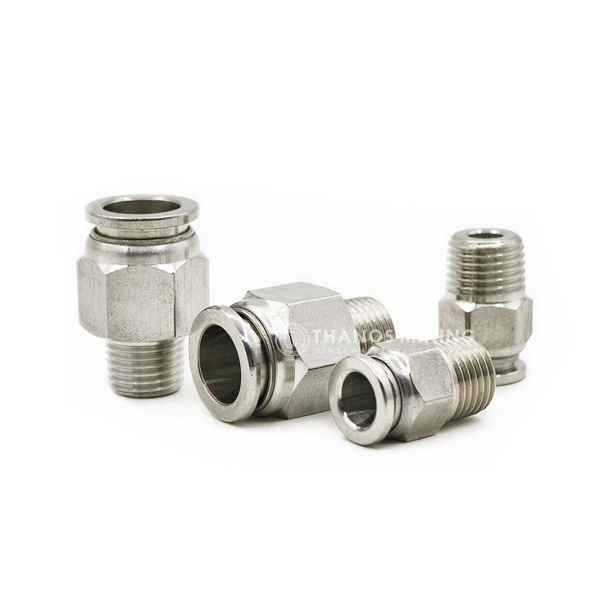

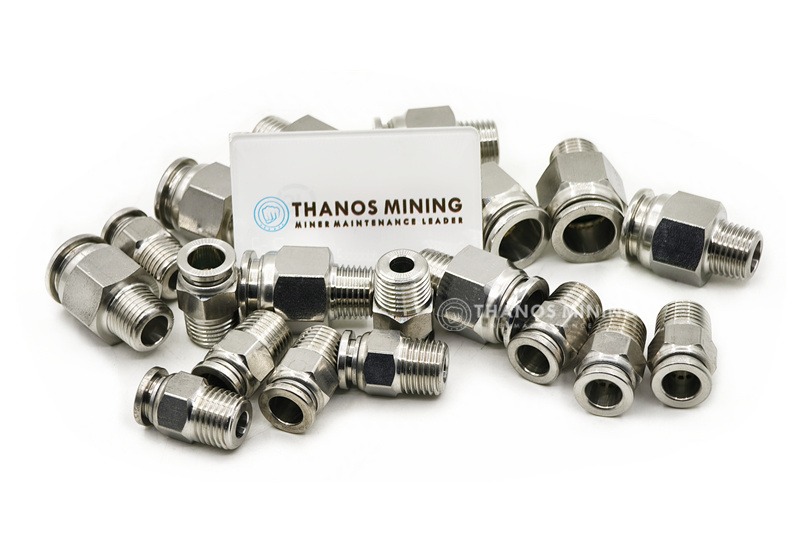

Stainless steel miner water cooling connector series

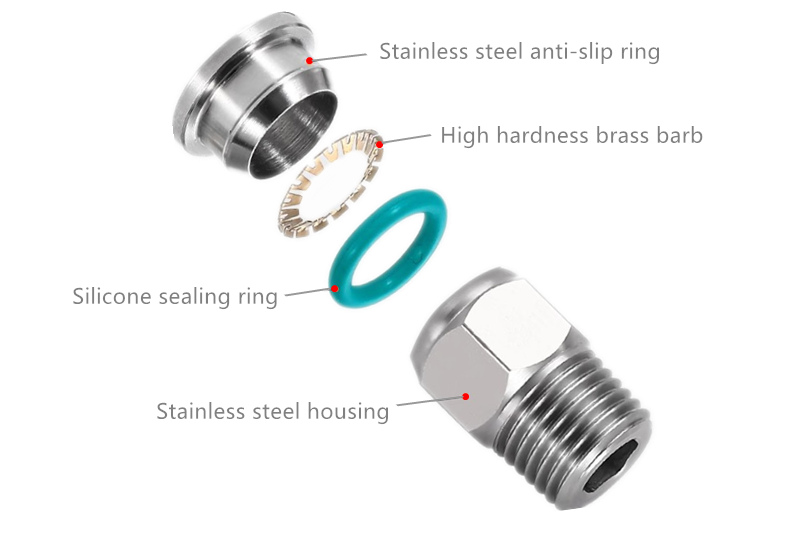

This product is made of stainless steel as a whole, including the pressure ring, which is also made of stainless steel.
Unlike other plastic pressure ring connectors, stainless steel has better durability and stability.
The stainless steel pressure ring will not age due to high water temperature, eliminating the risk of leakage.
The brass barb and silicone sealing ring are used inside to further improve its stability.
This product needs to be used with raw tape or waterproof sealant.
There are many models of quick-plug connectors, and the specifications are as follows:
PC8-01 (tube outer diameter 8mm, Inch thread 1/8) 1 point
PC8-02 (tube outer diameter 8mm, Inch thread 1/4) 2 point
PC8-03 (tube outer diameter 8mm, Inch thread 3/8) 3 point
PC8-04 (tube outer diameter 8mm, Inch thread 1/2) 4 point
——————————
PC10-01 (tube outer diameter 10mm, Inch thread 1/8) 1 point
PC10-02 (tube outer diameter 10mm, Inch thread 1/4) 2 point
PC10-03 (tube outer diameter 10mm, Inch thread 3/8) 3 point
PC10-04 (tube outer diameter 10mm, Inch thread 1/2) 4 point
——————————
PC12-01 (tube outer diameter 12mm, Inch thread 1/8) 1 point
PC12-02 (cannula outer diameter 12mm, Inch thread 1/4) 2 point
PC12-03 (cannula outer diameter 12mm, Inch thread 3/8) 3 point
PC12-04 (cannula outer diameter 12mm, Inch thread 1/2) 4 point
——————————
PC16-02 (cannula outer diameter 16mm, Inch thread 1/4) 2 point
PC16-03 (cannula outer diameter 16mm, Inch thread 3/8) 3 point
PC16-04 (cannula outer diameter 16mm, Inch thread 1/2) 4 point
PC16-06 (cannula outer diameter 16mm, Inch thread 3/4) 6 point

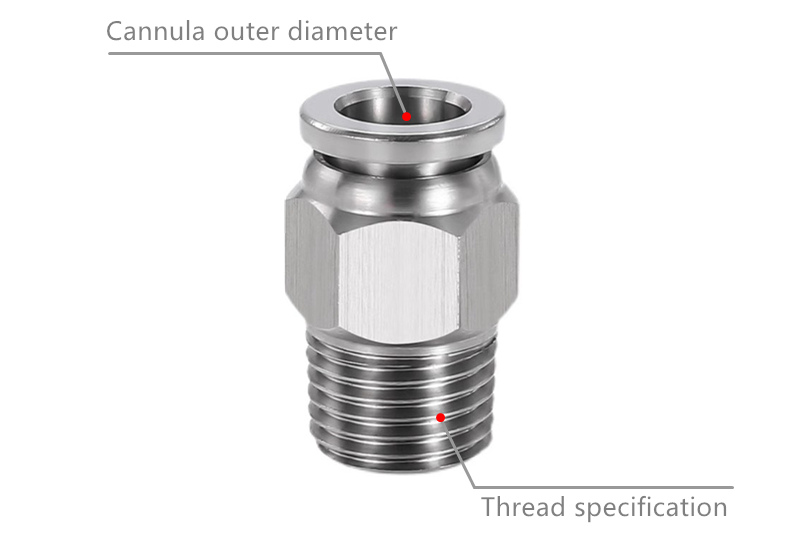

The outer diameter of the insertion tube refers to: the diameter of the pressure ring and waterproof ring,
corresponding to the diameter of the water pipe suitable for insertion.
Thread specification: British thread specification
