Soldering gun FR-301

$335.00 $0.00
Soldering torch FR-301 is an anti-static electric soldering torch, suitable for de-tinning of electronic components in dense or narrow spaces on hash boards and control boards, equipped with high-precision temperature control function
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Description

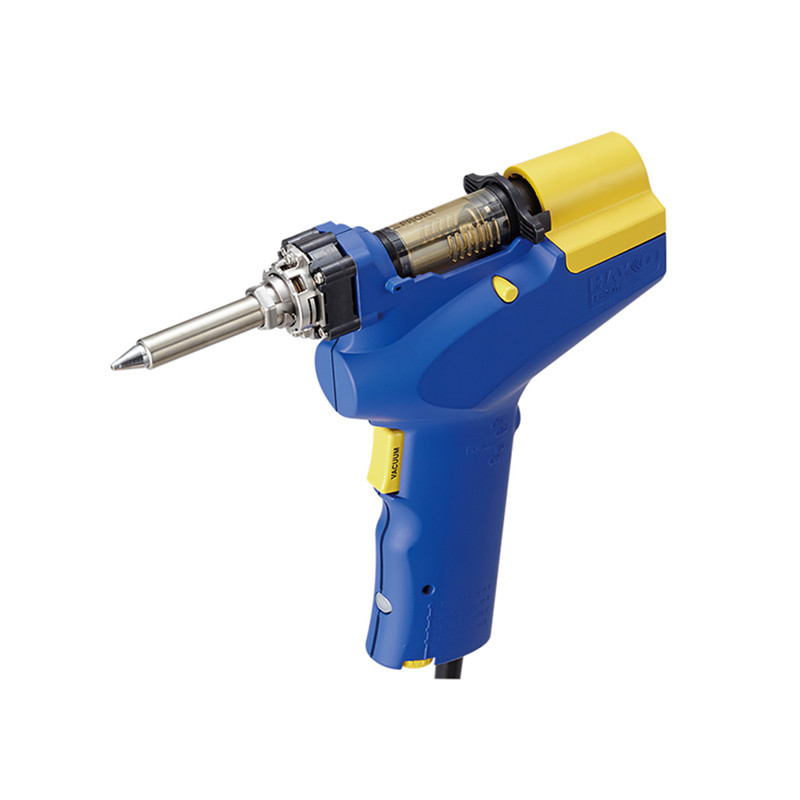

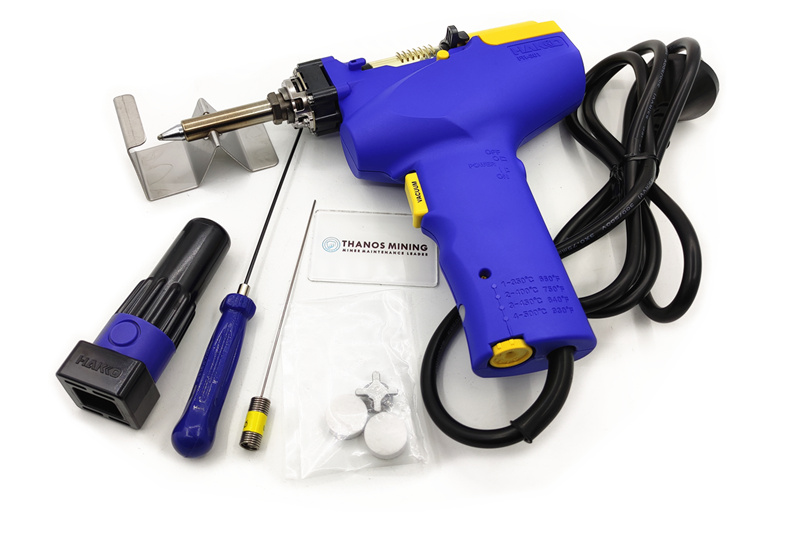

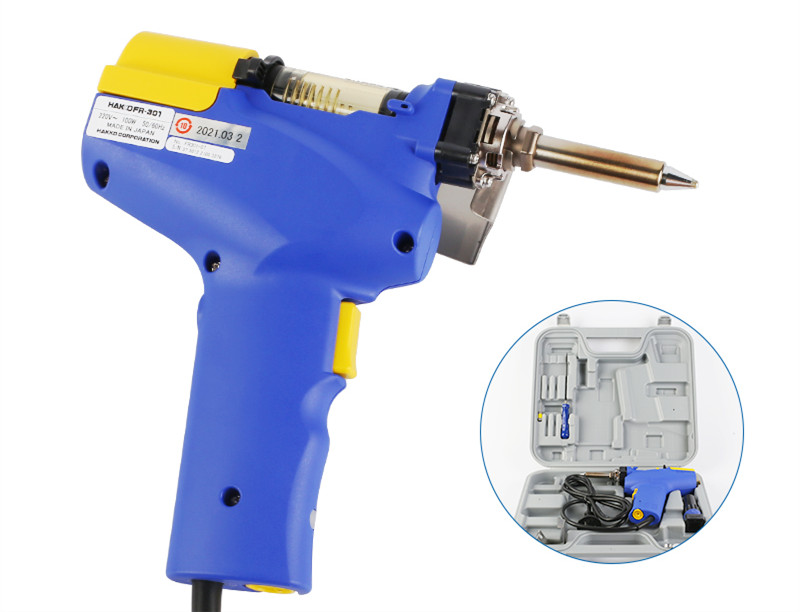

Soldering gun FR-301

Soldering gun FR-301 is an anti-static electric tin soldering gun, suitable for de-tinning of electronic components in dense or narrow spaces on hash boards and control boards, equipped with a high-precision temperature control function, and adopts HAKKO's unique sensor feedback control method.
Easy temperature control CAL to achieve fine temperature adjustment.
LED indicators to make it easy to see when the heater is active and idle at your temperature setting, and it has preset temperature settings. The adjustable dial on the handle makes it easy to control the temperature.
There is a nozzle holder, which ensures no accidental operation when using the hot parts of the tool. Large-capacity filter tube, the sucked solder is stored in the filter tube, the capacity of the filter tube is 3 times that of previous products, and the solder of large solder joints can also be easily absorbed.
A nozzle replacement wrench is an easier way to quickly remove the nozzle for cleaning or replacement (the nozzle and heater area are very hot, please handle them with care).

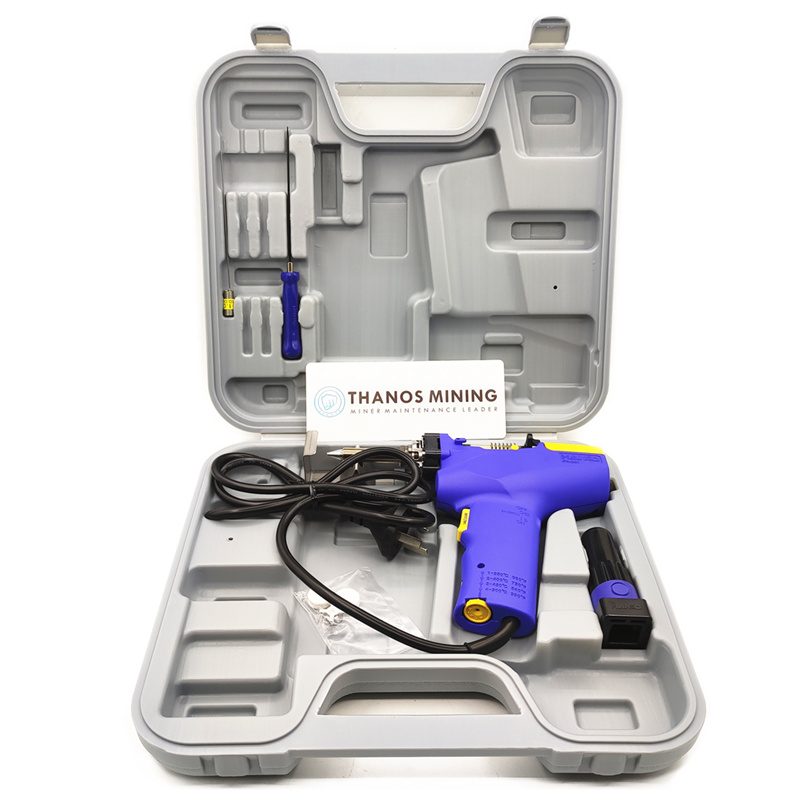

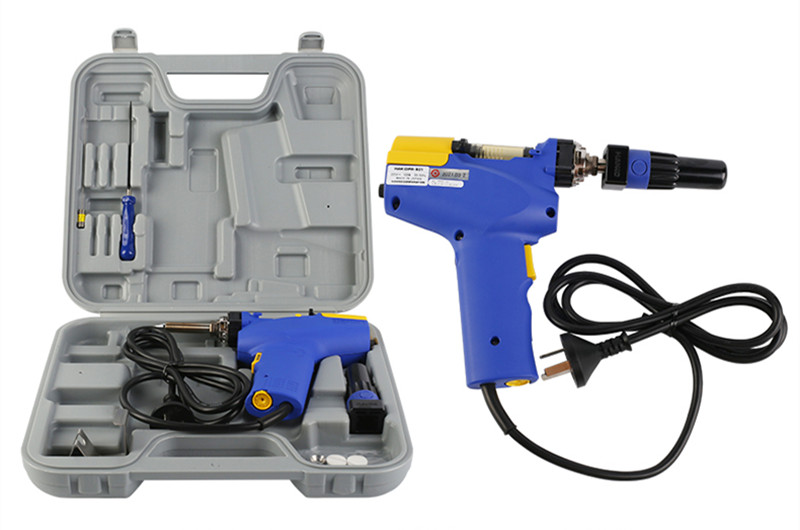

Equipped with a professional toolbox to effectively protect the equipment.


Handy desoldering tool
Four new features to improve operability and efficiency.
1. Quick change nozzle system provides speed and safety.
The new quick-change nozzle system provides a safer and easier way to quickly remove nozzles for cleaning or replacement, even when equipment is hot.

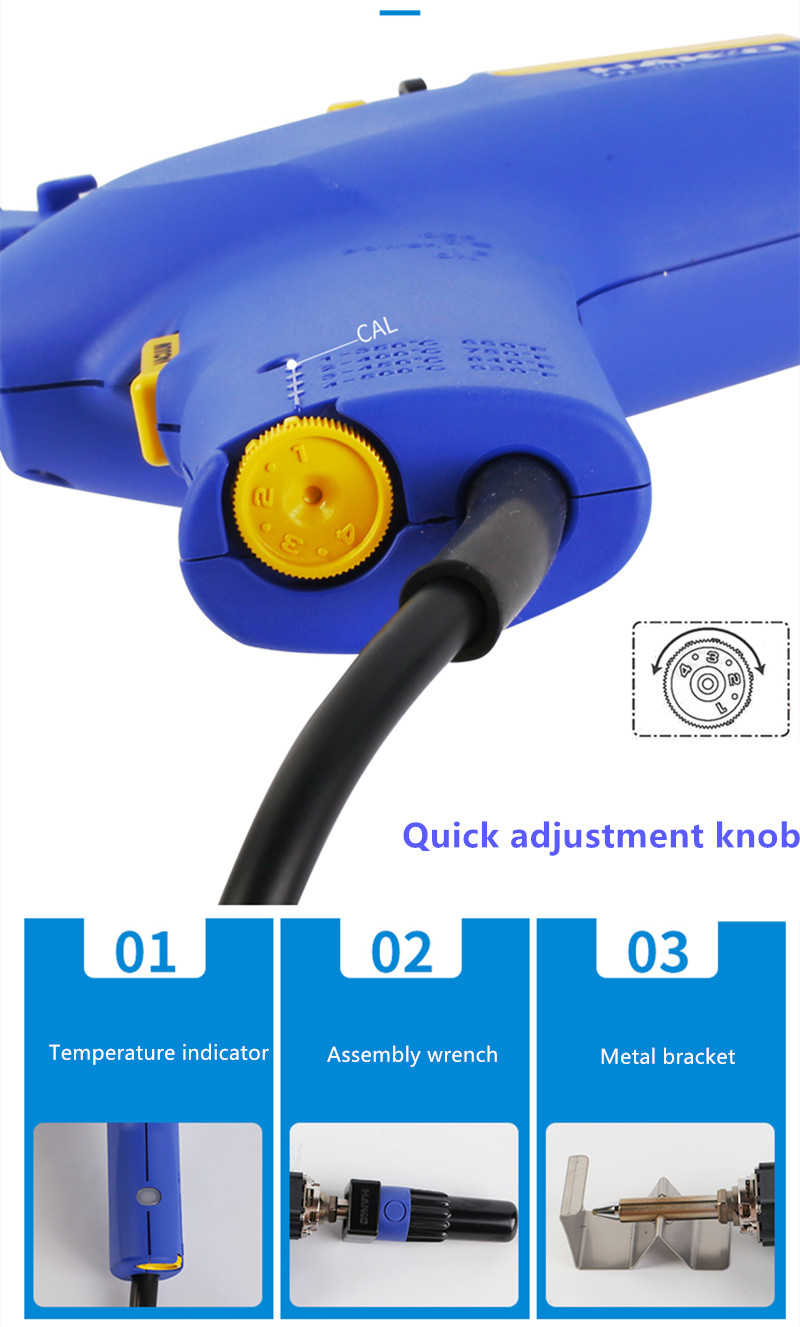

2. Dial control for easy temperature selection
A dial integrated into the handle makes it easy to adjust temperature settings without the need for additional tools.
Setting 1: 350 degrees Celsius
Setting 2: 400 degrees Celsius
Setting 3: 450 degrees Celsius
Setting 4: 500 degrees Celsius
LED indicators make it easy to see when the heater is active and idle at your temperature settings.
3. Calculate the weight balance
The motor, pump, and temperature control circuit are optimally positioned within the body to ensure good balance when holding the gun.
4. Integrated power switch
Positioning the power switch on the handle makes it easy to turn the tool on and off and saves you from having to unplug it when you want to turn it off.



Compliant with human-grip design, flexible operation and ease of use.



Layout description:
1: heating element
2: Filter
3: Air pump cover
4: suction nozzle
5: Protective sleeve assembly
6: Connection components
7: Release button
8: Power plug
9: Trigger
10: Power switch
11: LED lights
12: CAL
13: Thermostat
