This product integrates offline programming, online programming, and chip read/write functions,
suitable for reading, copying, and writing PICs for APW12 and APW17 series power supplies.
RX-180 Universal Programmer Offline Programmer Miner PSU Compatible

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

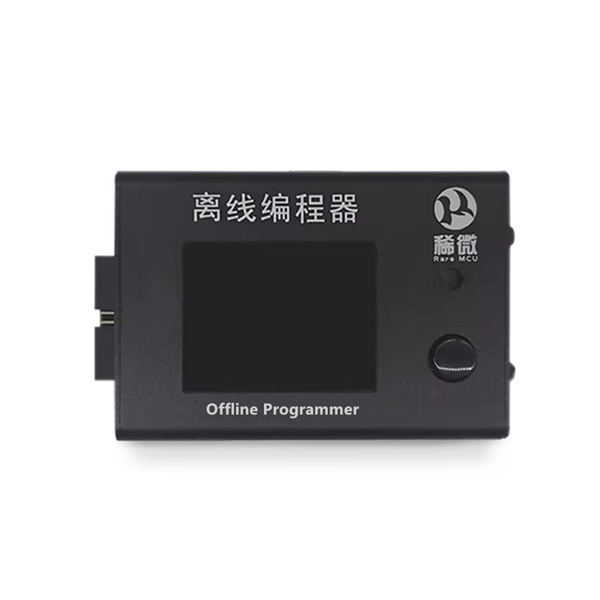

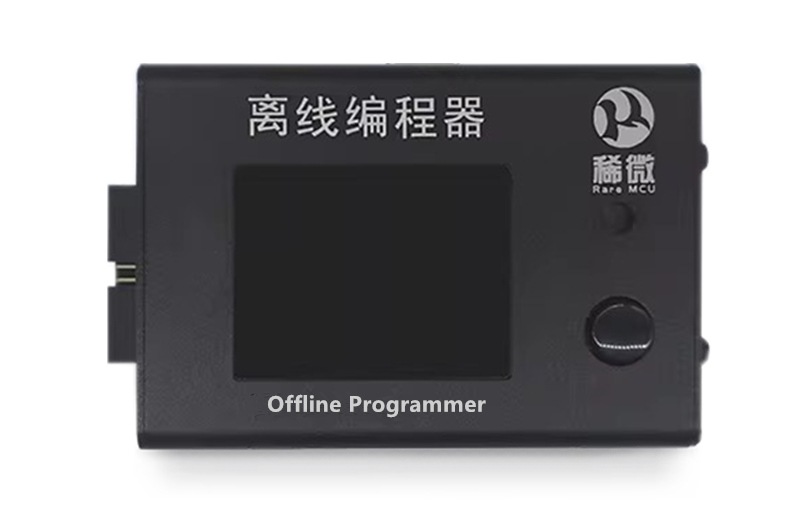

RX-180 Universal Programmer Offline Programmer Miner PSU Compatible

This product integrates offline programming, online programming, and chip read/write functions,
suitable for reading, copying, and writing PICs for APW12 and APW17 series power supplies.
It can be programmed independently without a computer and is compatible with multiple chips.
It supports the entire PIC series (PIC10/12/16/18/24/32, etc.),
some Atmel AVR/ATSAM, Renesas RL78/R7FA, etc.,
covering mainstream 8/16/32-bit MCUs.

Integrated read/write verification: Supports program reading (backup), erasing, programming,
verification, and configuration bit (fuse) read/write; supports mainstream firmware formats, such as .hex/.bin/.s19.
High stability: Hardware overcurrent/overvoltage protection; fast programming speed;
supports batch automatic programming (programming can be done when replacing chips), reducing labor costs.

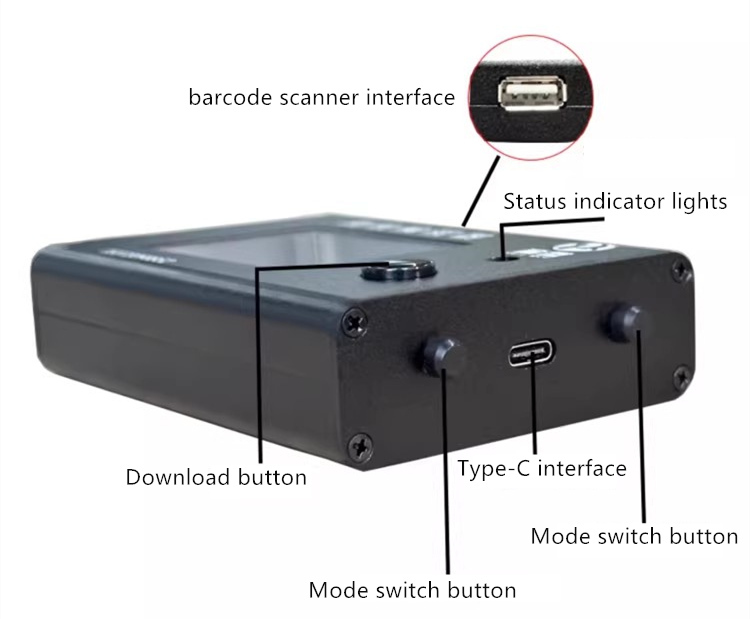

Compact design; USB power supply/external power supply dual mode; button + LED status indicator; low learning curve.

UART: Standalone UART; can communicate with a PC via protocol for automated programming.
Adjustable communication speed: Up to 20MHz, comparable to LINK-V9.
Rich online functions: such as online flash read/erase, verification, and online read/write option bytes.
Supports the vast majority of chips on the market; we will strive to program all chips.
Supports 128 different programs, selectable via buttons.
Supports simultaneous firmware programming from multiple images:
One image can simultaneously program firmware to 10 different addresses,
effectively eliminating the need for multiple programming sessions.

Supports specified address programming: Users can add custom data (hardware/software version information,
identification information, production date, font library, etc.) as a file to the host, specify the programming address,
and configure it along with the chip program in the programmer to program all data to the chip at once.
Supports multiple erasure methods: chip erase, sector erase, or no erase.
Supports data verification: Ensures the accuracy of data programmed into the chip.
Supports read protection settings: Supports multi-level protection.
Supports automatic read protection removal: Removes read protection from the chip before downloading.
Supports automatic start/stop programming:
Automatically downloads when the offline programmer detects the target chip and automatically stops after programming is complete.
Supports manual burning: Press the button to start burning.
Supports TFT screen/LED/buzzer: Supports multiple display formats for easy monitoring of programming progress.
Supports multiple voltage outputs: Supports 3.3V and 5V output.
Supports automatic programming interface for automated programming.
Can limit the number of programming attempts, making program downloads easier to manage.
Supports HEX, BIN, S19, and other program formats.

Supports remote firmware upgrades for convenient future version maintenance and updates.
The host supports bilingual display in Chinese and English.

Product Parameters: Product Name: Offline Programmer RX-180
Product Dimensions: 99mm * 70mm * 25mm (L * W * H)
Product Voltage: DC 5V
Product Power Consumption: 50mA@5V~200mA@5V
Functional Parameters:

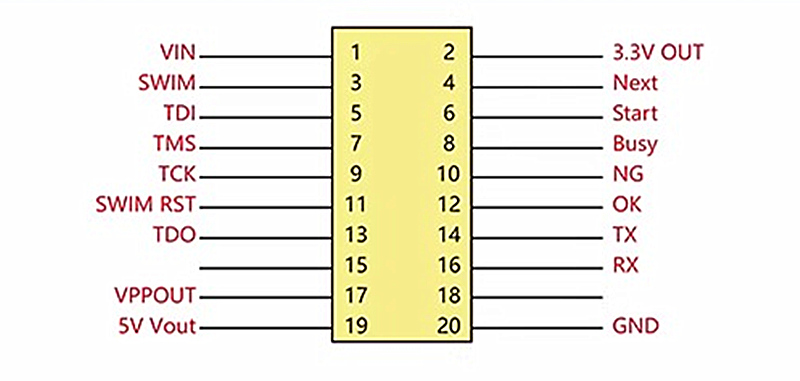

Interface Protocols: JTAG, SWD, SPIIC, BDMSWIM, ISPICP, CANLIN and other programming interfaces
