RIGOL DHO814 Oscilloscope 100MHz Quad Channel

$420.00 $0.00
High resolution digital oscilloscope
4096-level high-quantization 12-bit
Supports USB/LAN/HDMI interfaces for wider screen viewing and clearer observation
RIGOL DHO814 Oscilloscope 100MHz Quad Channel
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites
  • RIGOL DHO814 Oscilloscope 100MHz Quad Channel
  • RIGOL DHO814 Oscilloscope 100MHz Quad Channel
1/1
  • RIGOL DHO814 Oscilloscope 100MHz Quad Channel
  • RIGOL DHO814 Oscilloscope 100MHz Quad Channel
  • Description

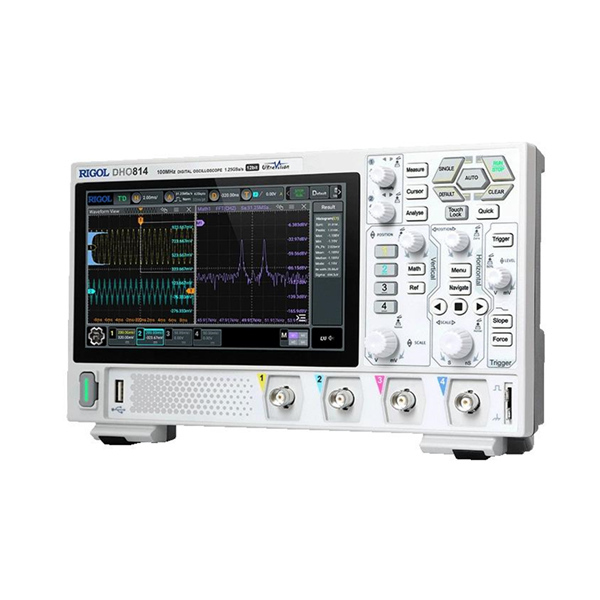

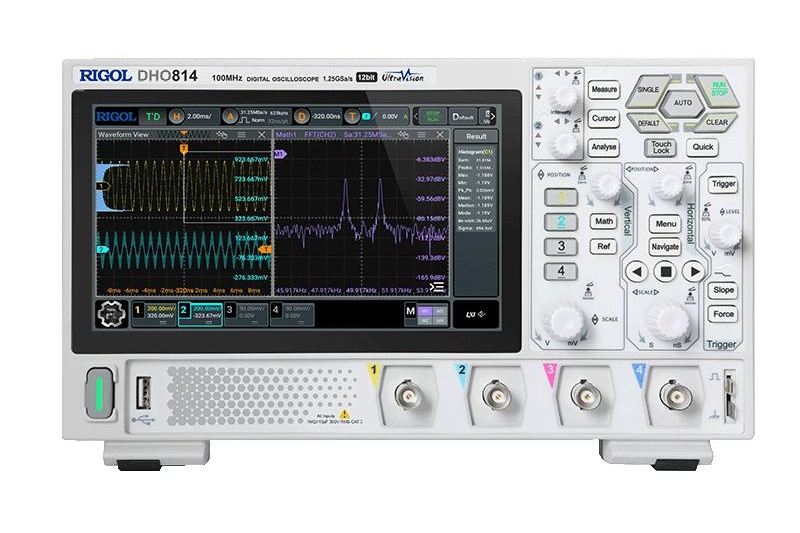

RIGOL DHO814 Oscilloscope 100MHz Quad Channel

High resolution digital oscilloscope
4096-level high-quantization 12-bit
Equipped with a Centaurus analog front-end ASIC for ultra-low noise operation
Supports Webcontrol web interface and SCPI command-line operation
Supports USB/LAN/HDMI interfaces for wider screen viewing and clearer observation
Model RIGOL DHO814
Number of Analog Channels 4
Analog Bandwidth (-3dB) 100MHz
Rise Time (10%~90%, Typical) ≤3.5 ns
Vertical Resolution 12 bit
Sampling Method Real-time sampling
Hardware Real-time Waveform Recording and Playback Up to 500,000 frames
Peak Detection Captures glitches as narrow as 1.6ns
Display Size and Type 7-inch multi-touch capacitive screen
Display Resolution 1024*600
Maximum analog channel sampling rate 1.25 GSa/s (single channel 1), 625 MSa/s (all channels 3) 1.25 GSa/s (single channel 1),
625 MSa/s (dual channel 2), 312.5 MSa/s (all channels 3)
Maximum storage depth 25 Mpts (single channel 1), 10 Mpts (full channel 3)
25 Mpts (single channel 1), 10 Mpts (dual channel 2), 5 Mpts (full channel 3)
50 Mpts (single channel 1), 25 Mpts (dual channel 2), 10 Mpts (full channel 3)
Maximum waveform capture rate 30,000 wfms/s (Vector Mode)
1,000,000 wfms/s (UltraAcquire Mode)




Embedded design protocol analysis:

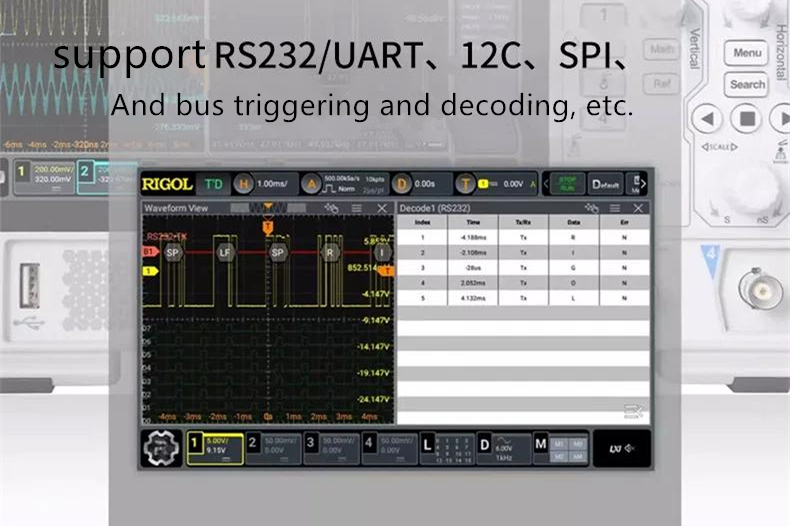

Supports RS232/UART, I2C, SPI, and other bus triggering and decoding.

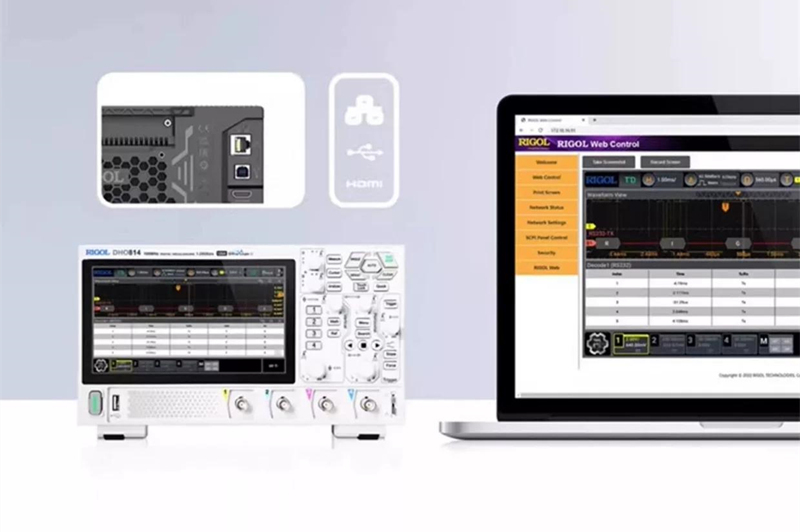

The entire system supports Webcontrol web page operation and standard SCPI command operation.

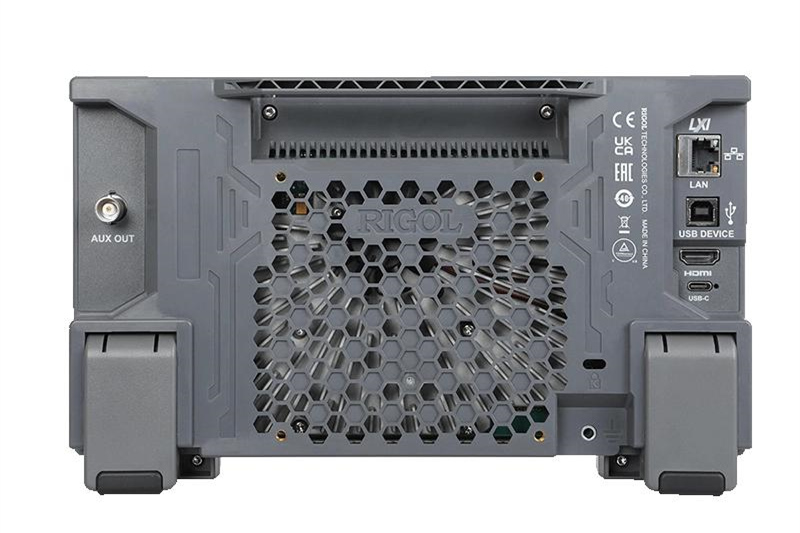

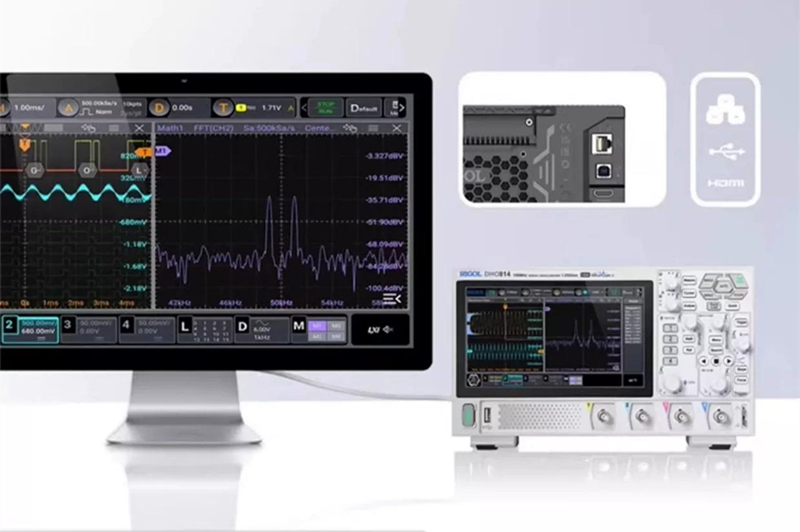

Configure USB/LAN/HDMI ports for a clearer screen viewing experience.

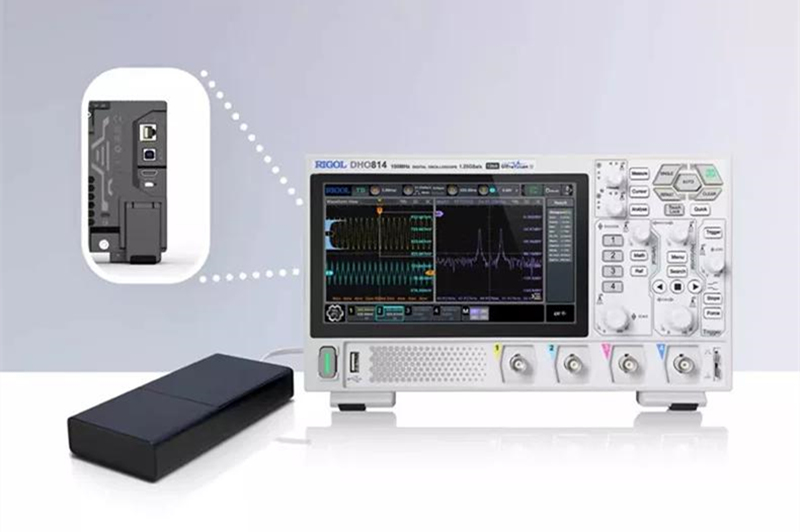

Standard Type-C PD power supply (power banks, portable chargers, etc.)


Portable design, suitable for various work scenarios.

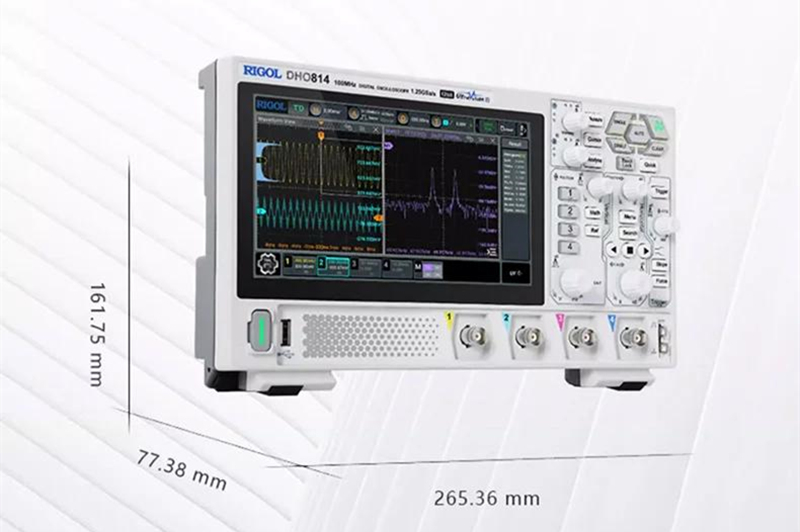

Dimensions: 265.36mm (W) x 161.75mm (H) x 77.38mm (D)
Weight: 1.78 kg (excluding packaging)
Weight (including packaging): 3 kg
