Name: PCB Character Inks
Brand: THANOS MINING
Price: 3.9 USD
Availability: InStock

WhatsApp for Sales Service: 8619936403319

Your position: Home > Repair Tools / Parts > PCB Character Inks

1/1

PCB Character Inks

$3.90

Viscosity: 25℃ 200±50ps
Hardness: ≥5H
Fineness: ≤12n
Adhesion: 100/100
Heat resistance: 260±5℃ 10 seconds twice
Insulation resistance: normal > 1×1013
Curing conditions: high pressure mercury lamp 80W/cm×3

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

Description

Tips:
Due to DHL, UPS, FedEx express company's restrictions on the types of items shipped, liquid and paste products cannot be shipped by DHL, UPS, FedEx, they will be delivered by other special shipping methods alone, and the delivery time is about 15- 40 days. For other requirements, please contact the pre-sales service via WhatsApp.

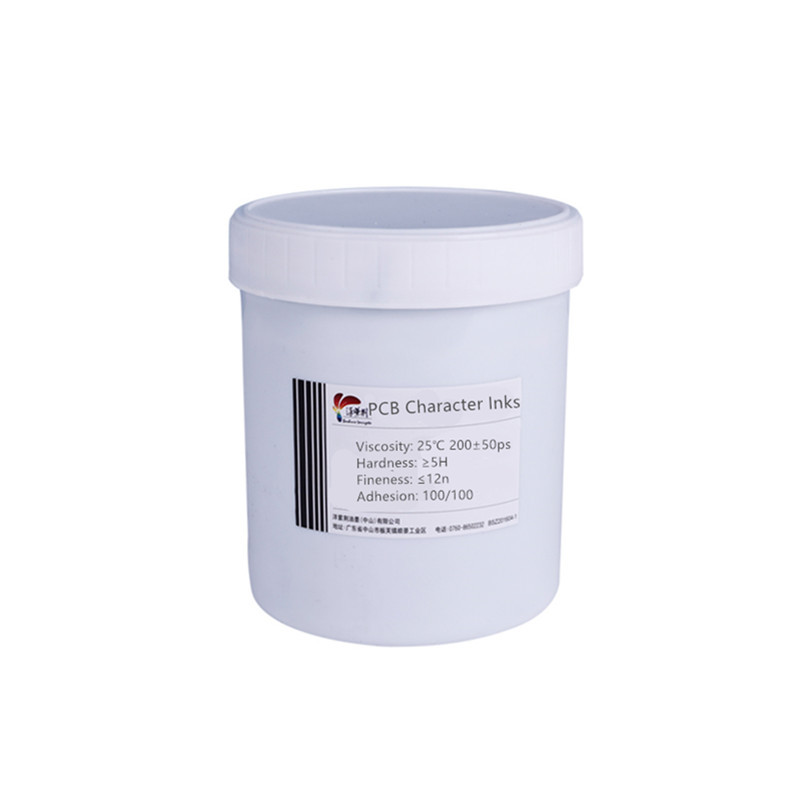

PCB Character Inks

Color: white

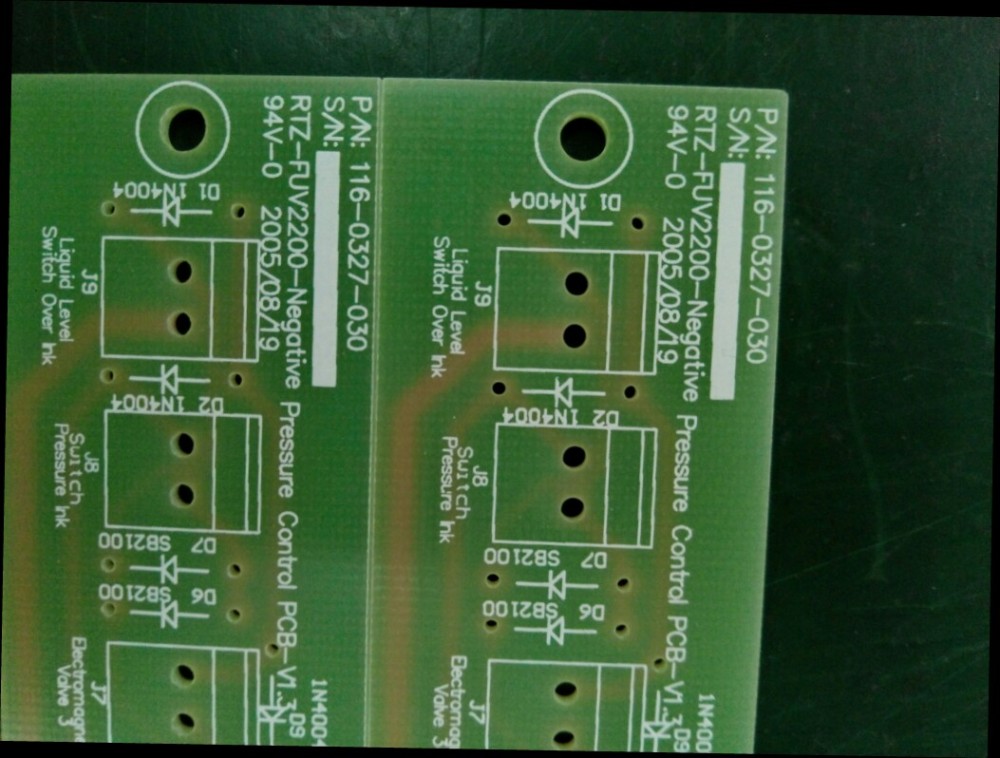

Ultraviolet light-curing PCB text ink, with good network performance, fast curing speed, strong adhesion, chemical resistance and insulation, suitable for printed circuit boards and text marks coated with ultraviolet light.
Viscosity: 25℃ 200±50ps
Hardness: ≥5H
Fineness: ≤12n
Adhesion: 100/100
Heat resistance: 260±5℃ 10 seconds twice
Insulation resistance: normal > 1×1013
Curing conditions: high pressure mercury lamp 80W/cm×3
Chemical resistance:
10% HCl solution at room temperature for 1 hour without change
10% NaOH solution at room temperature for 1 hour without change
Storage: Temperature 22±2℃, Humidity 55±5%RH, avoid light for one year
Note: Stir well before use
Special Note: When this ink is used, it cannot be diluted.
Net content: 100g
