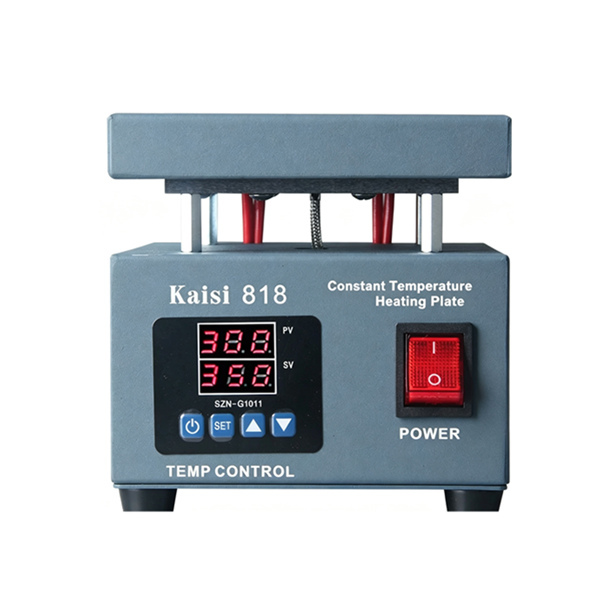

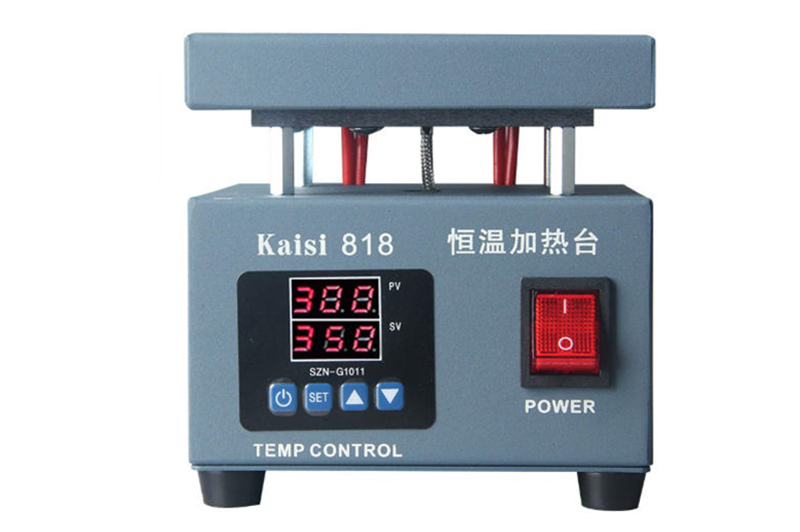

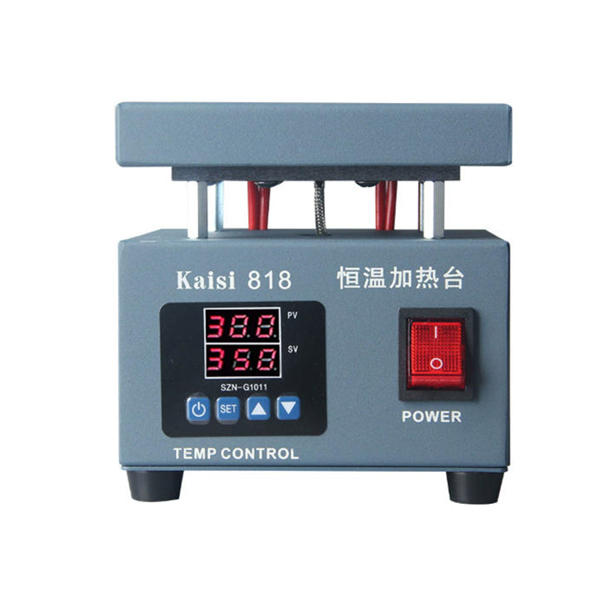

Kaisi 818 Constant‑Temperature Heating Station
Kaisi 818 is a digital‑display constant‑temperature heating platform widely used in electronics repair, laboratory pre‑heating and component desoldering. It features precise temperature control, even heating and compact size, ideal for technicians, hobbyists and small‑batch lab work.
Main Features
1. Accurate temperature control: Adjustable temperature range from 1℃ to 450℃ with digital LED readout for real‑time temperature monitoring.
2. Uniform heating plate: 100 × 100 mm thickened aluminium heating surface (13 mm thickness), delivers consistent heat without easy deformation under high temperature.
3. Safety protection: Built‑in dual‑fuse safety mechanism to prevent burnout; high‑temperature resistant internal components for stable long‑time operation.
4. Compact structure: Small footprint, easy to place on workbench, simple power‑on‑and‑use operation.
Typical Applications
‑ Desolder LED lamp beads
‑ Pre‑heat & disassemble PCB boards, chips
‑ Mobile phone frame / screen separation
‑ Small‑scale chemical and model‑making laboratory heating experiments

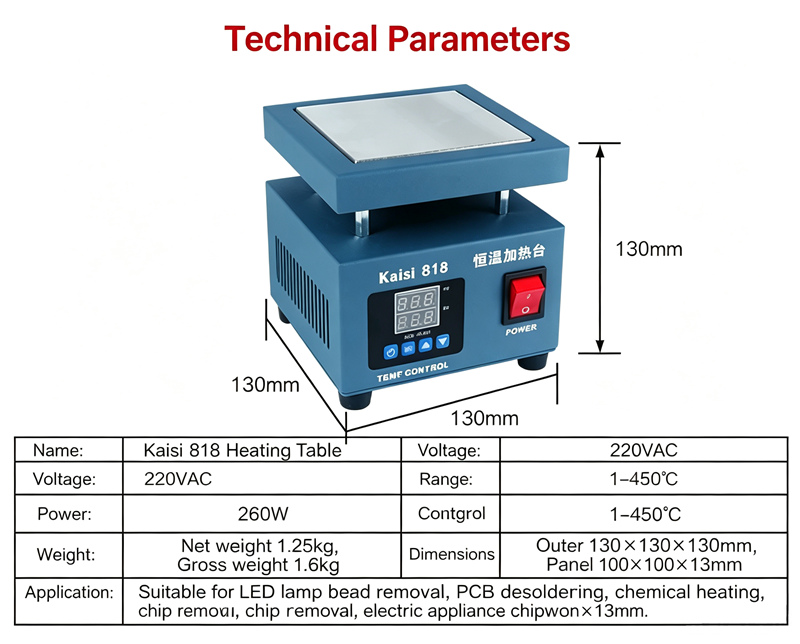

Specifications
‑ Model: Kaisi 818
‑ Input Voltage: AC 220V
‑ Rated Power: 260W
‑ Heating Plate Size: 100 × 100 × 13 mm
‑ Temperature Range: 1‑450℃
‑ Net Weight: approx.1.6 kg
Notes
‑ The heating plate becomes extremely hot during operation. Avoid direct contact to prevent burns.
‑ Do not operate continuously above 450℃ to extend equipment service life.
‑ Power off and wait for full cooling before moving or cleaning the unit.

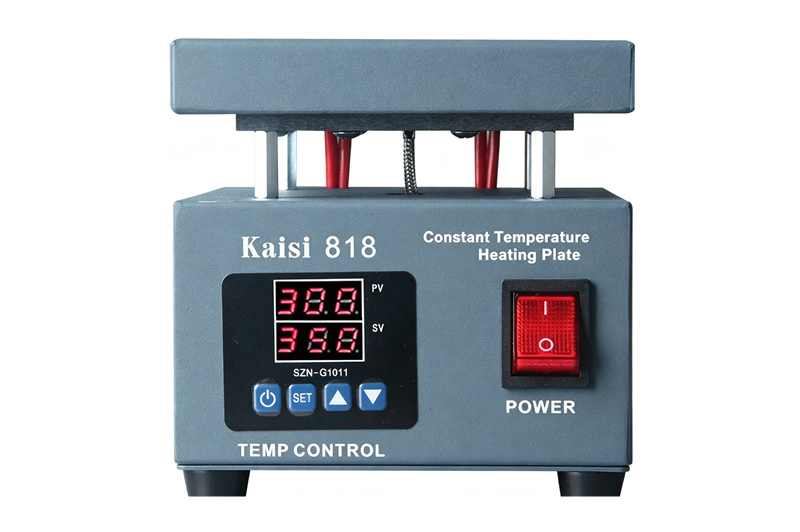

Digital Temperature‑Control PanelDual digital display:PV (Process Value): Shows real‑time actual temperatureSV (Set Value): Shows preset target temperature

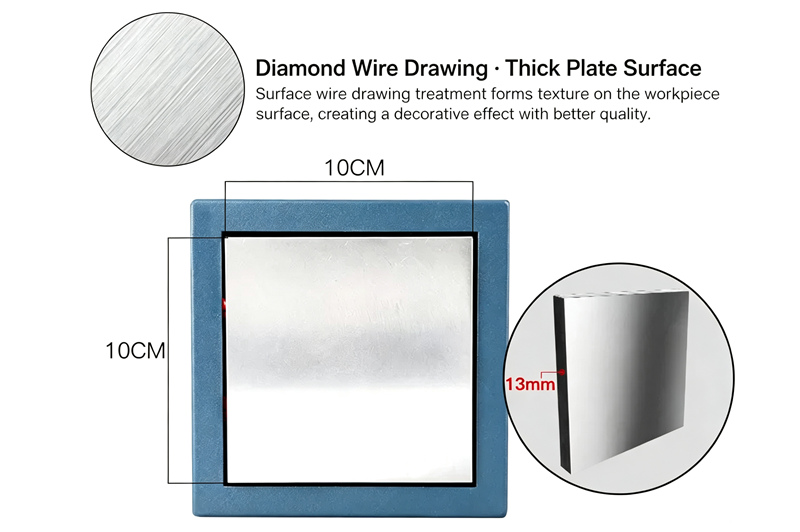

The 10cm x 10cm heating plate is suitable for repairing various medium and small circuit boards and has wide compatibility.

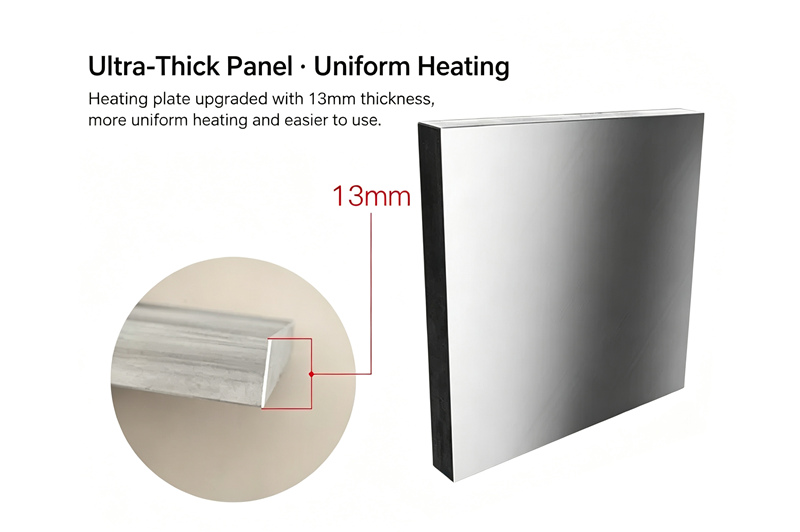

The thickened 13mm aluminum plate features uniform heating and a stable heat area.
