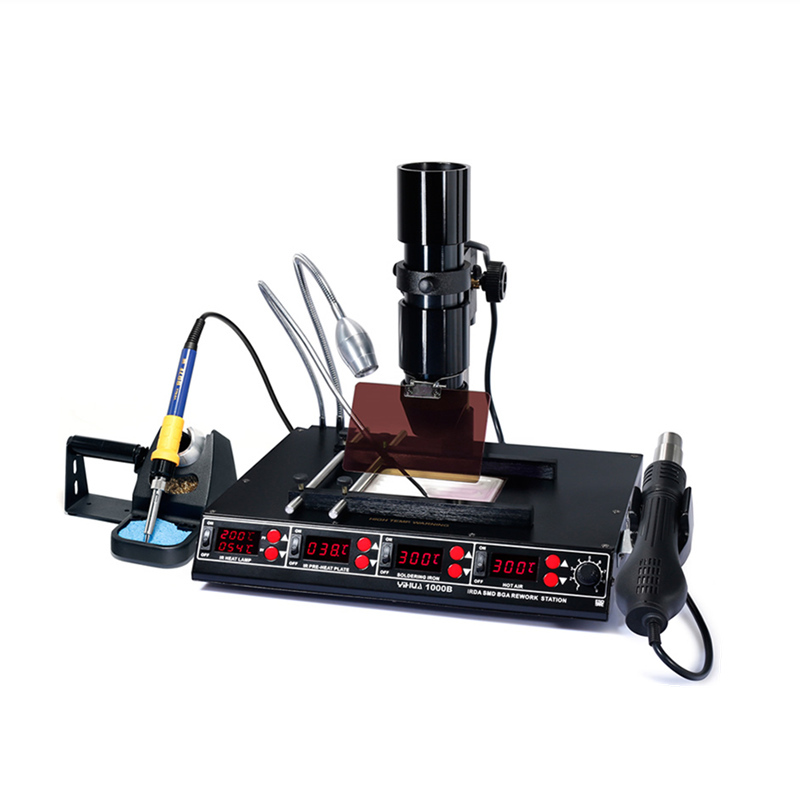

Infrared BGA desoldering station

$510.00 $0.00
Power supply voltage: AC 200-220V
Power: 750W
Display mode: LED display
Infrared heating: 100°-350°
Preheating table heating: 50°-200°
Air gun temperature range: 200°-480°
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites
  • Description
Infrared BGA desoldering station
（YIHUA）

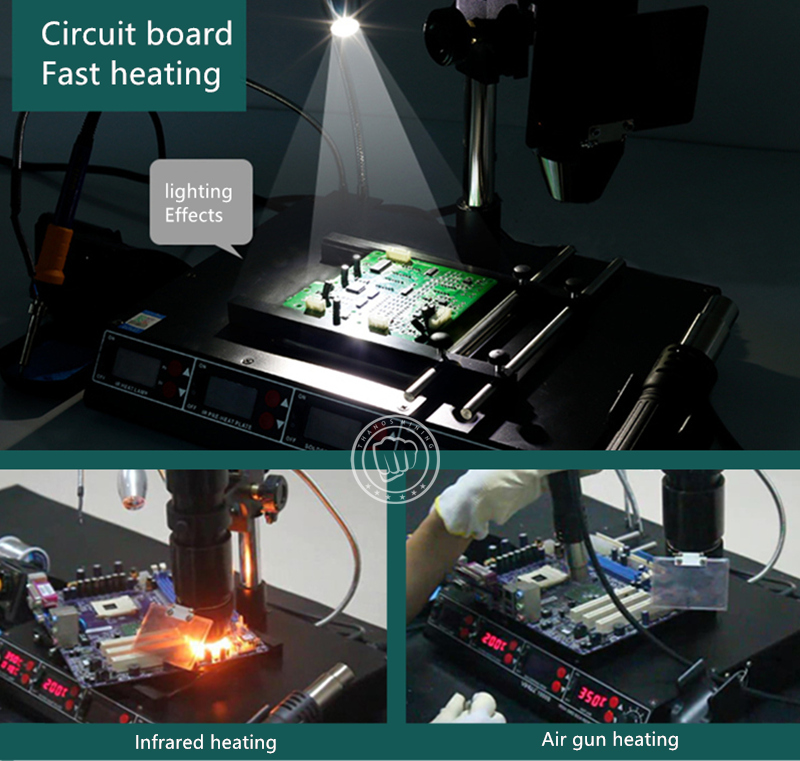

BGA desoldering can first use the preheating table to heat the circuit board,
Set the preheat station temperature close to the melting point of the solder joint,
However, it cannot exceed the melting point and temperature resistance range of electronic components.
After preheating for a period of time, use infrared rays or a heat gun with a temperature higher than the melting point to heat the electronic components, and the BGA desoldering can be easily completed.

Compared with the traditional contact BGA desoldering station, the infrared desoldering station has the following advantages:
1: Avoid high temperature damage caused by direct contact with the chip.
2: The heating is more uniform, the heating area is larger, and the medium and large IC chips are easy to disassemble.
3: Quick start, no need to wait.


Visit YouTube: https://youtu.be/niyEPCqpV8k



Scope  ——————
Power supply voltage: AC 200-220V
Power: 750W
Body size: L288mm*W360mm*H52mm+5mm
Display mode: LED display
Infrared heating: 100°-350°
Preheating table heating: 50°-200°
Air gun temperature range: 200°-480°
Heating method of preheating table: infrared heating plate + infrared irradiation
Air gun heating method: skeleton ceramic core
Electric soldering iron heating method: ceramic heating core
Fan type: brushless fan/soft wind
Maximum air volume: 130L/min

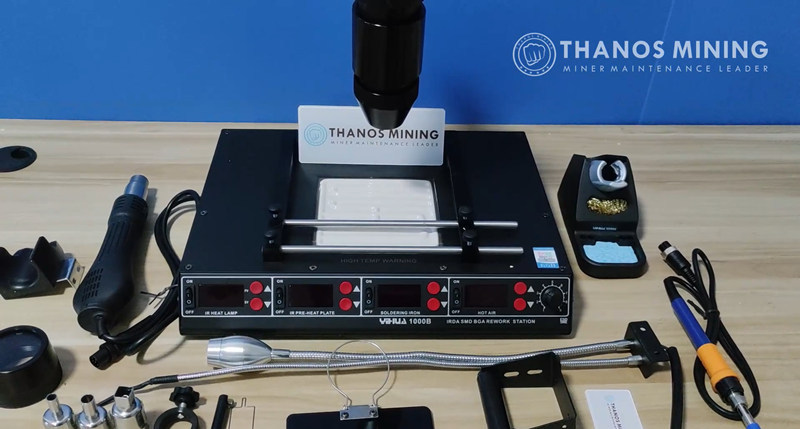

1. Lighting
2. External temperature sensor
3. Electric soldering iron
4. Swivel bracket
5. Goggles
6. Infrared heating emission tube
7. Infrared heating plate
8. Heat gun
9. Infrared temperature regulation
10. Preheating table temperature adjustment
11. Soldering iron temperature adjustment
12. Heat gun temperature adjustment
13. Hot air gun air volume adjustment

Display A——Infrared temperature set value + actual temperature value
Switch button A —— infrared switch
Display B ——preheating table temperature display
Switch button B —— Preheater switch
Display C ——Soldering Iron Temperature Value
Switch button C —— soldering iron switch
Display D —— temperature value of hot air gun
Switch Button D —— Heat Gun Switch



Wide range of application scenarios, suitable for disassembly and assembly of medium or large IC chips. Hash board repair, GPU miner repair, laptop repair, computer motherboard repair, industrial circuit board repair......



Simple operation, bid farewell to tedious work.
