After placing the order, please contact sales service to calculate shipping costs.

Sales Service: WhatsApp / Telegram
Home > Tools / Accessories > High power heavy-duty rocker switch 16A 30A JR-617
  • High power heavy-duty rocker switch 16A 30A JR-617
  • High power heavy-duty rocker switch 16A 30A JR-617
1/1
  • High power heavy-duty rocker switch 16A 30A JR-617
  • High power heavy-duty rocker switch 16A 30A JR-617
Share:

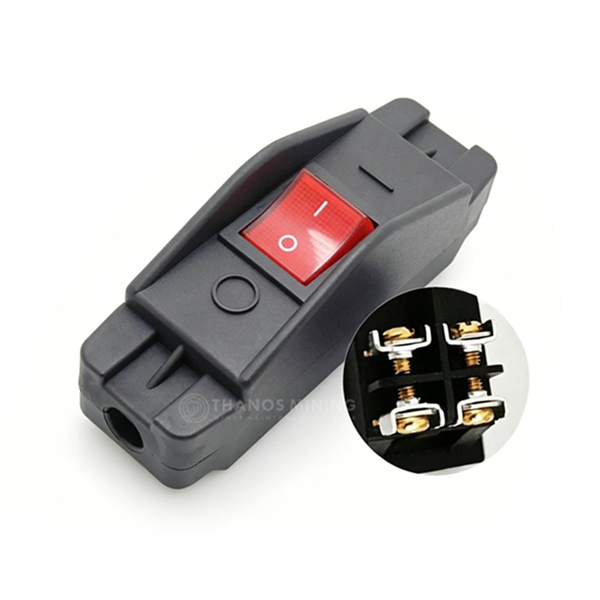

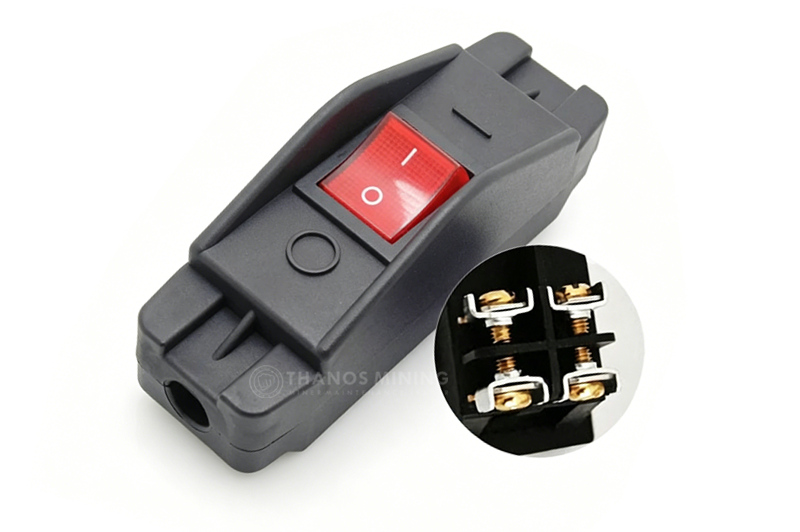

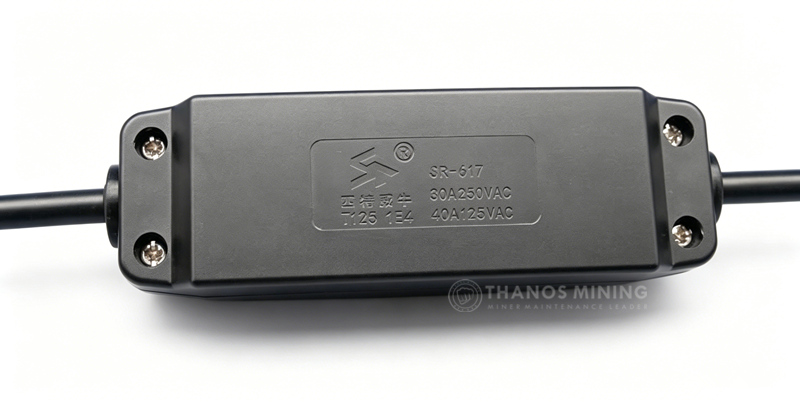

High power heavy-duty rocker switch 16A 30A JR-617

$2.90 $0.00
Suitable for various high-power electrical applications: motors, instruments,
mining machinery, miners, industrial machine tools, repair shops, etc.
High power heavy-duty rocker switch 16A 30A JR-617
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Current/Voltage:
    16A/220V
    30A/250V

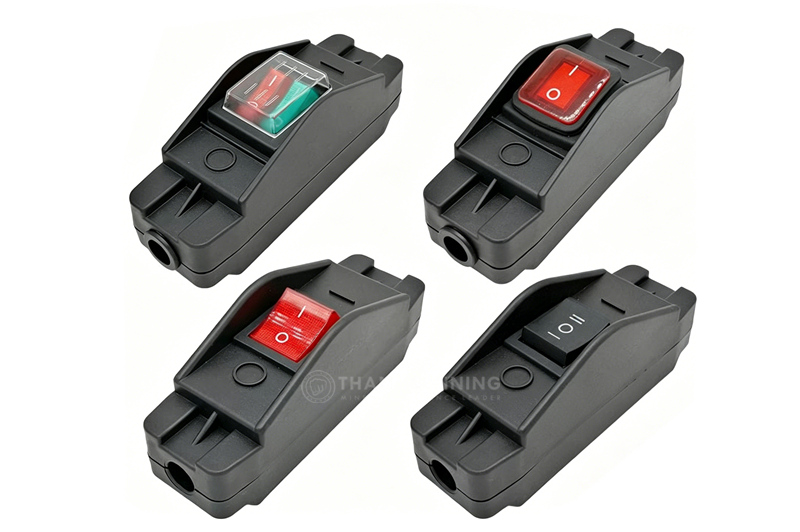

  • Button type:
    Black (no indicator light)
    Red (with indicator light)
    Please select the information you wantX
Quantity:
Add to Favorites
  • High power heavy-duty rocker switch 16A 30A JR-617
  • High power heavy-duty rocker switch 16A 30A JR-617
1/1
  • High power heavy-duty rocker switch 16A 30A JR-617
  • High power heavy-duty rocker switch 16A 30A JR-617
  • Description
High power heavy-duty rocker switch 16A 30A JR-617

This product features a flame-retardant, high-temperature resistant, thickened shell,
offering advantages such as long service life, corrosion resistance, and impact resistance.

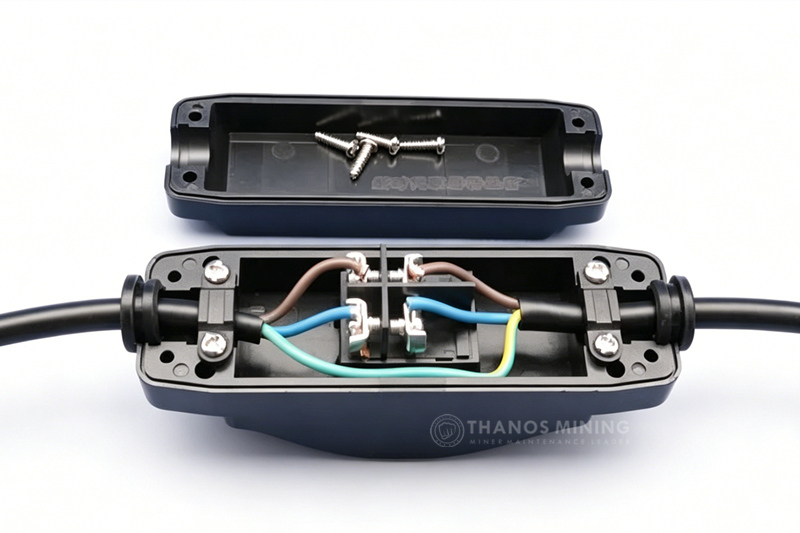

Built-in nut terminals facilitate easy installation.
Suitable for various high-power electrical applications: motors, instruments,
mining machinery, miners, industrial machine tools, repair shops, etc.
Built-in independent double-cutting mechanism ensures complete power disconnection, guaranteeing electrical safety.

Main parameters:
Product Safety Certified by German VDE, American UL, and Chinese CQC.
Product Materials Complies with the latest EU RoHS, REACH, and PAHS environmental standards.
Applicable Power Cords H03VVH2-F 2*0.75mm², H03VVH-F 3*0.75mm², H03VV-F 3*1.0mm², SPT-1/18AWG*2C, SPT-2/18AWG*2C, 2468/24AWG, etc.
Product Dimensions (mm) Length*Height*Width 108*35*44.8
Ambient Temperature -40°C to +85°C
Rated Current & Voltage 16A 250V / 30A 250V
Contact Resistance  0.02Ω
Insulation Resistance 100MΩ
Dielectric Strength 1500VAC/min
Withstand voltage 2500V/5S/0.025mA
Impulse voltage 0.5Nm ± 0.04Nm
Tensive test 30N/min
Service life 100,000 cycles
Flame retardant rating UL94V2



Thickened outer shell, flame-retardant and high-temperature resistant, ensuring maximum safety.
Copper terminals eliminate the risk of high-temperature connections.



Its internal structure is simple and easy to use, without complicated mechanical devices,
thus resulting in a longer service life and more stable performance.


The thickened outer shell is impact-resistant and collision-resistant, ensuring equipment safety.

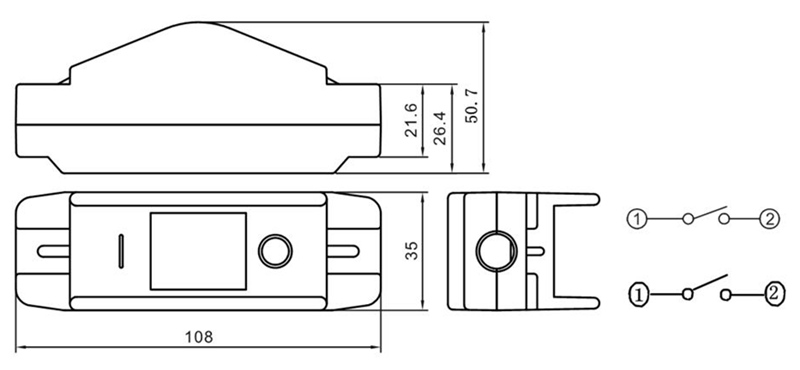

Dimensional diagram:
(The maximum cable diameter that can be inserted at both ends of this product is 11mm)
