Name: Heat Exchanger Miner Oil Cooling Both End
Brand: THANOS MINING
Price: 69 USD
Availability: InStock

WhatsApp for Sales Service: 8619936403319

Your position: Home > Tools / Accessories > Heat Exchanger Miner Oil Cooling Both End

1/1

Heat Exchanger Miner Oil Cooling Both End

$69.00

The heat exchanger is the most critical component in the mining oil cooling system. Under the same power consumption and the same oil pump speed, the energy consumption of high-quality products is nearly 60% higher than that of inferior products.

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

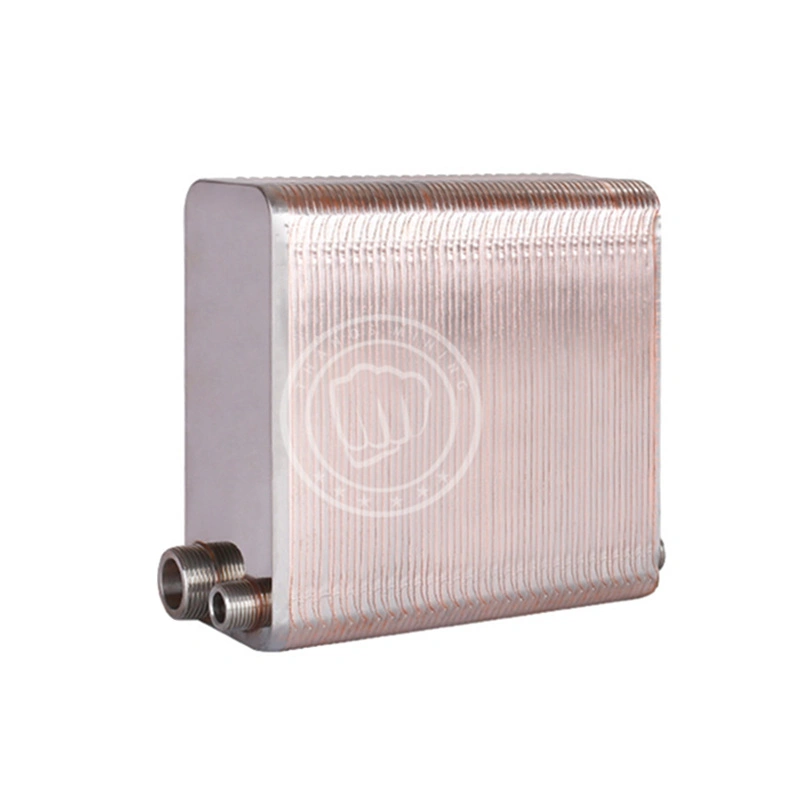

Heat Exchanger Miner Oil Cooling Both End

The heat exchanger is the most critical component in the Miner oil cooling system. Its design and quality directly determine the cooling efficiency. Under the same power consumption and the same oil pump speed, the energy consumption ratio of high-quality products is nearly 60% higher than that of inferior products.
Therefore, we recommend selecting high-quality heat exchanger components for long-term stable oil cooling systems.

This product adopts high-quality 304 stainless steel, brazing plate technology, and innovatively designed heat exchange liquid channel, which can better take away heat.
THANOSMINING provides customized oil cooling equipment solutions and deployment advice to global customers.

key parameter:

Heat Exchanger Miner Oil Cooling
Material	304 stainless steel
Craft	Brazing plate process
Heat exchange efficiency	Single layer 0.016㎡
Design pressure	1.6MPa
Operating temperature	-160℃ - +200℃

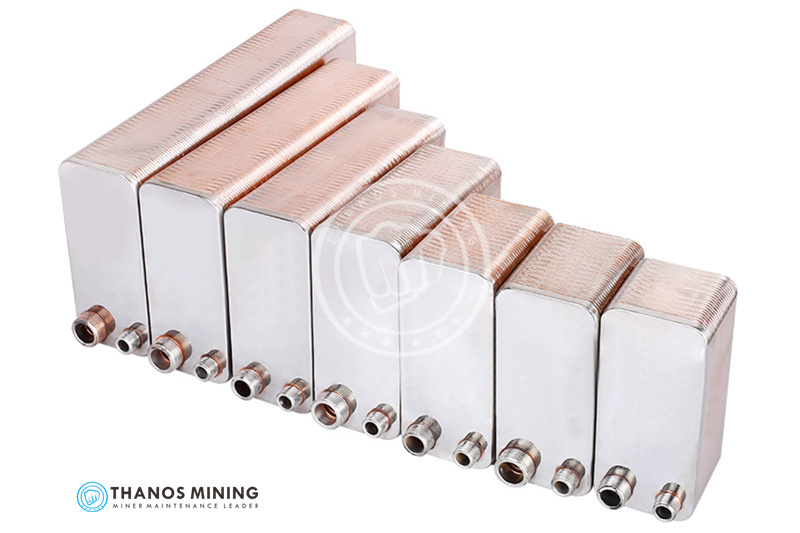

Specification	60 floors / 80 floors / 120 floors
Interface aperture	Heat source=32mm / Cold source=20mm

This product is divided into Same end and Both end
Same end: heat source*2 and cold source*2 are at the same end
Both end: heat source*2 and cold source*2 are located at both ends respectively

Related Products:
Heat Exchanger Miner Oil Cooling Same end
Smart Circulating Oil Pump Miner Oil Cooling

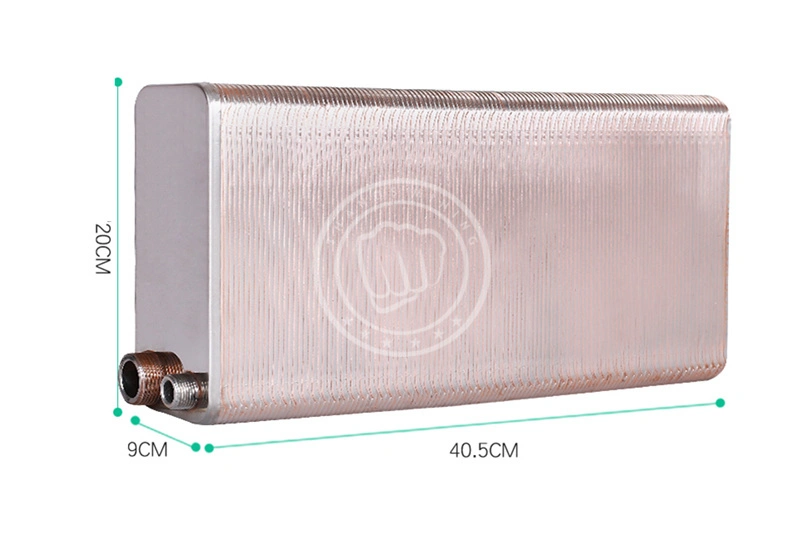

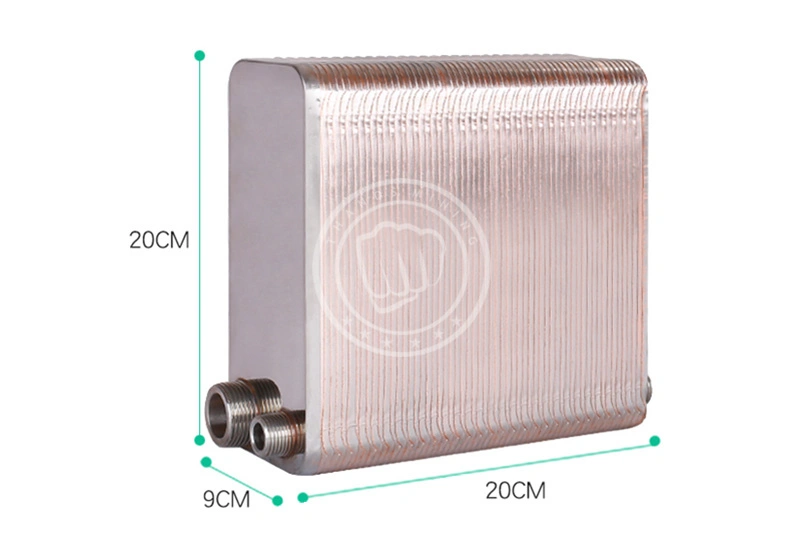

Display image (size and style)

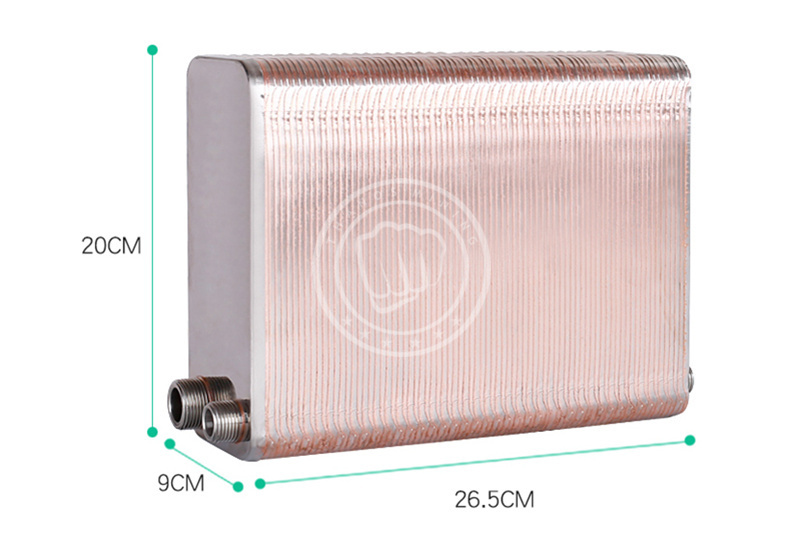

60 floors Both end
Heat exchange efficiency: 9.6KW
