| OUTPUT 1 | VDC | 12V-15V |
| OUTPUT 1 | Rated Current(230Vinput) | 350A |
| OUTPUT 1 | Ripple & Noise | <1% |
| OUTPUT 1 | Source Regulation | <1% |
| OUTPUT 1 | Load Regulation | <1% |
| OUTPUT 1 | Setup,Rise Time | <4S |
| OUTPUT 1 | Power off Protection Trip Time | >10mS |
| OUTPUT 2 | DCvolrage | 12.3V |
| OUTPUT 2 | Rated Current(220Vinput) | 15A |
| OUTPUT 2 | Voltage Accuracy | 12.2V-12.4V |
| OUTPUT 2 | Source Regulation | <1% |
| OUTPUT 2 | Load Regulation | <1% |
| OUTPUT 2 | Setup,Rise Time | <2S |
| OUTPUT 2 | Power off Protection Trip Time | >10mS |
| ACINPUT | Input Voltage,VAC | 180V-305V |
| ACINPUT | Frequency Range | 47HZ-63HZ |
| ACINPUT | Power Factor(Full Load) | >0.99 |
| ACINPUT | Leakage Current(230V 50Hz) | 35A |
| PROTECTIONS | Under Voltage Protection(UVP） | 80-89V AC |
| PROTECTIONS | Short Circuit Protection(SCP) | yes |
| PROTECTIONS | Over Temperature Protection(OTP) | yes |
| PROTECTIONS | Over Current Protection(OCP) | 366A-466A(Different voltage,different protectionvalue) |
| OPERATIONALENVIRONMENT | Operational temperature range/ | -20 to 45 ℃ |
| OPERATIONALENVIRONMENT | Operation Humidity,RH(non-condensing)/ | 20%-90% |
| OPERATIONALENVIRONMENT | Altitude | 2000M |

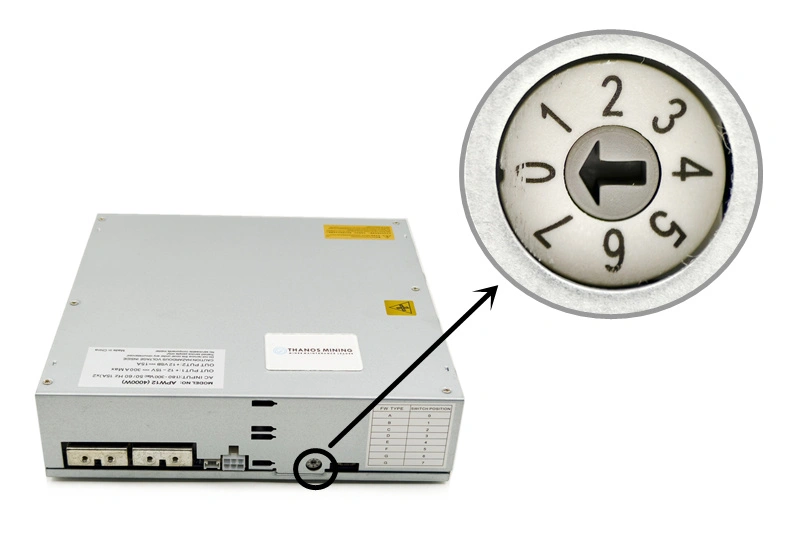

| CODE | Version |
| 1 | A/B |
| 2 | C |
| 3 | D / E |
| 4 | F |
| 5 | G |
| 6 | N |
| 7 | N |
