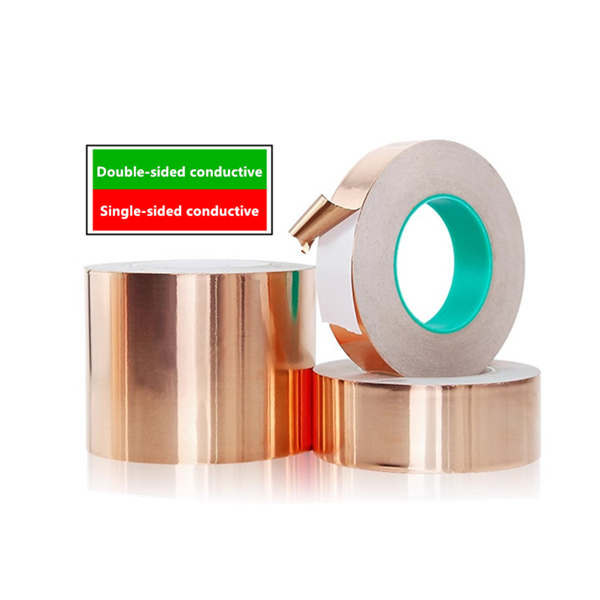

Double-sided/single-sided conductive copper foil tape

$2.80

Conductive copper foil can be used for PCB board broken wire repair, signal shielding, enhanced heat dissipation, etc.
It can also be used for baseboard signal enhancement, hash board and PSU high-voltage line break repair.
Double-sided/single-sided conductive copper foil tape

Received successfully

Coupon Code

CONTINUE SHOPPING

Please select the information you want X

Options:

Double-sided

single-sided
Width:

10mm

15mm

20mm

30mm

40mm

50mm

Quantity:

Add to Favorites

1/1

Description

Double-sided/single-sided conductive copper foil tape

Conductive copper foil can be used for PCB board broken wire repair, signal shielding, enhanced heat dissipation, etc.
It can also be used for baseboard signal enhancement, hash board and PSU high-voltage line break repair.

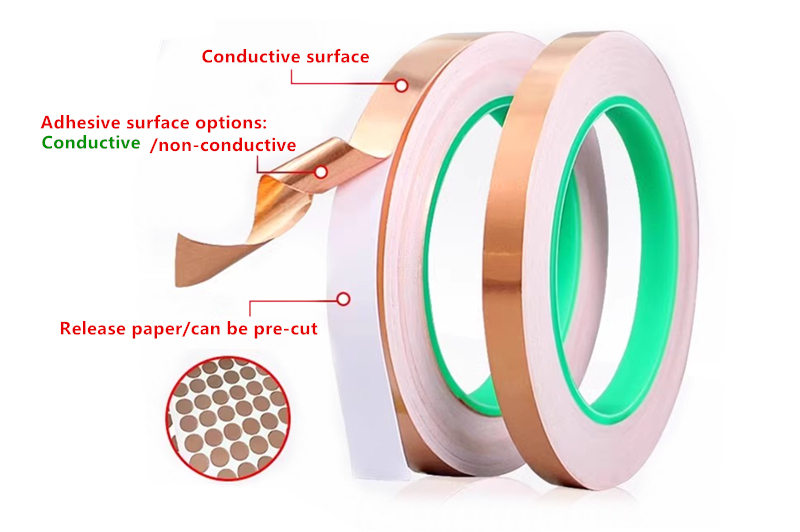

This product is a single-sided adhesive type, with pure copper medium on the A side and a mixture of conductive nickel powder and glue on the B side (conductive).

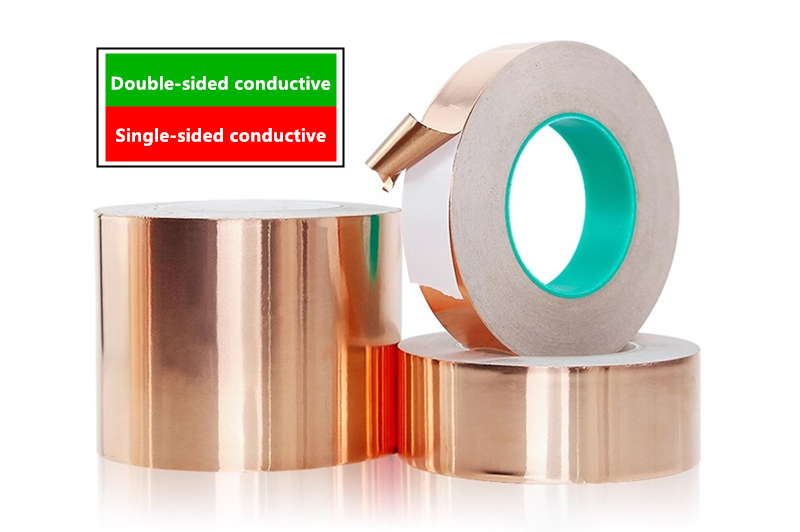

You can choose single-sided conductivity (only A side is conductive) or double-sided conductivity (both A and B sides are conductive).

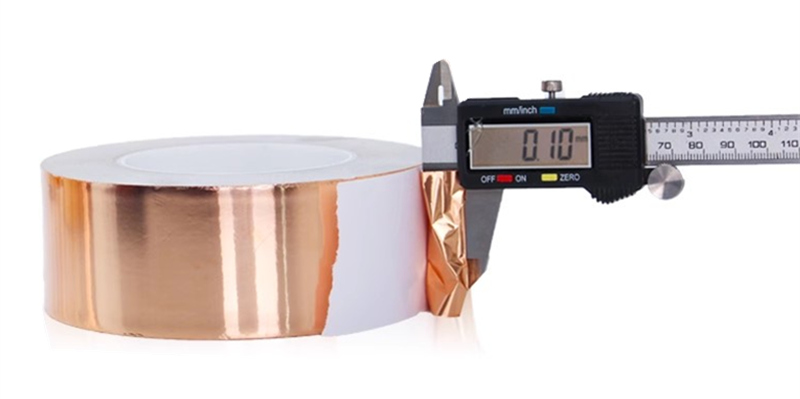

Product thickness: 0.1mm
Length: 20 meters
Width: optional

Copper foil tape has many properties such as conductivity, shielding, waterproof,
high temperature resistance, anti-interference, and radiation protection.

Pure copper material + strong alloy glue,
single-sided conductive and double-sided conductive are available.

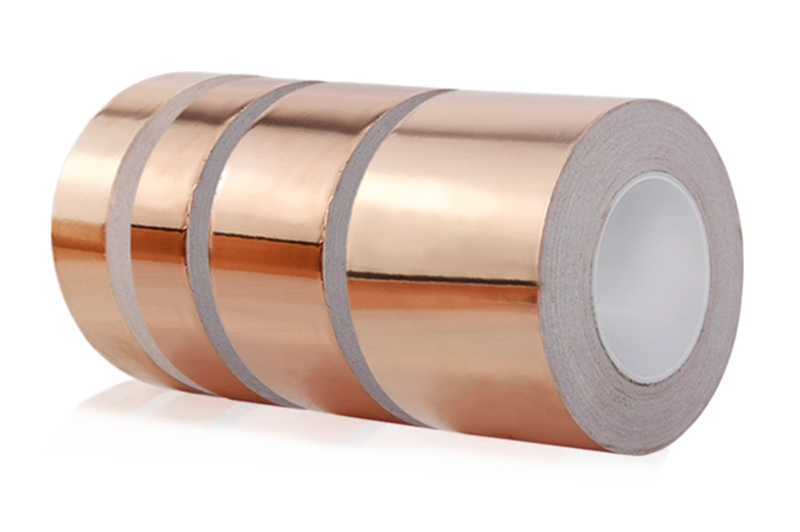

A variety of sizes are available, and customization is supported.

The thickness is 0.1mm and can withstand larger currents.
The larger the area, the better the conductivity.

Tips: Copper foil can be welded.

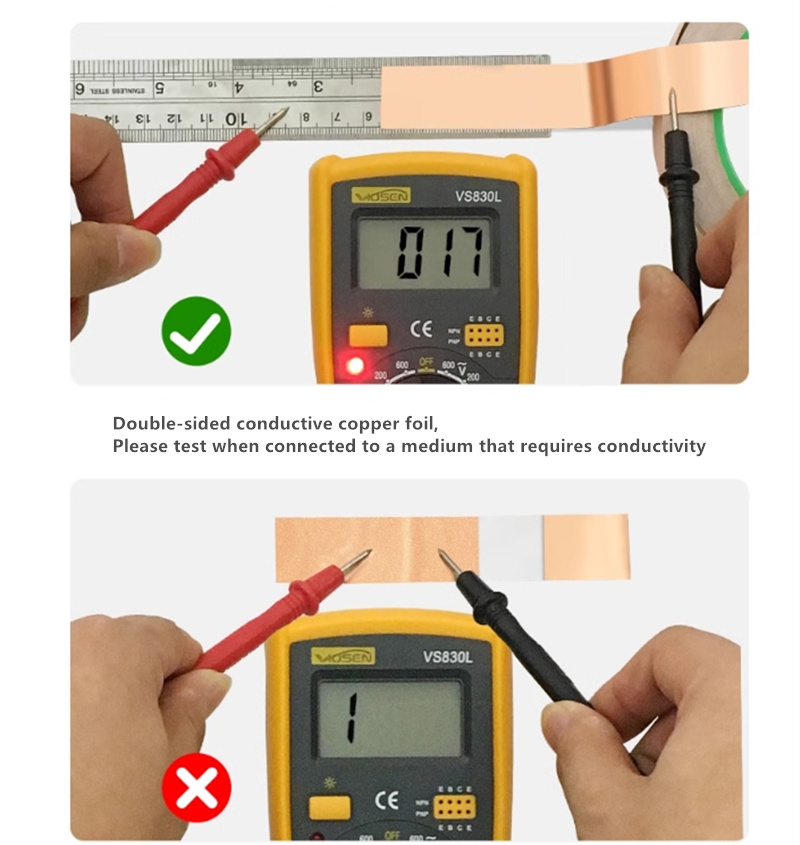

When the multimeter detects conductivity, it cannot be tested directly on the adhesive surface.
The adhesive surface is made of conductive nickel powder and glue.
Therefore, it cannot be tested directly and needs to be tested after connecting the medium
