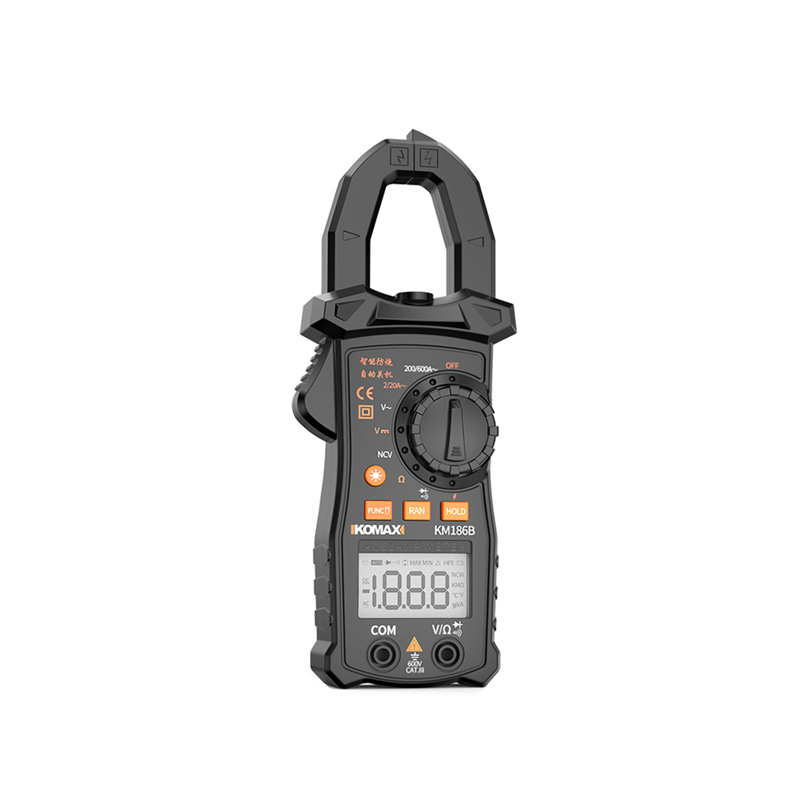

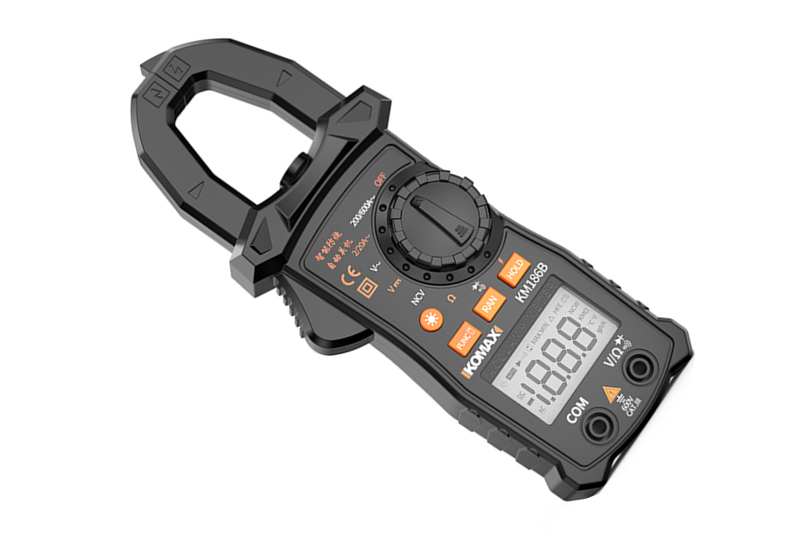

Clamp Multimeter

Clamp ammeter is a combination of current transformer and ammeter. The iron core of the current transformer can be opened when the wrench is tightened; the wire through which the measured current passes can pass through the opening of the iron core without cutting it, and the iron core is closed when the wrench is released.

Usually, when measuring the current with an ordinary ammeter, it is necessary to cut off the circuit and then connect the ammeter for measurement, which is very troublesome, and sometimes the normal operation of the motor does not allow this. At this point, it is much more convenient to use a clamp-on ammeter to measure the current without breaking the circuit.


key parameter:
Range Automatic
AC voltage 0.02/20/200/600V
Alternating current 0.2/2/20/200/600A
DC voltage 0.2/20/200/600V
Resistance measurement 0 - 40MΩ
VCC identification Support
Diode measurement Support
AC Voltage Sensing Support
Data retention Support
Alarm prompt Support



High-quality induction jaws, just put the wire into the jaws to measure.



NCV non-contact measurement, adjust to the NCV gear, the clamp head is close to the voltage, and the sound and light remind the signal strength.

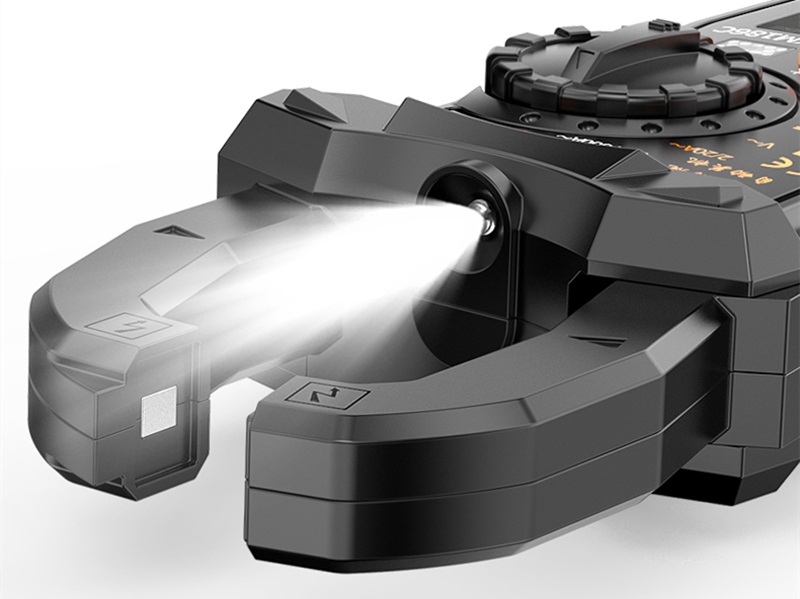

Built-in LED flashlight, even in low light environment, it can be easily dealt with.



Intelligent protection chip, safe and reliable.


More application scenarios:
