Capacitor Discharger for PSU Repair V4.0

$15.00 $0.00
Capacitor dischargers quickly remove residual charge from capacitors, protecting technicians and circuit boards when servicing Miner PSUs.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites
  • Capacitor Discharger for PSU Repair V4.0
  • Capacitor Discharger for PSU Repair V4.0
1/1
  • Capacitor Discharger for PSU Repair V4.0
  • Capacitor Discharger for PSU Repair V4.0
  • Description

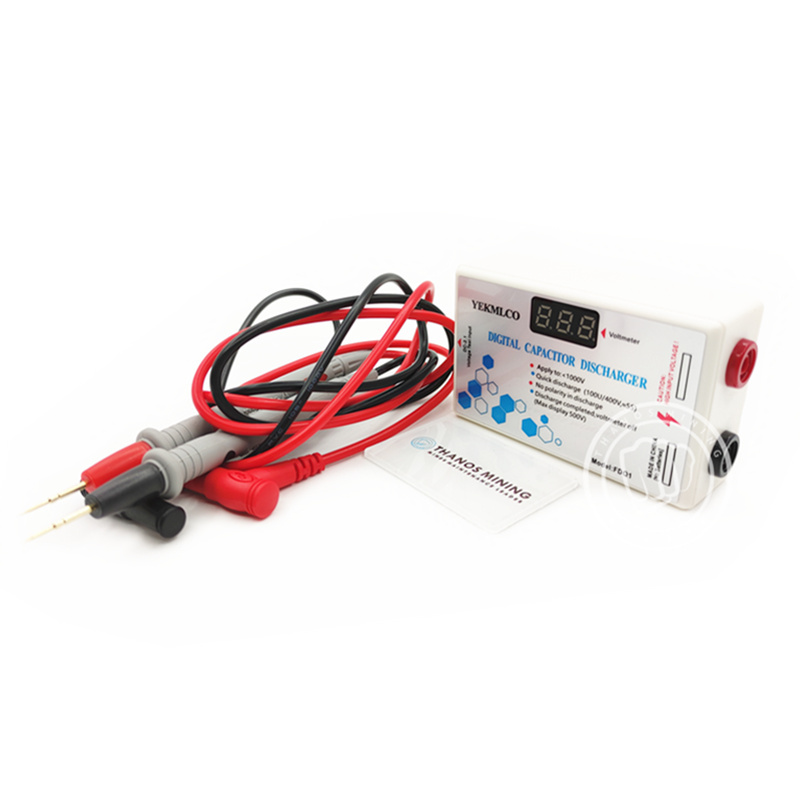

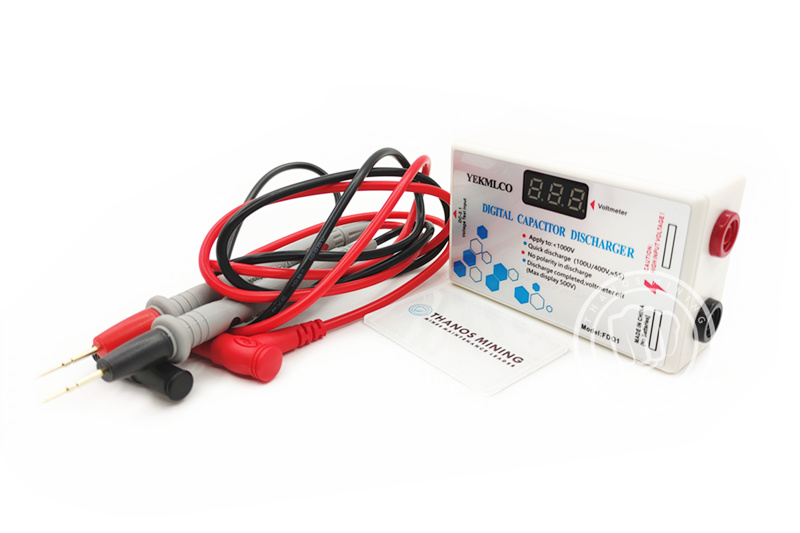

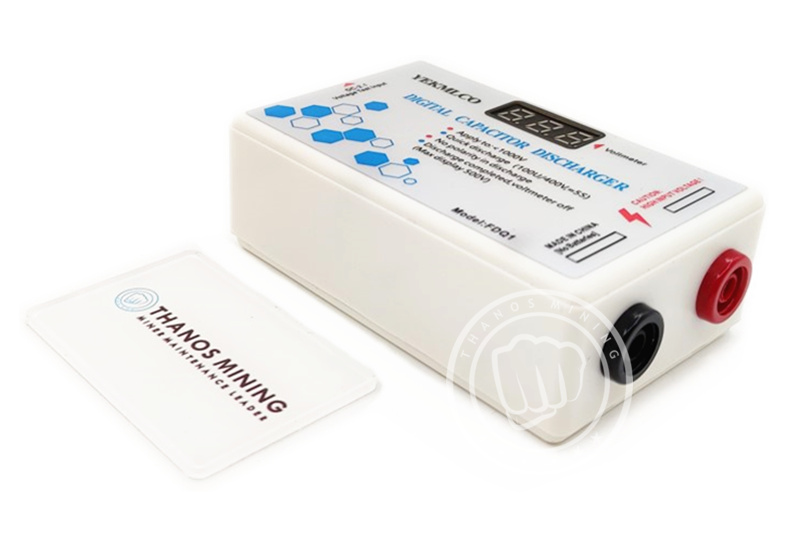

Capacitor Discharger for PSU Repair V4.0

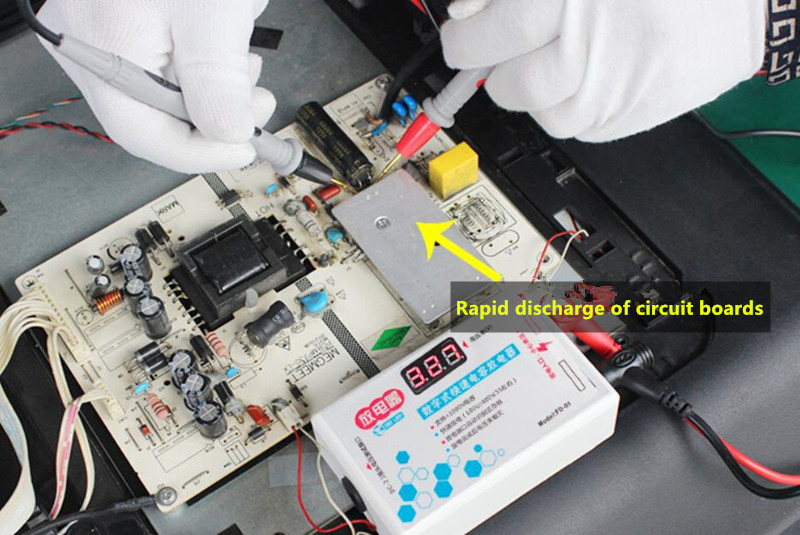

When servicing a Miner PSU, large electrolytic capacitors are involved in the circuit board and there is a high chance of residual charge (high voltage) in these capacitors. When the repair tool touches the capacitor, a huge current will be generated, causing electric shock to the human body or directly burning other components on the circuit board.
Capacitor dischargers quickly remove these residual charges, protecting technicians and circuit boards.

This product is suitable for the discharge of high voltage and large capacitors such as PSU. If you want to buy small and medium capacitor dischargers for repairing hash boards, control boards, etc., please check the following products:
Click to view:Capacitor discharge pen V1.0

Introduce:
Discharge method Constant current source discharge
Discharge Type AC or DC
Discharge termination voltage 1.5V - 4V
Maximum Compatible Voltage 1000V, Infinite capacitance uF
Discharge time less than 4 seconds
Test lead polarity Regardless of positive and negative
Size 95mm*58mm*31mm
Discharge indication Digital Display

Tips:
The pictures taken by the company have been archived as original pictures, and no unit or individual may misappropriate them. Once found, the company will pursue its legal responsibility.
Please understand, thank you!


Visit YouTube: https://youtu.be/FsDy9S47hrQ

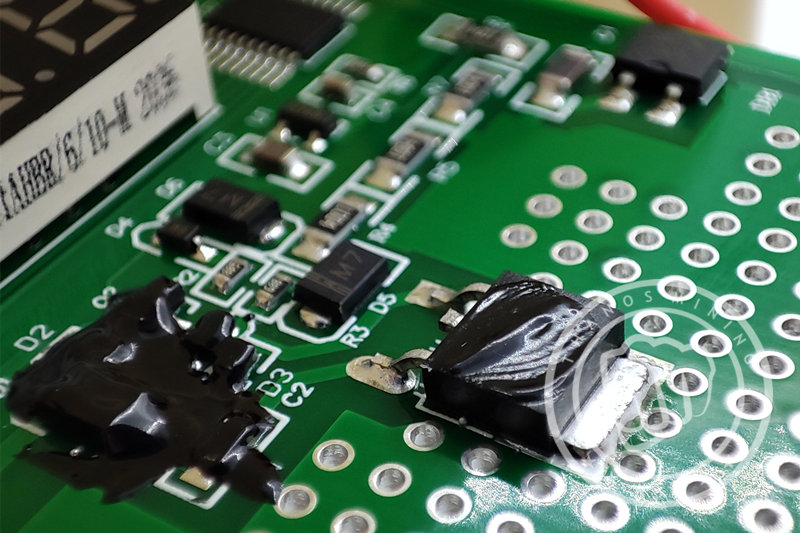

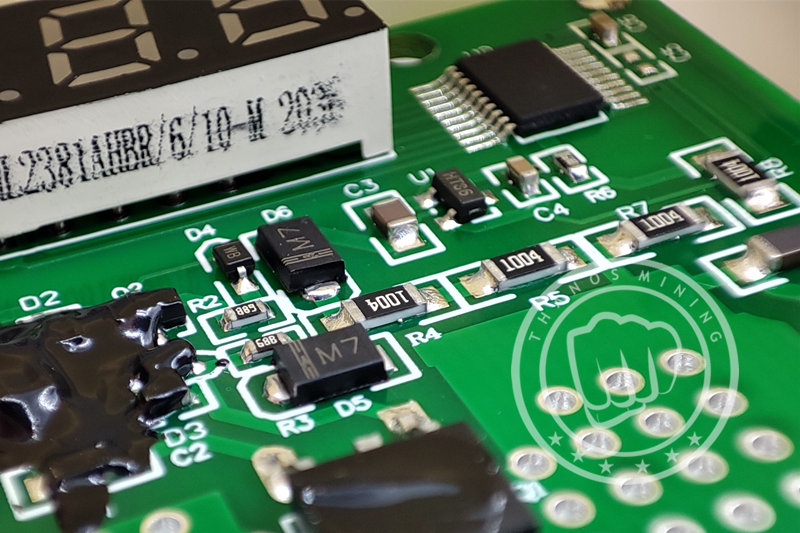

Circuit board integrated high power mos

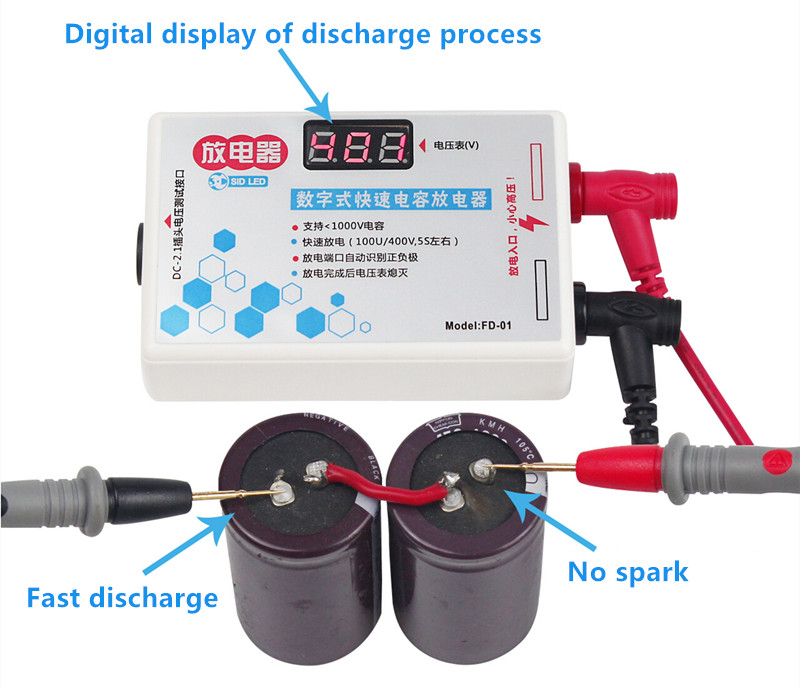

Fast constant current source discharge, digital display of the discharge process, when the number is completely extinguished, the discharge is completed, the discharge time is about 0.1 seconds to 5 seconds, depending on the type of capacitor.





When there is no external power supply, the discharge termination voltage is 4V safe voltage

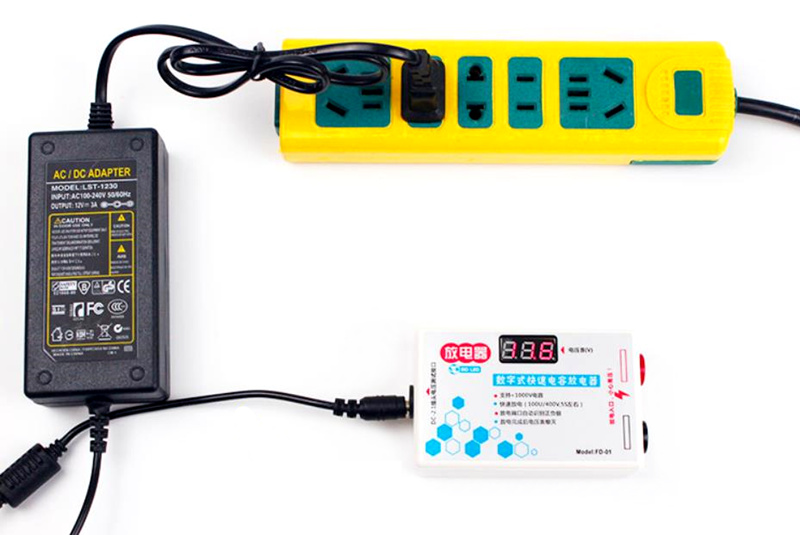

When an external 12V power supply is used, the discharge termination voltage is 1.5V or completely exhausted
