| OUT1 | DC Voltage | 12V-15V |
| Rated Current(220V input) | 267A | |
| Ripple & Noise | <1% | |
| Line Regulation | <1% | |
| Load Regulation | <1% | |
| Setup Time | <14S | |
| Short Circuit Protection | >10mS | |
| OUT2 | DC Voltage | 12.3V |
| Rated Current(220V input) | 18A | |
| Ripple & Noise | <1% | |
| Voltage Accuracy | 12.2V-12.4V | |
| Line Regulation | <1% | |
| Load Regulation | <1% | |
| Setup Time | <10S | |
| Short Circuit Protection | >10mS | |
| Input | Voltage Range | 220-277V AC |
| Frequency Range | 50/60Hz | |
| Power Factor | >0.99(full load) | |
| Leakage Current | <4mA（220V 50Hz） | |
| Protection | Input low-voltage protection value | 185-195V AC |
| Output Short Circuit | Yes | |
| Overheat Protection | Yes | |
| Over-current Output | 280A-402A（protection value varies under different voltage） | |
| Environment | Operating Temperature | -20-40℃ |
| Operating Humidity | 20%-90%RH（non--condensing） | |
| Altitude | <2000m | |
| Structure | Dimensions | 254.6*251.6*63mm |
| Net Weight | 3.9Kg | |
| Cooling System | Forced‐air cooling | |
| Noise | 45dBA |

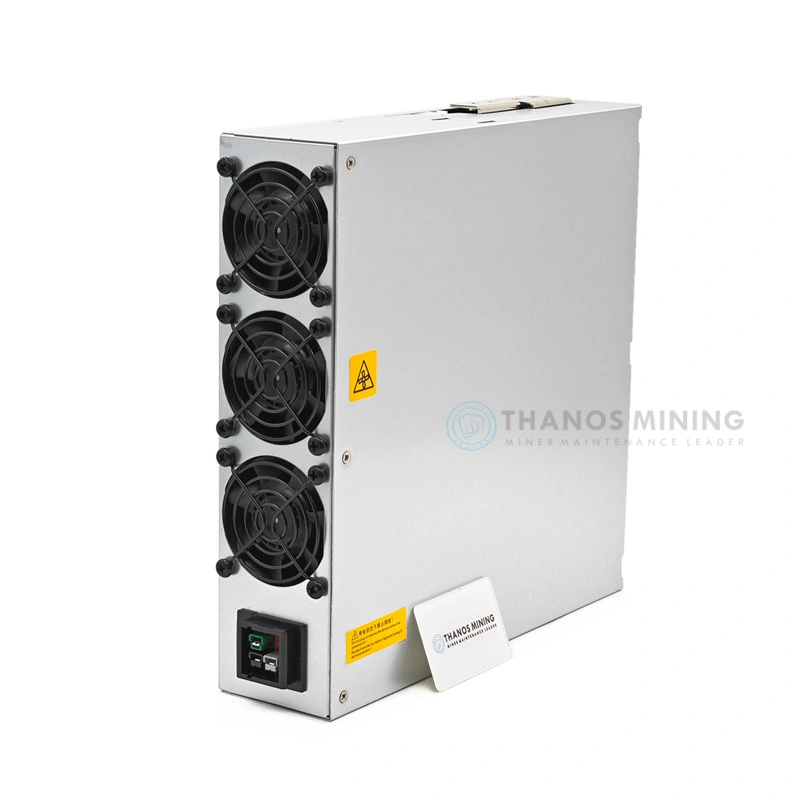

Original Product reverse side:
Important note:
Original power supplies may have different logos depending on the official partner.
Power supplies with the following different logos also enjoy official warranty.

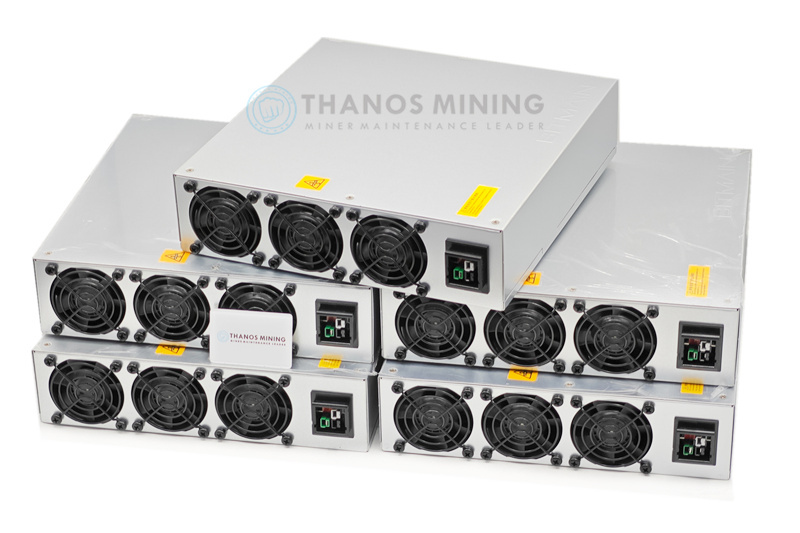

Original Spot sales:
