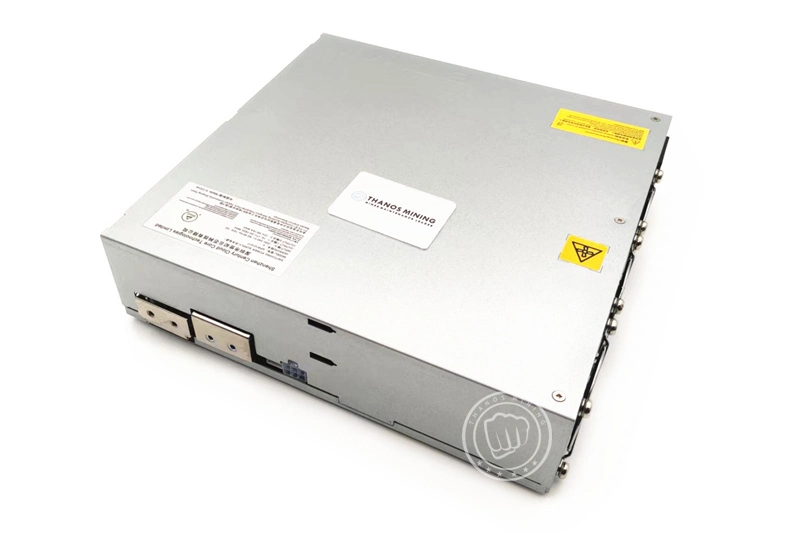

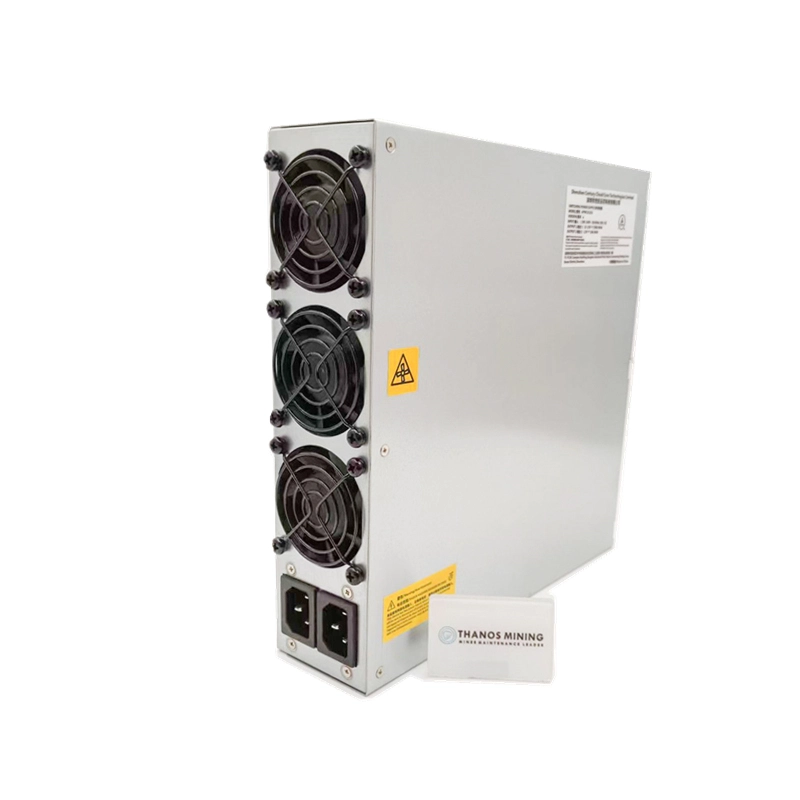

APW12 1417b V1.1 For Antminer KS3
$81.00
APW12 1417b V1.1 For Antminer KS3
APW121417b, 14V-17V, V1.1
APW121417b, 14V-17V, V1.1
1/1
|
APW12 |
||
|
OUT1 |
DC Voltage |
14V-17V |
|
Rated Current(220 V input) |
182A (maximum 212A) | |
|
Ripple & Noise |
<1% |
|
| Source adjustment rate |
<1% |
|
|
Load Regulation |
<1% |
|
| Start-up and rise time |
<2S |
|
| Power-off retention time |
>10mS |
|
|
OUT2 |
DC Voltage |
12.3V |
|
Rated Current(220 V input) |
18A |
|
|
Ripple & Noise |
<1% |
|
|
Voltage Accuracy |
12.2V---12.4V |
|
| Source adjustment rate |
<1% |
|
|
Load Regulation |
<1% |
|
| Start-up and rise time |
<2S |
|
| Power-off retention time |
>10mS |
|
|
Input |
Voltage Range |
200-240V AC |
|
Frequency Range |
47-63Hz |
|
|
Power Factor |
>0.99(full load) |
|
|
Leakage Current |
<1.5mA（220V 50Hz） |
|
|
Protection |
Input undervoltage protection value |
80-89V AC |
|
Output Short Circuit |
Yes |
|
| Over-temperature protection |
Yes |
|
| Output overcurrent protection value |
260A-340A |
|
|
（protection value varies under different voltage） |
||
|
Environment |
Operating Temperature |
-20-45℃ |
|
Operating Humidity |
20%-90%RH（non-condensing） |
|
|
Altitude |
< 2000m |
|
|
Structure |
Dimensions |
254.6mm*251.6mm*63mm |
|
Net Weight |
3.6KG |
|
| Cooling method | Forced air cooling | |
| Noise | 45dBA | |
