Description

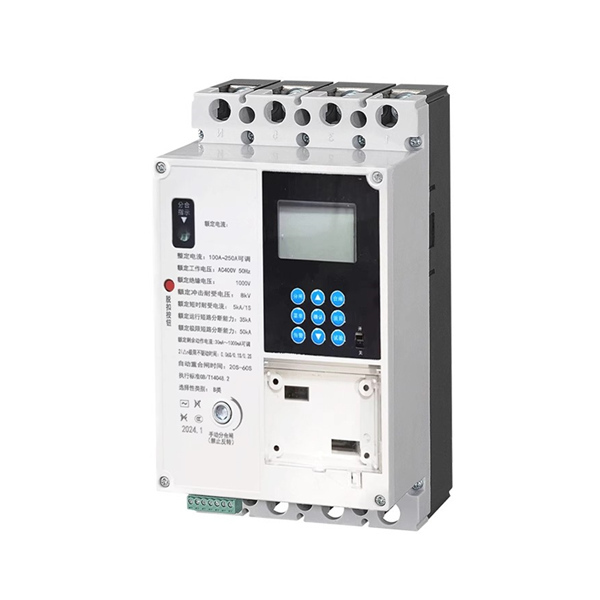

Remote intelligent circuit breaker switch 400A 630A 800A

Communication intelligent three-phase reclosing remote switch
Remote management and real-time monitoring can be achieved through APP/PC,
Function: Energy metering, temperature monitoring ，
Leakage protection, overvoltage protection ，
Make your electricity usage more transparent and controllable
Compared with traditional molded case circuit breakers, it has added multiple functions:
Multiple functions, including fault alarm, overcurrent alarm, leakage self check function, automatic reclosing, etc.
Residual current circuit breaker

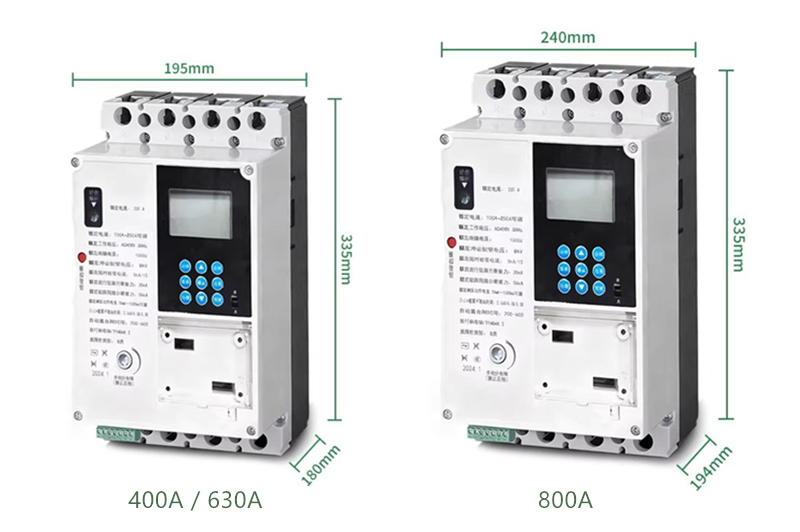

Multiple models available (please consult the salesperson for more models): 400A, 630A, 800A

Product Name	Three phase automatic reclosing in the Internet of Things
Product Model	M8LC-3P+N
Number of electrodes	3P+N
Rated working current	400A / 630A / 800A / For more options, please contact the salesperson
Rated insulation voltage Ui (V)	230V / 400V
Mechanical life	Mechanical lifespan>30000 cycles, electrical lifespan>6000 cycles
Unlock	After the leakage circuit is disconnected, the automatic locking platform and mobile APP remotely release the alarm, that is, manually press the local button to release the lock, After releasing the lock and opening the circuit due to undervoltage, it will automatically lock. Platform and mobile app cannot be unlocked remotely Manually press the local button to unlock and emergency close, but the system detects abnormal voltage and still opens the circuit
Safety lock	The equipment is in maintenance mode and the toggle switch needs to be adjusted to the maintenance mode. This safety lock is an internal mechanical lock that cannot be closed even by manual or remote control, ensuring the personal safety of maintenance personnel

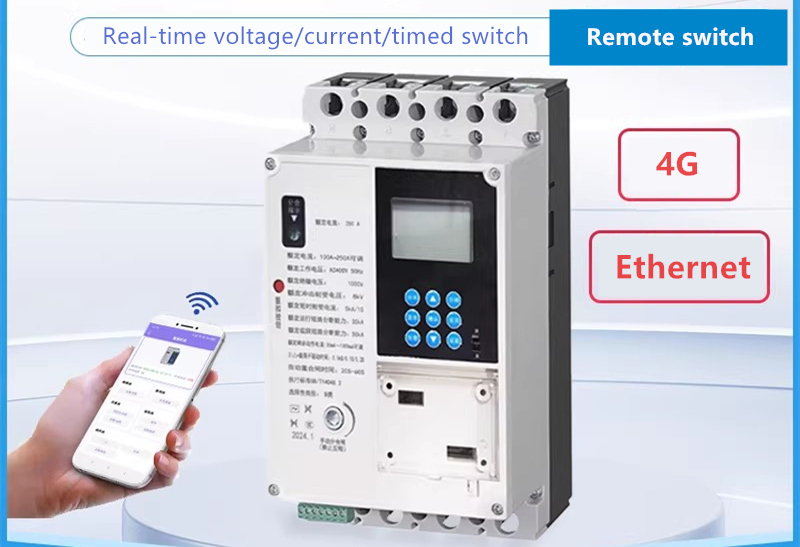

Real time voltage, real-time current, multiple protections, timed switch
Remote opening and closing, APP management cloud platform management,
3C detection report, electricity measurement statistics
Ethernet

Multiple functions:
Electric energy statistics, remote control, permission settings, data detection, report generation,
operation and maintenance management, metering management, operation records, message list,
scene linkage, work order delivery, function settings, safety self-test, leakage self-test, timed switch,
electric energy statistics, remote control, current limit, fault warning

This product requires an internet connection and account login.
Please provide your custom username and password to the salesperson or after-sales service representative.
Please use a name you are familiar with and remember it.
The password must be 6 digits.

App Download Methods:
Android: http://download.aizywl.top/zrwl.apk
iOS: Search "卓睿物联" in the App Store and download.

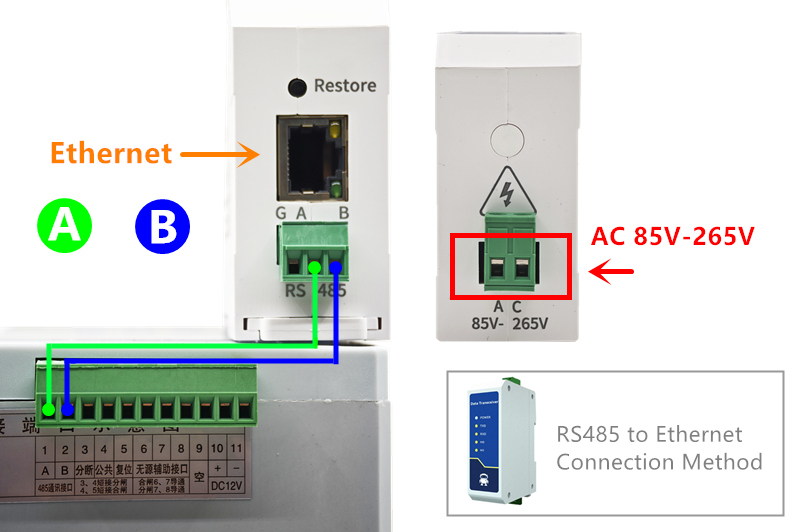

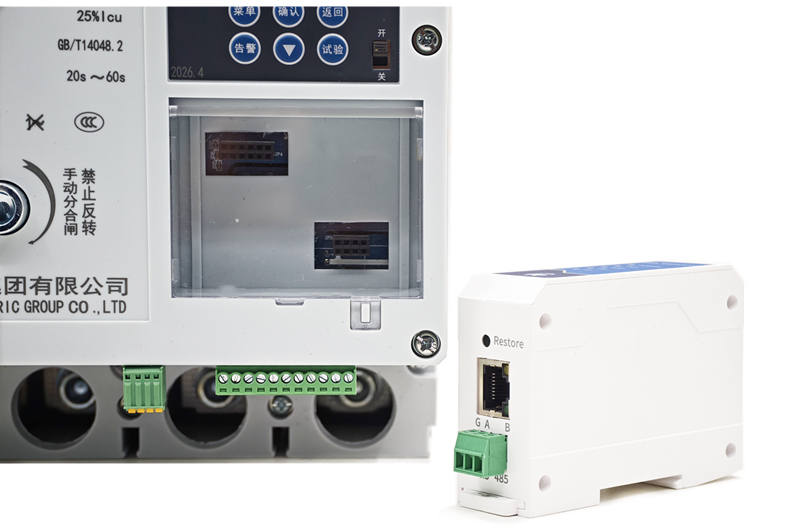

You will receive an additional Ethernet to RS485 data processor.

Please connect the cables as shown in the diagram below:
Connect the Ethernet port to the network cable.
Connect the other end to the power supply (AC 85V-65V).
Connect the RS485 port to the host computer (G port is unused; only connect A-A and B-B).

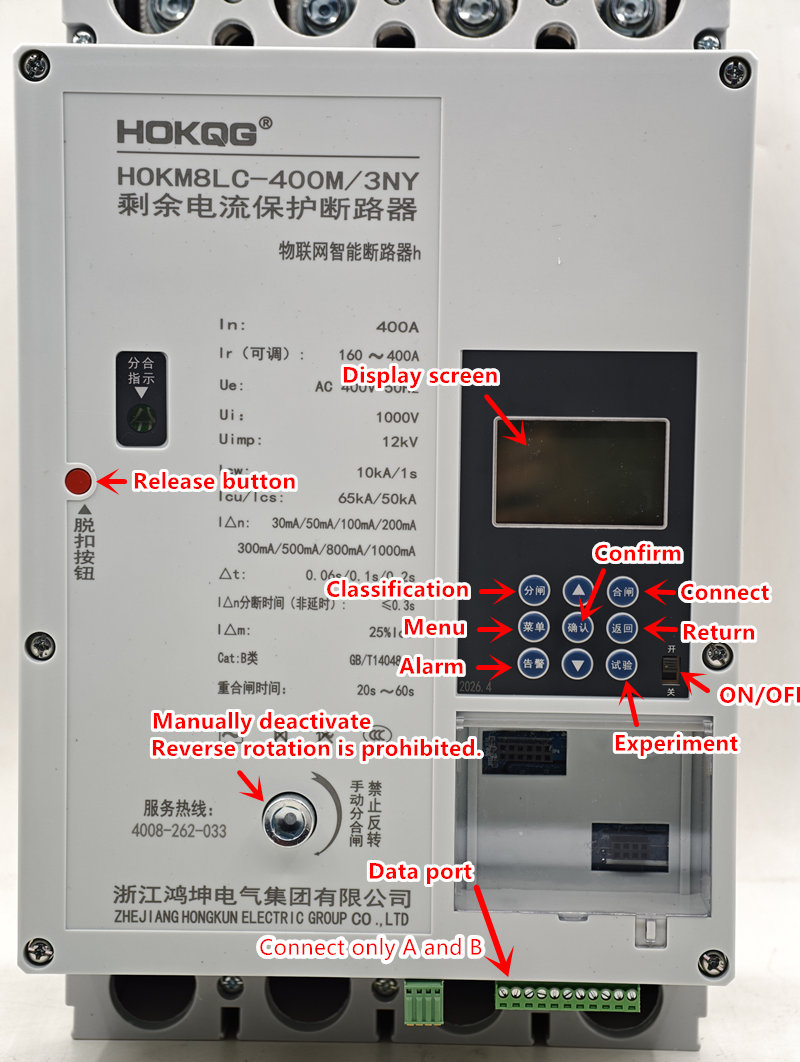

Chinese/English annotations

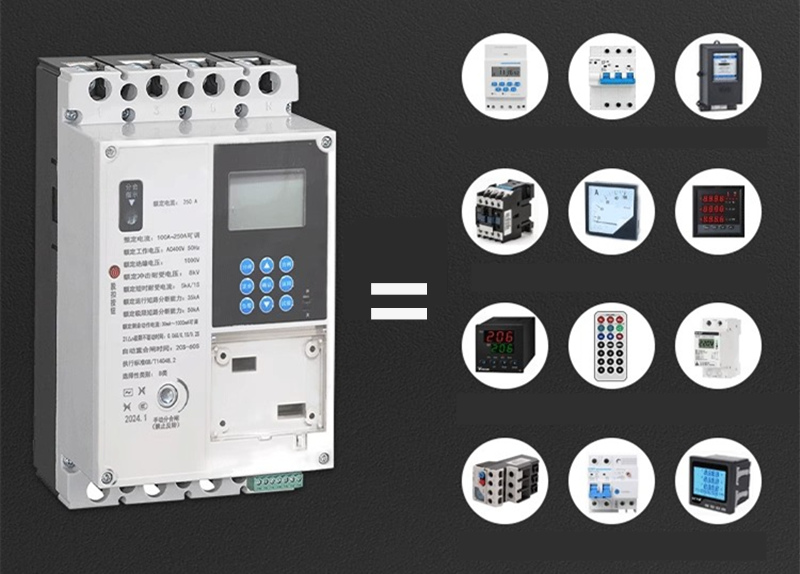

Integrated functions
Fully functional, directly replacing multiple products

Transparent electricity makes' electricity 'visible

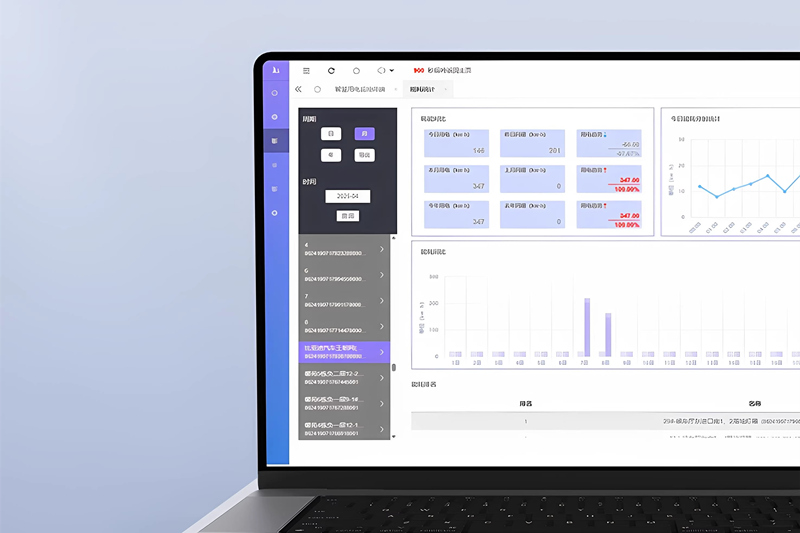

Real time display of data on mobile phones/computers, reading of electrical parameters and electricity measurement,
setting of voltage, current, and power thresholds

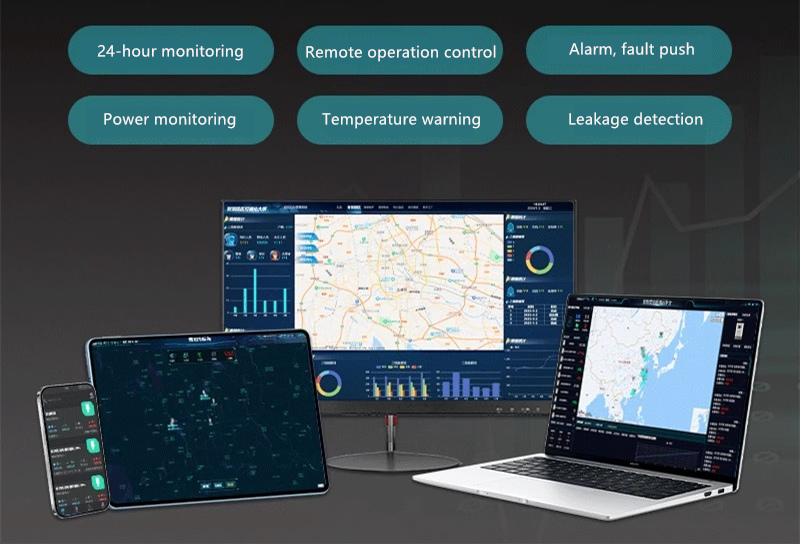

24-hour real-time monitoring, real-time electricity consumption monitoring,
remote operation control, over temperature warning, fault push, leakage measurement and other functions
