Description

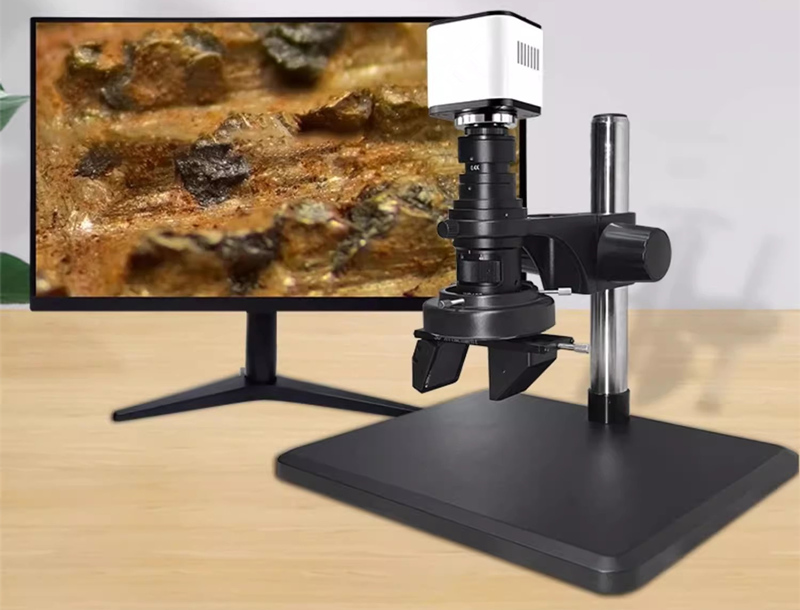

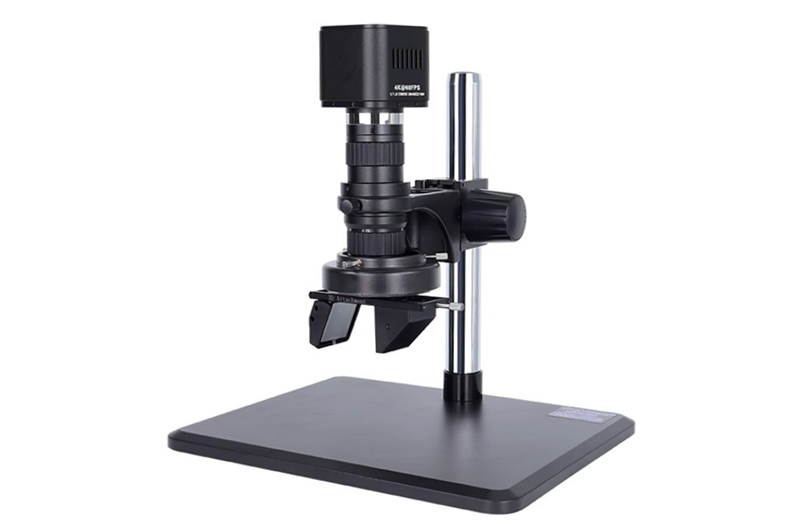

3D industrial DH electron microscope Autofocus

Full-range rotation,Autofocus, three-dimensional effect detection, welding repair detection,
three-dimensional measurement, photo taking and video recording,
Optical lenses use high-definition coated lenses, and parfocal technology makes image and video imaging clearer,
Equipped with high-quality 3D modules and industrial cameras, it can achieve fast zoom, positioning and switching.
Applicable to hash board repair, control board repair, power supply repair,
mobile phone repair, home appliance repair, industrial testing, quality inspection and other fields.

2D/3D free push-pull switching, the working distance and center remain unchanged when switching, no need to refocus,
Can rotate 360° for easy observation

It adopts large depth of field optical technology, has a three-dimensional sense and high contrast,
and is suitable for observing the processing quality of component solder balls,
electrical connectors, metal hole interiors, side walls, etc.

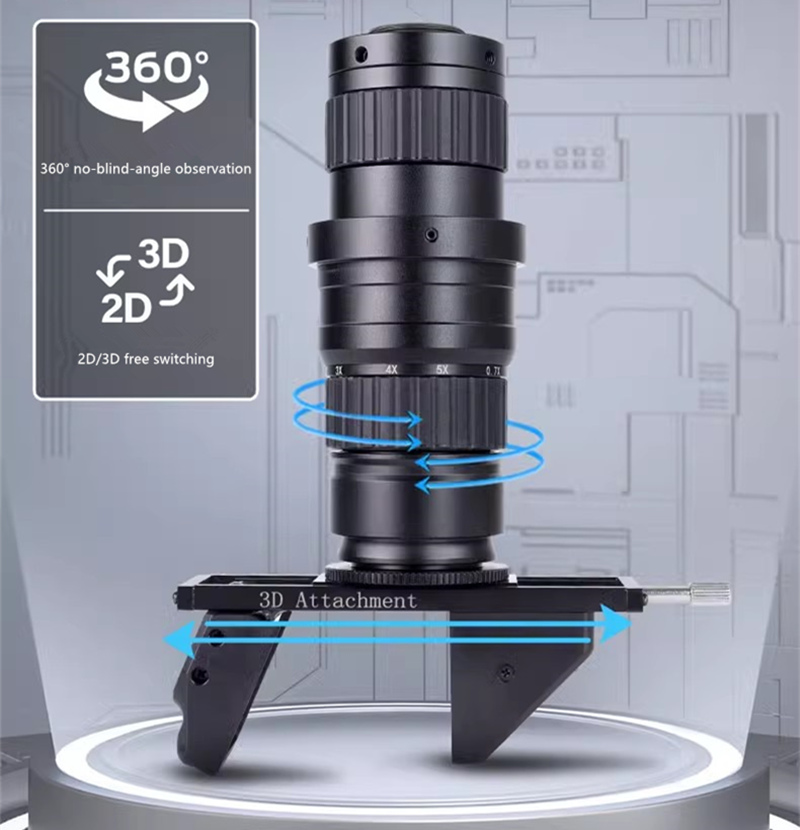

2D/3D field of view can be switched freely, with automatic focus, no need to refocus.
3D stereoscopic detection, 360° observation.

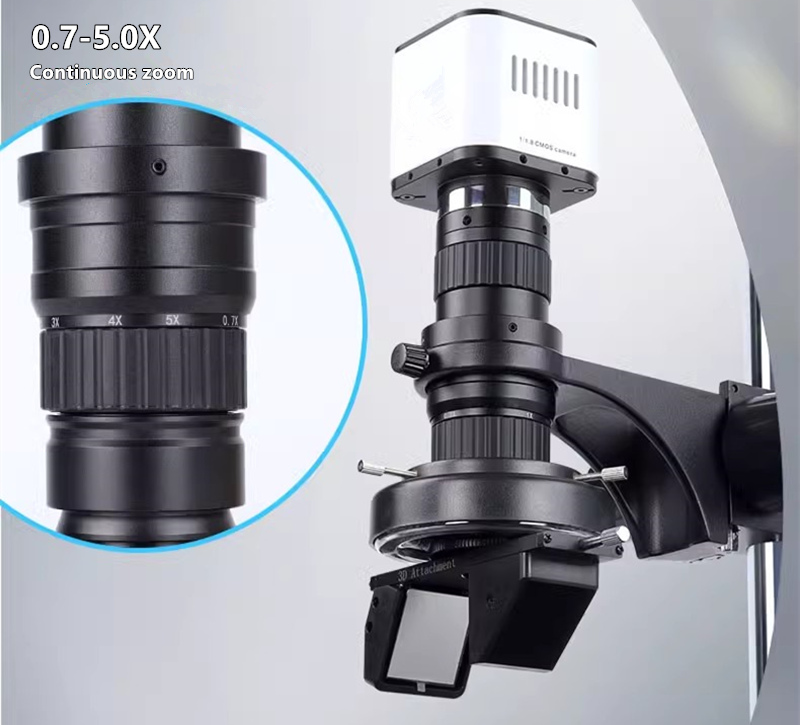

0.7-5.0x UHF continuous zoom lens
Ultra-high-definition video images are output and stored in real time.

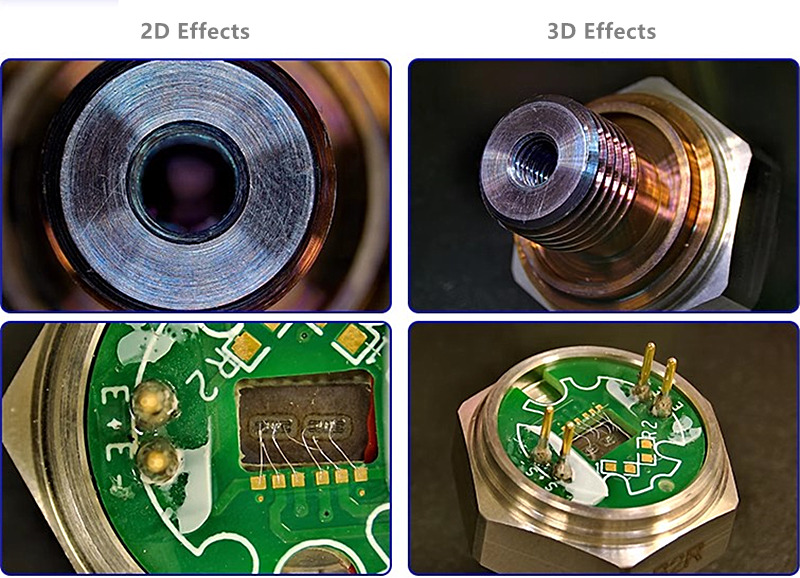

Observation effect of industrial parts and electronic parts

Key parameters:
Sensor: IMX307
Resolution: 1920X1080@60FPS
Output interface: HDMI+Type-c dual interface
Connected device: HD display + computer
Optical magnification: 0.7-5.0 times continuous zoom
Electronic magnification: 25-230 times adjustable
Lighting source: high-quality LED ring light
Metal base: 320X260MM column 300MM
Basic functions: photo taking, video recording, measurement, storage
Camera functions: electronic zoom in/out, horizontal\vertical flip, wide dynamic,
auto focus, two/four screen comparison on the same screen, data export, etc.

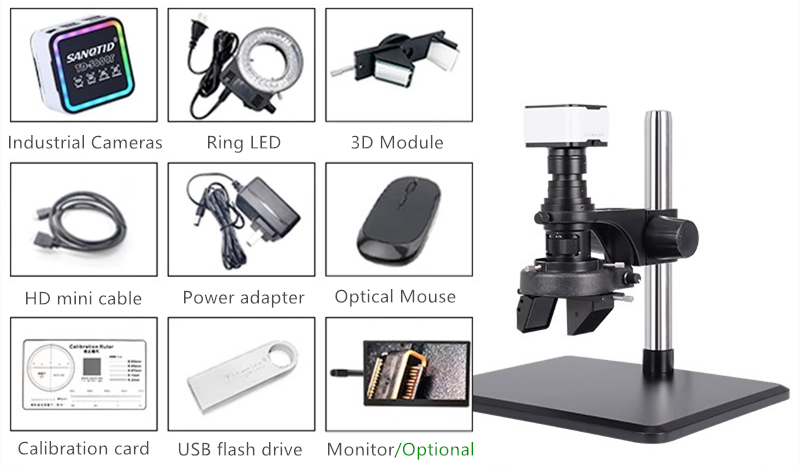

List: (Display screen is 13.3 optional configuration)
