Description

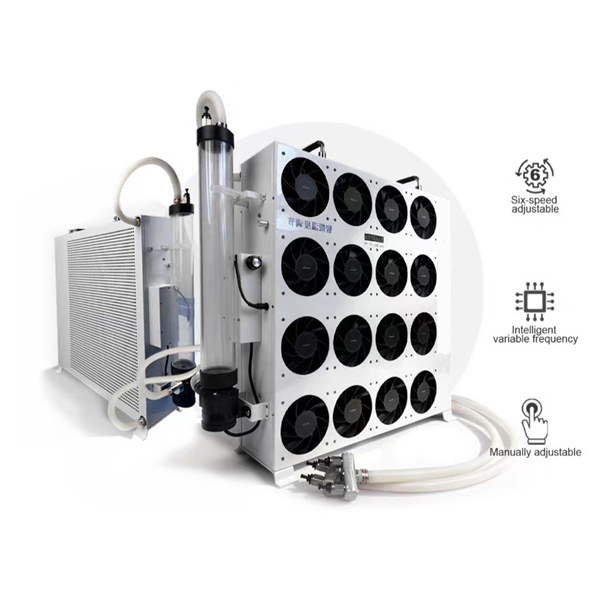

15kW Intelligent Temperature water cooling radiator

This product represents a completely redesigned upgrade—an ultra-quiet external radiator equipped with 16 fans.
It is specifically engineered for water-cooled environments involving Antminer, Whatsminer,
Avalon, high-performance computing servers, data centers, and similar systems.
Distinguished by exceptional thermal dissipation efficiency and superior noise suppression, it boasts a cooling capacity of up to 15 kW.
This radiator supports multiple operating modes:
Manual Mode (allowing for independent adjustment of fan speed and water pump output)
Temperature-Controlled Mode (automatically adjusting settings based on water temperature).

Key Parameters:

Water Capacity	≈ 7L
Input Voltage	220V
Power Interface	C14 Female Socket × 1 (Requires C13 power cord / 220V)
Radiator Power Consumption	80W – 500W
Product Dimensions	690 × 645 × 138 mm (Maximum External Dimensions)
Package Dimensions	800280735mm
Maximum Ambient Temperature	50°C
Heat Dissipation Capacity	15 kW (at 30°C ambient temperature)
Operating Noise Level	20 – 75 dB
Water Flow Rate	8 – 16 L/min (Adjustable Flow)
Inlet Temperature Differential	10°C / 14°C
Fan Speed Adjustment Range	0 – 6000 RPM

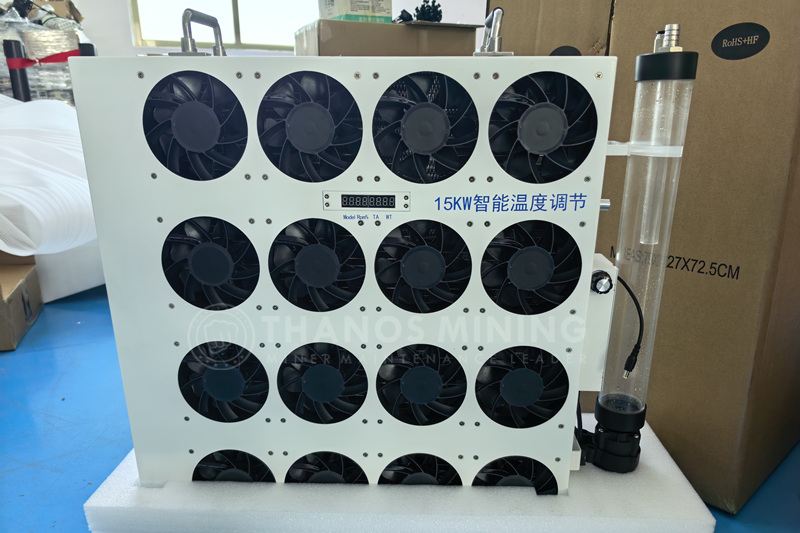

Equipped with a powerful cooling system comprising 16 fans,
the fans feature dual ball bearings for stability and durability,
and deliver a cooling capacity of up to 15 kW while maintaining silent operation.

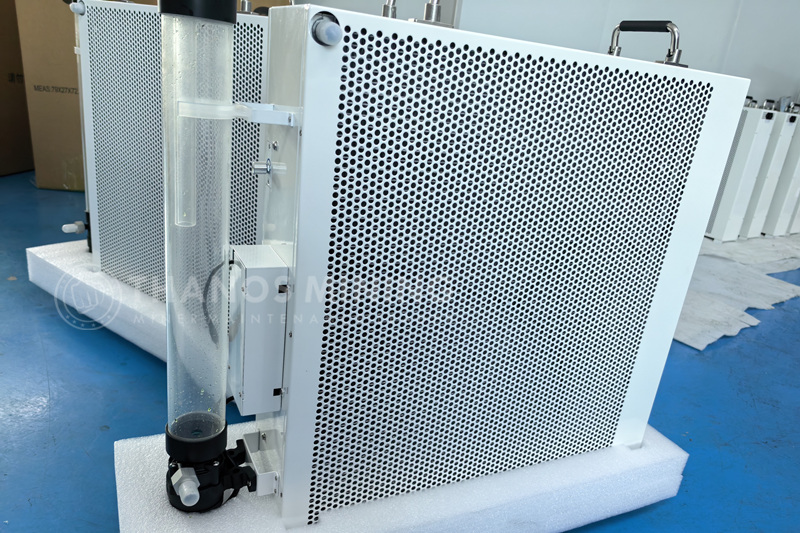

The internal heat dissipation medium consists of aluminum alloy fins;
its multi-loop design ensures a longer fluid flow path,
thereby enhancing heat dissipation efficiency.

In Manual Mode, both the fan speed and pump power can be independently adjusted.
In Temperature Control Mode, the device automatically adjusts based on the water temperature.

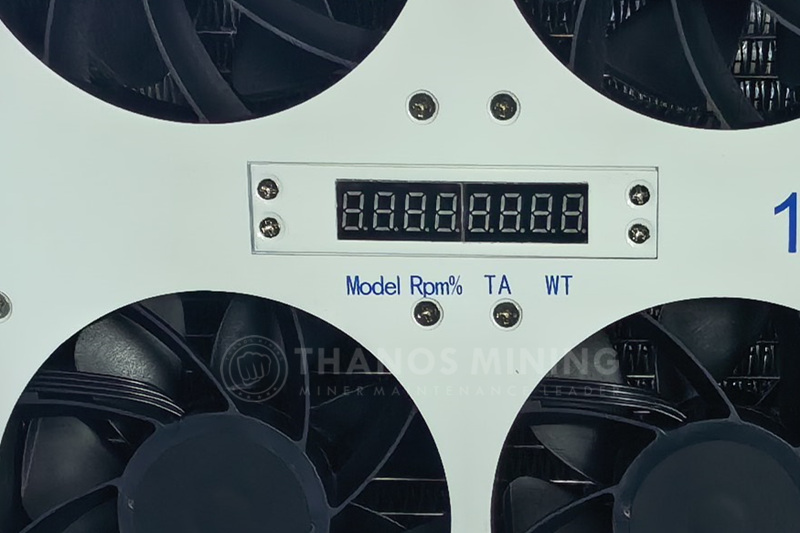

A concise and clear control and display panel.
Digits 1 and 2 display the current temperature control mode.
Digits 3 and 4 display the current duty cycle.
Digits 5 and 6 display the current air inlet temperature.
Digits 7 and 8 display the current water temperature after passing through the radiator.

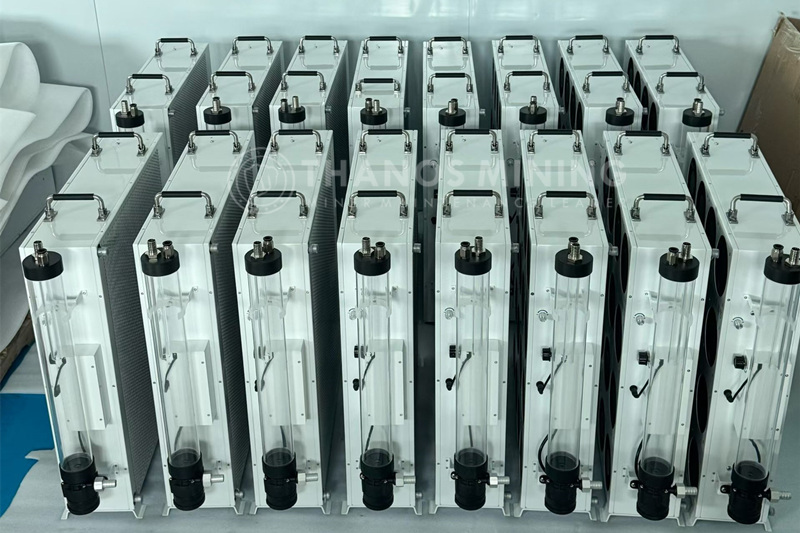

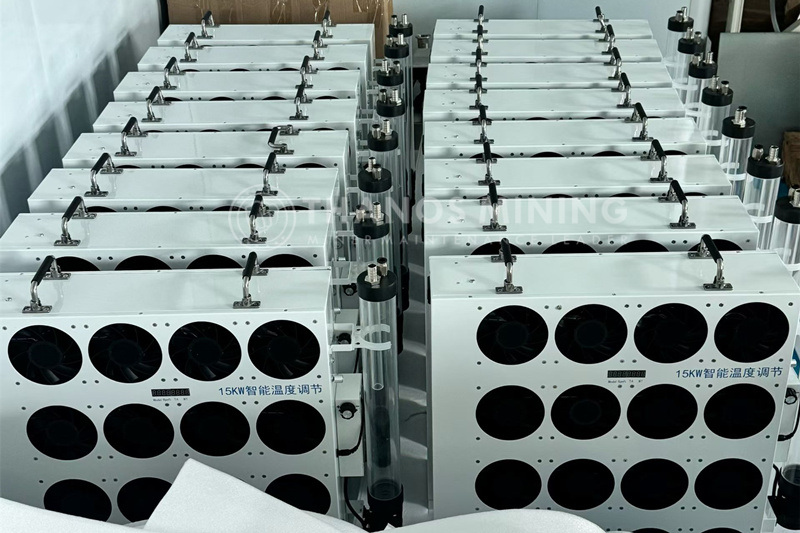

Ample stock, prompt shipping.

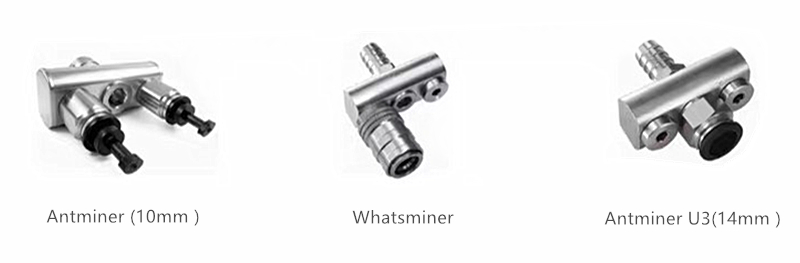

Multiple Connector Options Available:
Antminer: Equipped with two 10mm extended, double-sealed quick-connect fittings,
suitable for connecting one or two servers with 10mm tubing. If connecting a single server,

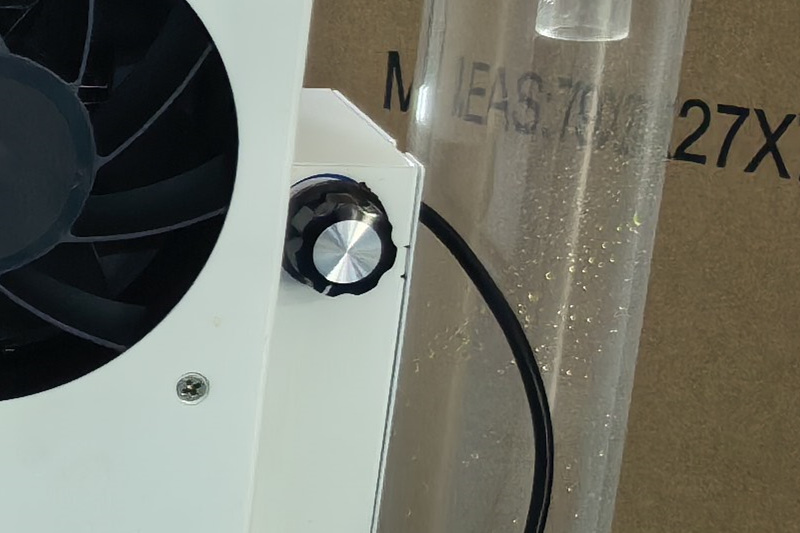

please set the circulation pump control knob to the minimum power setting (80W).
If connecting two servers, please set the circulation pump control knob to the maximum power setting (120W).
Antminer U3: Equipped with one 14mm extended, double-sealed quick-connect fitting,
suitable for connecting a single server with 14mm tubing (specifically the Antminer U3).
When connecting an Antminer U3 server, please set the circulation pump control knob to the maximum power setting (120W).
Whatsminer: Optional water-locking quick-connect fitting available (requires separate purchase).
This fitting is suitable for connecting a single Whatsminer server; when connected,
please set the circulation pump control knob to the minimum power setting (80W).

Temperature Control Mode Parameters:
Mode 01 (Manual Mode): Fan speed can be manually adjusted only when in Mode 01.
Mode 02 (Temperature Control Mode): PWM output is 0 below a water temperature of 25°C;
PWM output is 100 above 35°C; within the 25°C–35°C range, the fan speed adjusts adaptively.
Mode 03 (Temperature Control Mode): PWM output is 0 below a water temperature of 30°C;
PWM output is 100 above 40°C; within the 30°C–40°C range, the fan speed adjusts adaptively.
Mode 04 (Temperature Control Mode): PWM output is 0 below a water temperature of 35°C;
PWM output is 100 above 45°C; within the 35°C–45°C range, the fan speed adjusts adaptively.
Mode 05 (Temperature Control Mode): PWM output is 0 below a water temperature of 50°C;
PWM output is 100 above 60°C; within the 50°C–60°C range, the fan speed adjusts adaptively.
Mode 06 (Temperature Control Mode): PWM output is 0 below a water temperature of 60°C;
PWM output is 100 above 70°C; within the 60°C–70°C range, the fan speed adjusts adaptively.
