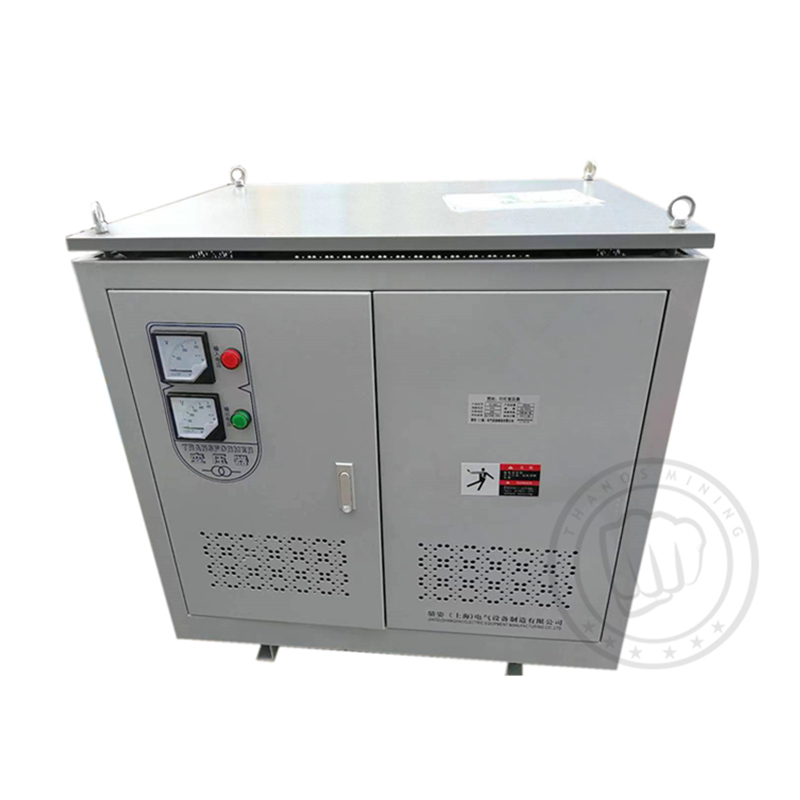

Model |
DG-30kva / DG-70kva |
Product size about |
70kva:length 75* width 55* height 75cm
30kva:length 55* width 45* height 55cm |
Capacity |
30kva or 70Kva |
Weight about |
70kva:200kg
30Kva:130kg |

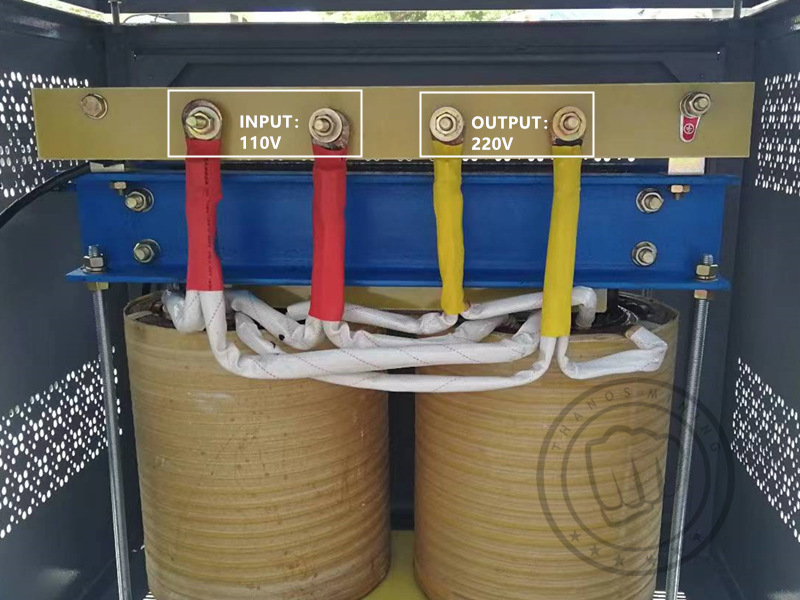

Input voltage AC |
Single phase 110v |
Output voltage AC |
Single phase 220v |
Input Current |
620A MAX |
Output current |
310A MAX |
Output Voltage Accuracy |
±1-3%, the output voltage will change with the input voltage input voltage range ±5% |
Voltage change rate |
≤1.5% |
Output waveform distortion |
No distortion (compared to input waveform) |
Insulation level |
Class F |
work efficiency |
≥85% |
Applicable frequency |
50Hz/60Hz (that is, the input is 50hz, the output is also 50hz, the input is 60hz, and the output is also 60hz) |
Overload capacity |
Allow more than 1 times the rated load to work for 0.3 hours, noise ≤ 60dB (within one meter) |
Temperature rise |
≤65℃ |
Insulation resistance |
≥2MΩ |
Dielectric strength |
2500VAC/1min |
Design life |
15 years |
Operating temperature |
-10~+40℃ Humidity: ≤90%RH without condensation |
Workplace |
Indoor, no corrosive gas, conductive dust, violent vibration and other cooling methods Forced air cooling |
