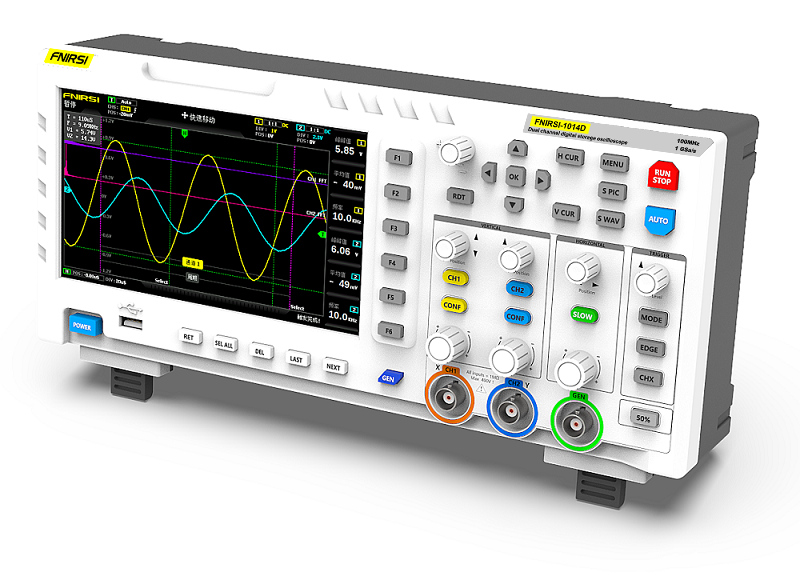

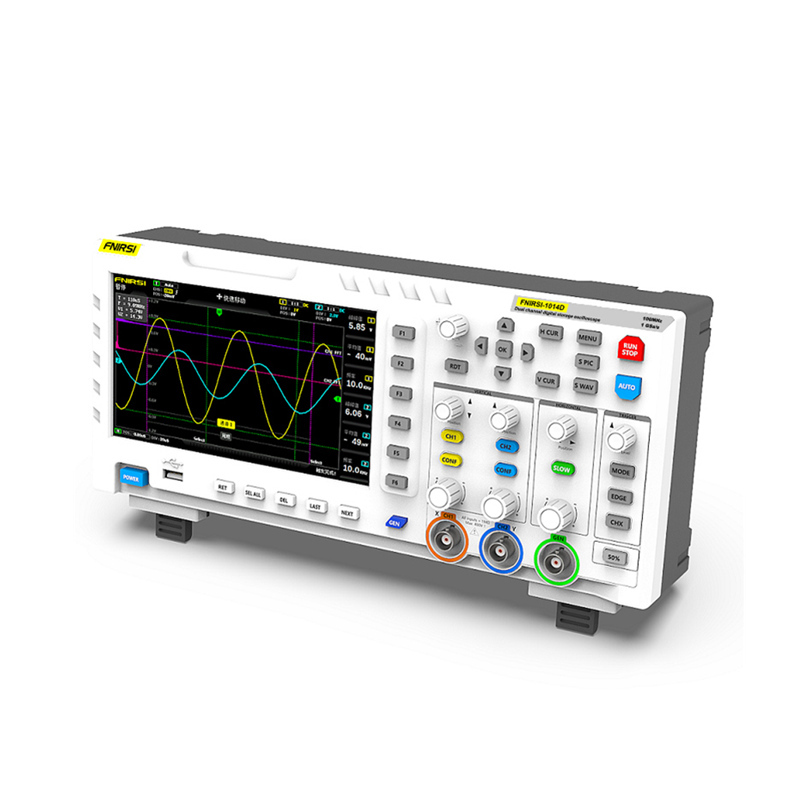

1014D Dual Channel Oscilloscope

$278.00 $0.00
Maximum test voltage: 1X: 40V 10X: 400V
Cursor Type: Horizontal X, Horizontal Y, Trigger Y
Screen size: 7 inches
Screen resolution: 800*480
Waveform storage: 1000 screenshots + 1000 sets of waveforms
Analog Bandwidth: 100MHz
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites
  • Description
1014D Dual Channel Oscilloscope

Maximum test voltage: 1X: 40V 10X: 400V
Cursor Type: Horizontal X, Horizontal Y, Trigger Y
Screen size: 7 inches
Screen resolution: 800*480
Waveform storage: 1000 screenshots + 1000 sets of waveforms
Analog Bandwidth: 100MHz
Waveform Manager: Support
Maximum sampling rate: 1GS/s
Voltage accuracy: +5%
Rise time: <3n
Frequency accuracy: +0.01%
High-precision storage depth: 240Kbit
Input Impedance: 1MΩ
Measurement parameters: 12 kinds
Signal output: 14 kinds
Signal generator: 14 kinds of signal output
Vertical Sensitivity: 50mV - 500V
Time base range: 50S - 10nS
Cutter outputter: support
Coupling method: AC/DC
Trigger Mode: Single/Normal/Auto
Trigger edge: rising edge/falling edge AC/DC
Expansion interface: USB transmission interface
Power supply requirements: 5V 2A/3A/4A
Body size | 310mm * 145mm * 70mm
Accessories: 100X high voltage probe x2, USB cable, power adapter, manual.

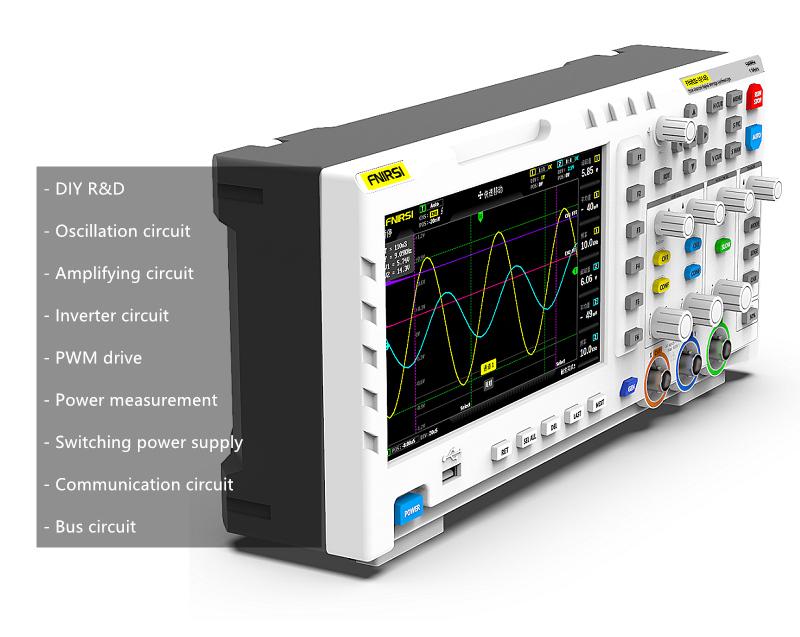

1014-d is a combination of an oscilloscope and a signal generator, with complete functions and strong practicability. It is a cost-effective dual-channel desktop oscilloscope for the maintenance industry and R&D industry;
The real-time sampling rate of the oscilloscope is up to 1 gsa/s, and the analog bandwidth is 100 MHZ*2; the complete trigger function (single/normal/automatic) can be easily realized whether it is a periodic analog signal or a non-periodic digital signal;
Built-in DDS signal generator and original follower (VPP)@2.5 waveform function, all signals are 1Hz frequency step, support 14 kinds of standard function signals and freely customized cut wave signal, from oscilloscope measurement cut wave output to various complex signal interception Part or the whole part is used as the signal generator output signal device, which can store up to 1000 custom signals for clipping;
Built-in high voltage protection module, the maximum withstand voltage is 400V, do not worry about measuring high voltage, the probe will not rotate the gear oscilloscope 10 times to cause accidental burnout.
Large time base rolling mode, which can be used to detect slow changes in level; equipped with one-key high-efficiency AUTO, the measurement waveform can be displayed without tedious adjustment;
According to its 7-inch high-definition 800*480 resolution LCD screen; cursor measurement function, manual reading of amplitude When setting frequency parameters, there is no need to read the background calibration unit and quantity, and no need to obtain peak-to-peak value, just convert the frequency directly;
Extremely convenient storage capacity for screenshots and waveforms, 1gb built-in storage, can store up to 1000 screenshots + 1000 sets of waveform data, the storage process is simple and fast, saving the current waveform, choosing to save the current data without any cumbersome prompts, very convenient.
Powerful waveform picture manager, supports thumbnail browsing, viewing, detail viewing, page turning, deletion, waveform zoom in, zoom out, move and other functions, which is convenient for secondary analysis.

Built-in DDS signal generator
The function signal generator has 14 built-in standard signals (@2.5 VPP),
Sine wave, square wave, triangle wave, sawtooth wave, anti-aliasing, staircase wave, half wave rectification, full wave rectification, exponential wave, logarithmic wave, exponential wave, prescription wave, audio frequency, medical pulse wave, free customized output signal cutoff wave output function,
The maximum frequency of sine wave is 10MHZ, other standard signals can reach 2MHZ, the maximum segment wave output is 1MHZ, and the frequency resolution of all signals can reach 1Hz (step), which is not available in other half-frequency stepping handheld oscilloscopes.


Targeted high-intelligence decoding algorithm, the encoder (knob) of the desktop oscilloscope below 10,000 yuan will start to have poor halogen contact or oxidized contact after using it for about a year.
A large amount of glitch logic is generated during the rotation operation, which prevents the oscilloscope from working properly. Jumps around after adjustment and can no longer be used. This is an unsolvable hardware problem.
However, 1014D specifically analyzed this problem, and finally developed a decoding algorithm that perfectly solves this problem.
Even if the encoder is completely broken, it will not affect the normal use of the oscilloscope at all.
Encoders that have been completely unusable by ordinary oscilloscopes can still run perfectly after being replaced with 1014D.

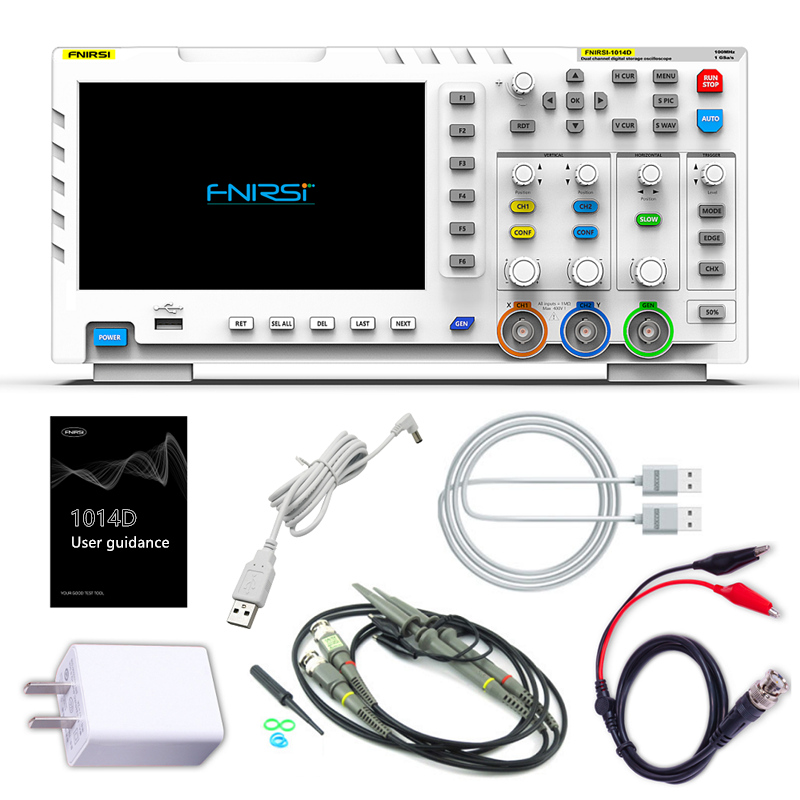

Schematic diagram of accessories:
