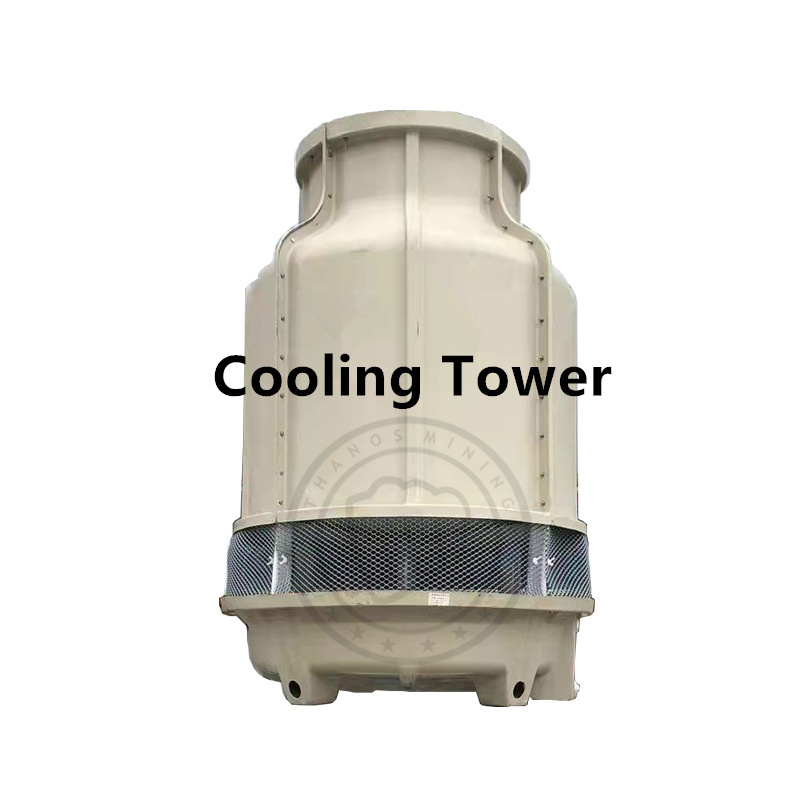

Miner oil cooling equipment cooling water tower, Miner immersion cooling system external water circulation cooling tower.
This equipment is used to cool the Miner through the oil cooling box, so that the temperature of the hash board is lower than the ambient temperature, so as to ensure the normal operation or overclocking of the Miner, reduce noise and power consumption, and increase revenue.
The equipment is composed of inlet and outlet water joints, which are used to connect the heat exchanger of the oil cooling equipment, take away the heat of the heat exchanger, and achieve the cooling effect. It is a key component of oil cooling tanks and oil cooling facilities.
According to our actual measurement experience, a 10T water tower can supply 2-3 oil-cooled boxes (a single oil-cooled box can accommodate 6 sets of Antminer S17 or S19), and the results are as follows:
10T water tower supplies 2-3 oil-cooled boxes, about 13-18 S17 or S19
20T water tower supplies 5-6 sets of oil-cooled boxes, about 26-36 sets of S17 or S19
10T water tower key parameters:
Motor power: 0.18kw
Flow: 7.8m³/h
Water flow lifting range: 18Kpa
Float size: 15mm
Inlet and outlet connector diameter: 40mm
Size: 175cm(185cm)*106cm
Kind tips:
Due to the possibility of component upgrades at any time, the size and volume of the water tower may change slightly, but the flow and power will not change. Therefore, the size ratio of the item you receive may be slightly different, and we will send the corresponding item according to the stock availability.

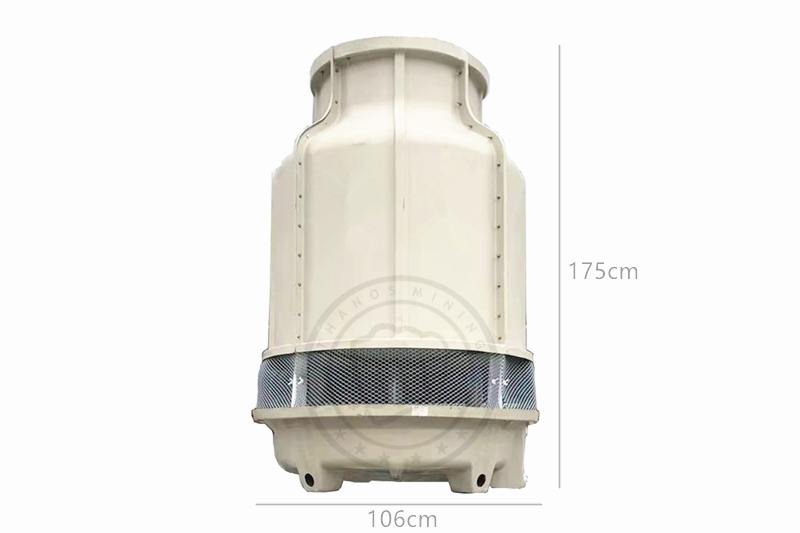

10T size:

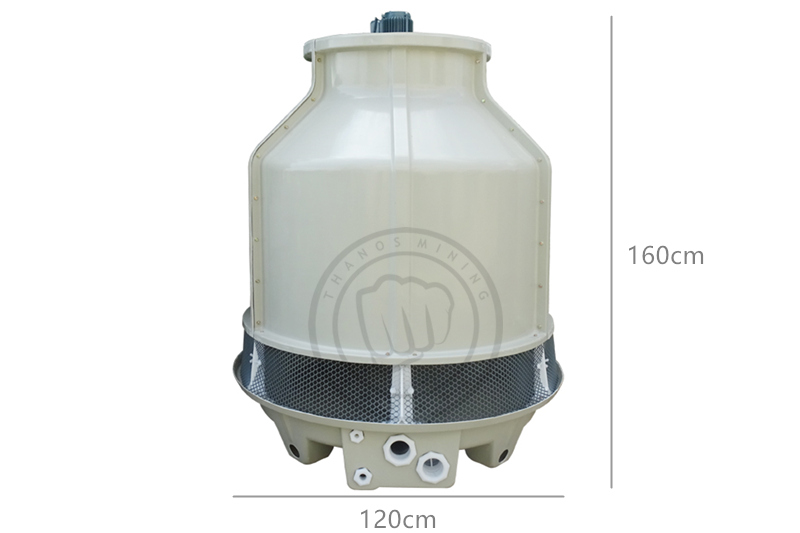

20T size:

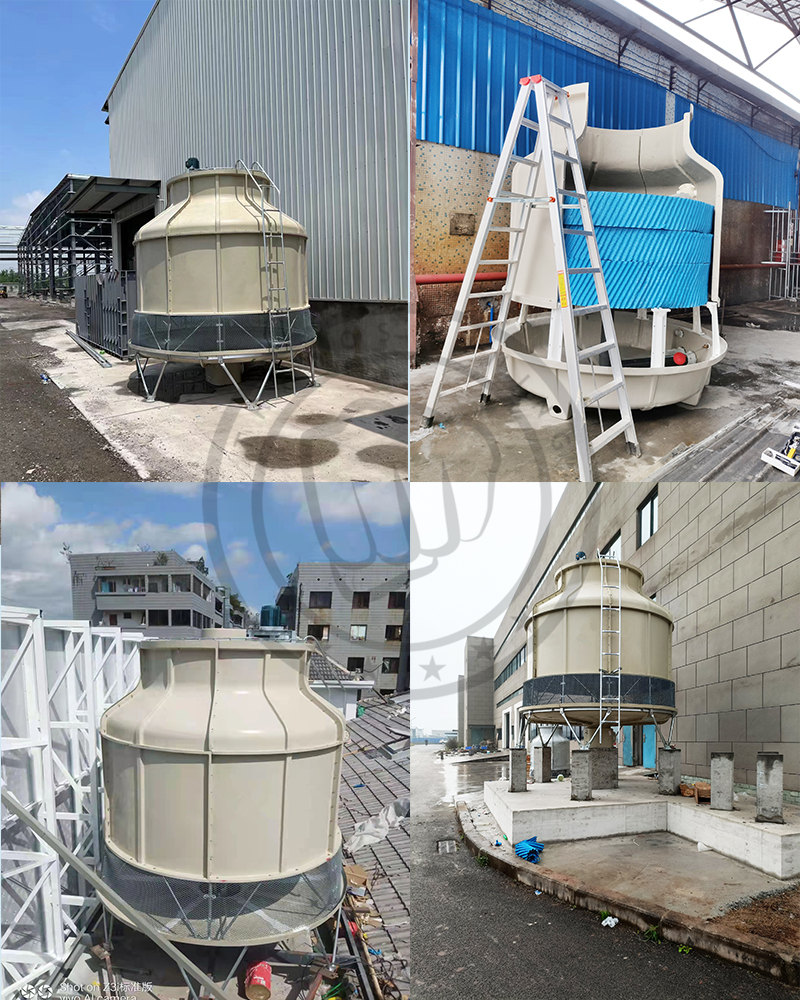

Internal structure layout
The housing is made of fiberglass, so you don't need to worry about corrosion or damage, even in harsh outdoor environments for extended periods of time.

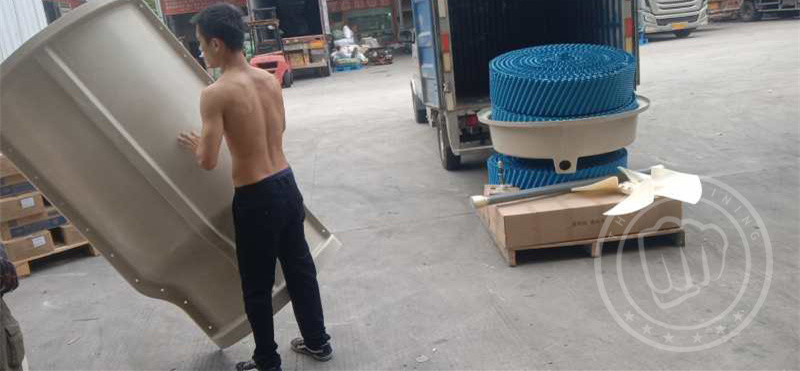

Modular design for easy transport and installation.
It can be disassembled as a whole, which is convenient for small car transportation.
