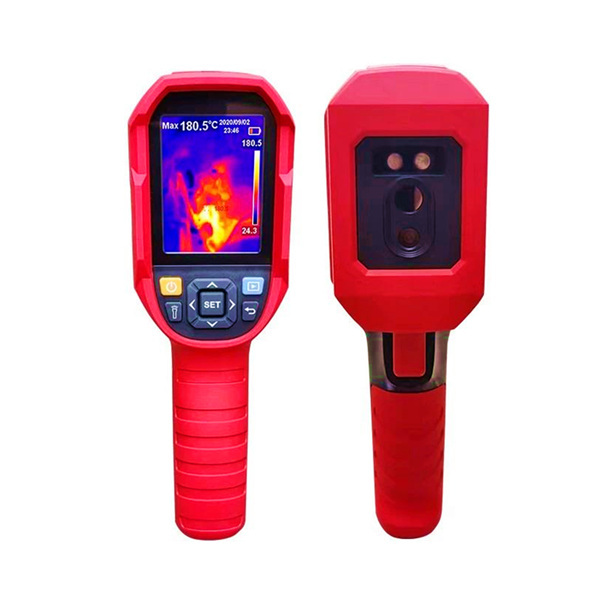

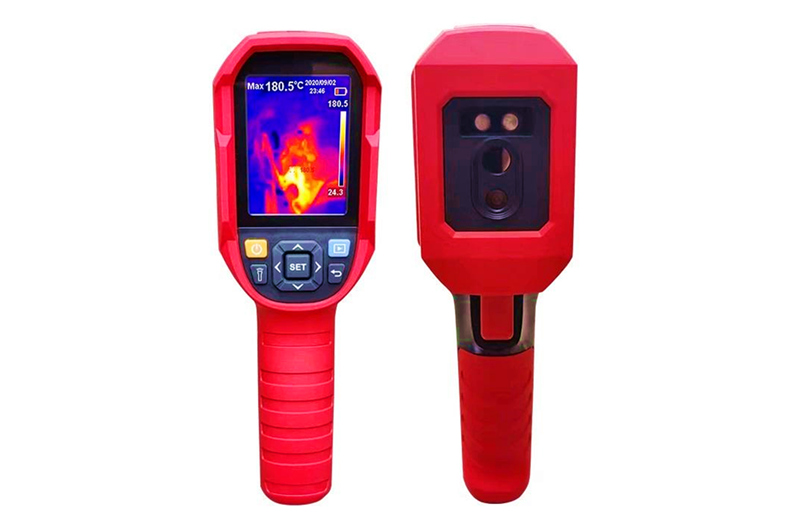

UNIT-T UTi260B+ Infrared Thermal Imager

High-precision WIFI infrared thermal imager, temperature measurement range: -20℃ to 550℃
Infrared resolution: 256x192, frame rate: 25Hz
Supports WIFI/mobile APP/PC software, 2X super-resolution (512x384)
200W pixel visible light lens, 5 temperature measurement points, 3 rectangles
Can simultaneously display 6 high and low temperature alarms, four image modes
Supports Simplified Chinese and English
Built-in 32GB storage, equipped with a high-definition anti-glare IPS screen

Charging voltage: 5V/2A
Built-in lithium battery: 5000mAh/3.6V
Dimensions: 236*75.5*86mm
Weight: 0.6kg
Please see the end of this page for detailed parameters.

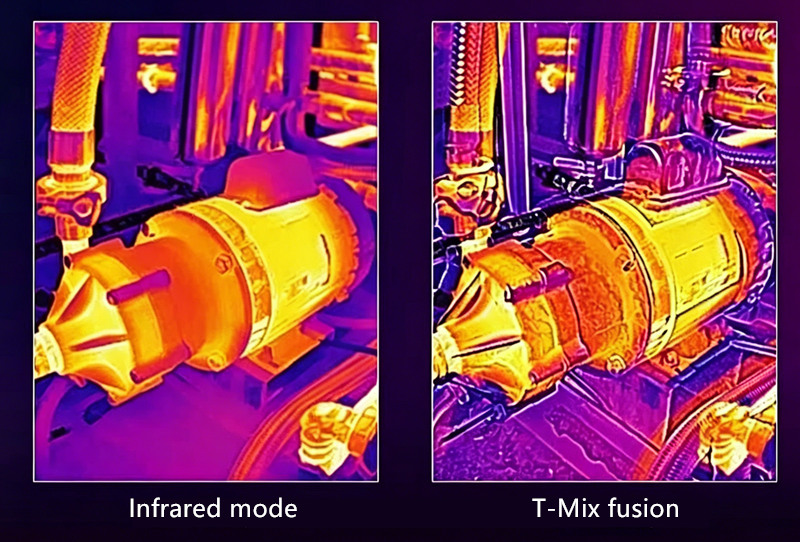

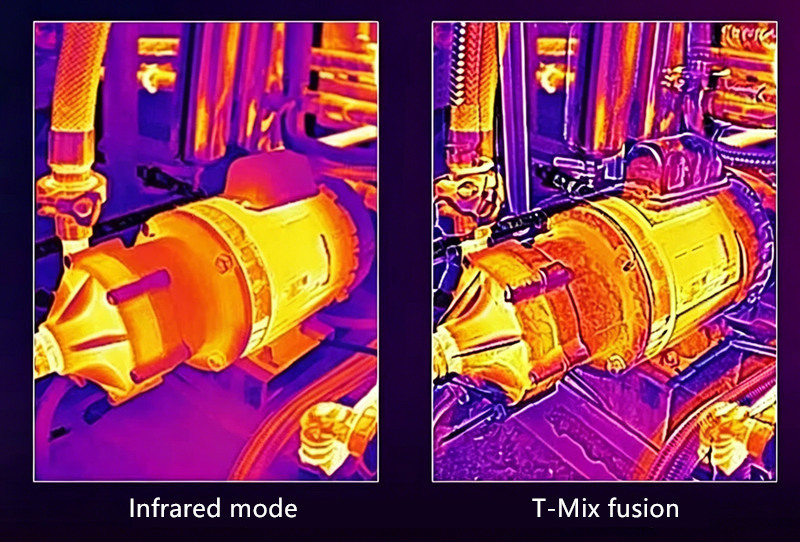

Supports T-Mix fusion. The product comes with the latest T-Mix 2.0 version,
whose adaptive dual-band image fusion algorithm can adapt to different shooting distances and achieve automatic fusion calibration via a button,
allowing the image to present the seen details more clearly.

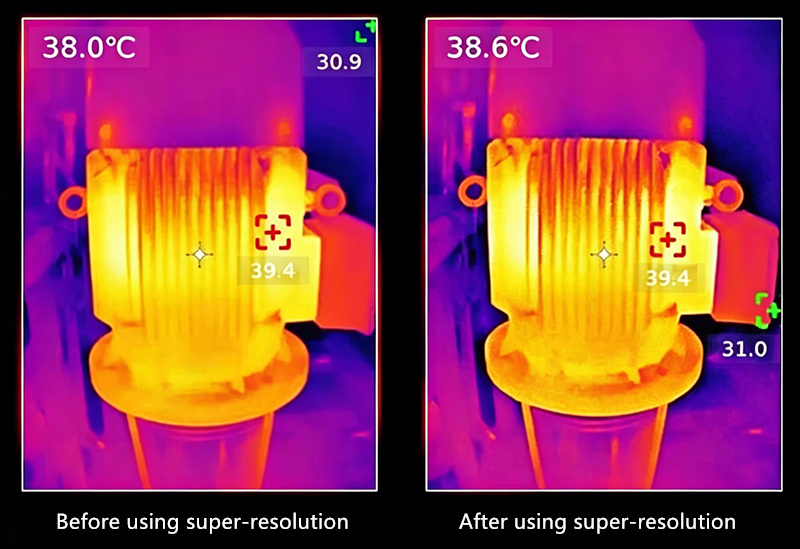

Supports 2x Super-Resolution for Richer and More Detailed Images
This device features 2x Super-Resolution (512x384),
allowing for the acquisition of higher resolution infrared images.

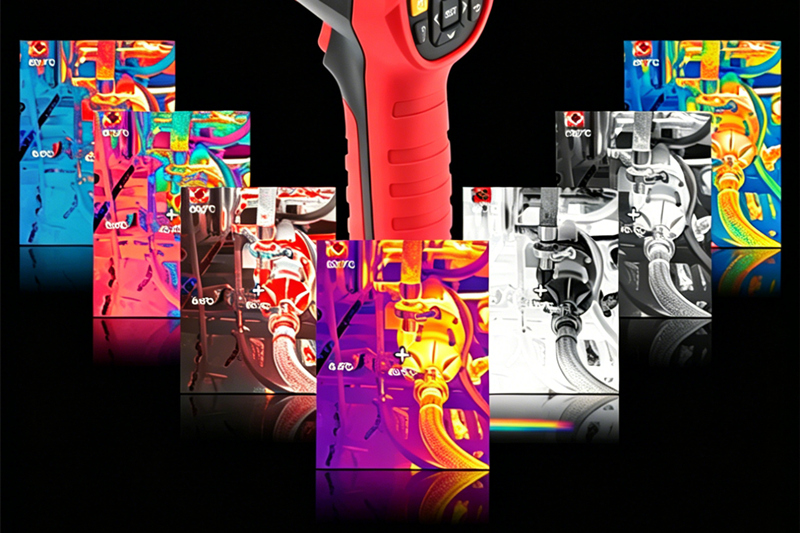

Seven color palettes are available, offering rich palette functionality,
allowing users to select the appropriate palette for different testing scenarios and better highlight temperature differences.
The highest and lowest temperature points can be displayed in full-screen real-time.

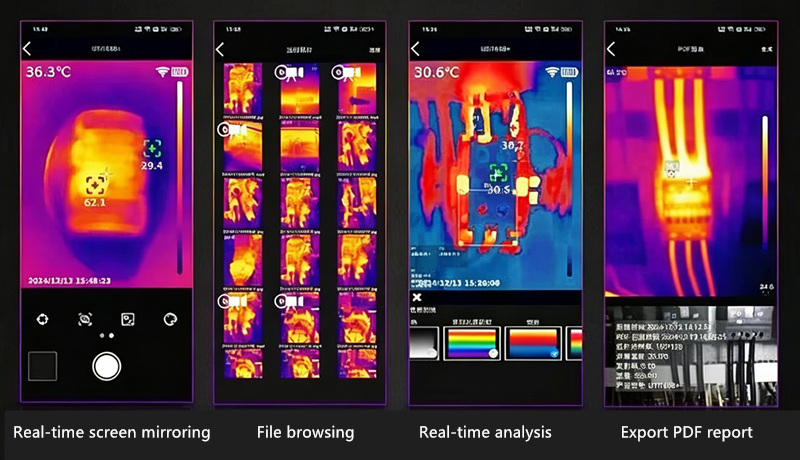

This product comes equipped with professional mobile application analytics software. Once connected,
users can view and perform secondary analysis on their devices,
as well as project and analyze photos in real time.
A PDF report can be exported after the analysis is complete.

The screen can display 5 dots or 3 rectangles (a total of 6 temperature measurement tools).
Dots can simultaneously monitor the temperature at different locations,
while rectangles help users understand the average temperature or highest/lowest temperature over a larger area.

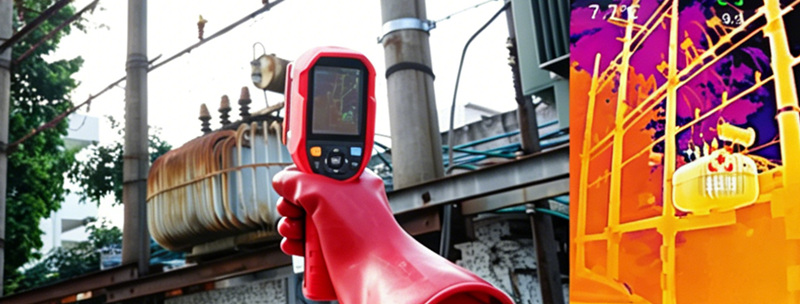

Remote testing of high-voltage electrical equipment to ensure human safety;
accurate data; strong anti-interference capability.

It performs equally well in both low-pressure and high-pressure environments,
and its portable and compact design makes it suitable for various confined spaces.

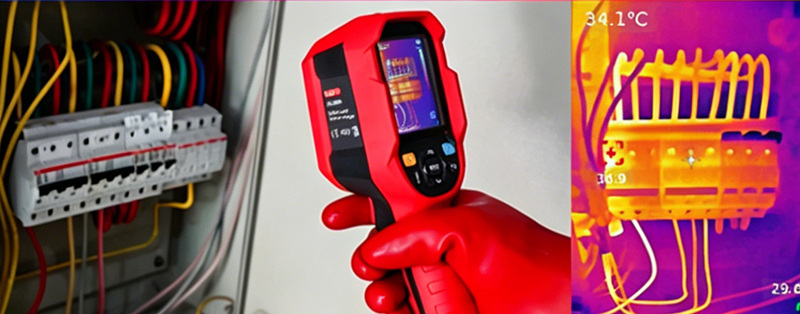

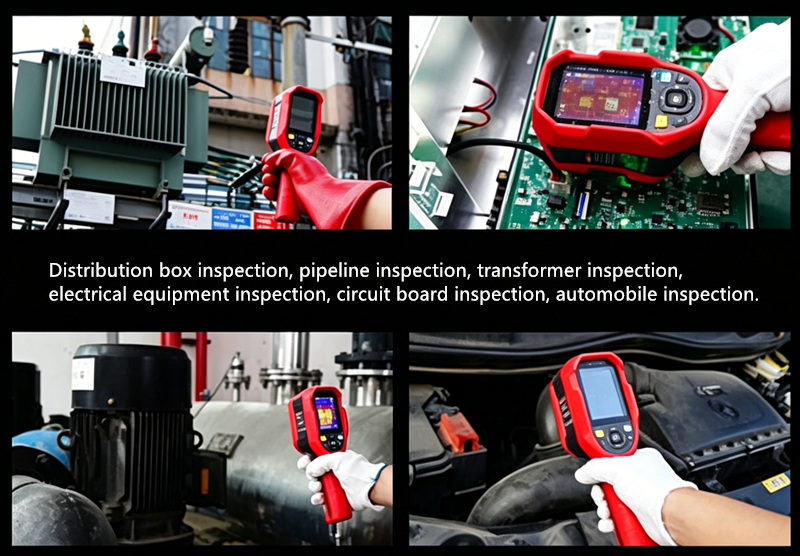

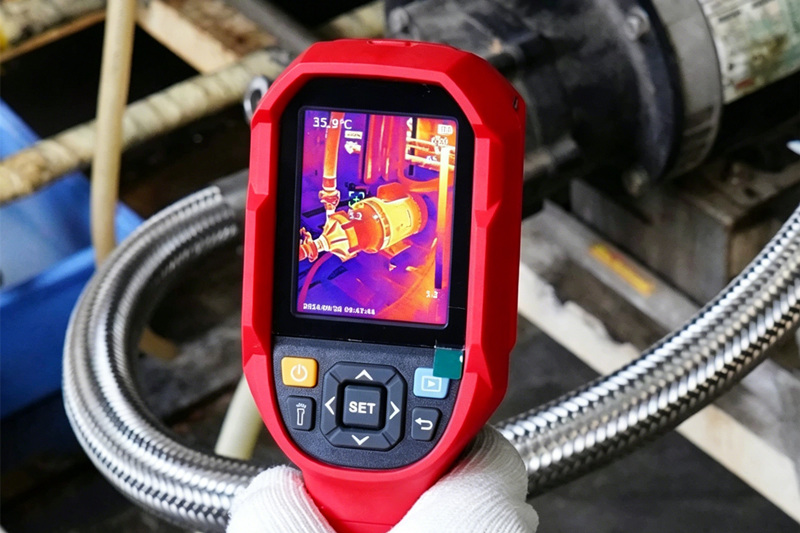

Many more applications await your discovery, including temperature screening for electrical distribution cabinets,
HVAC equipment, circuit board temperature detection, and automotive repair.

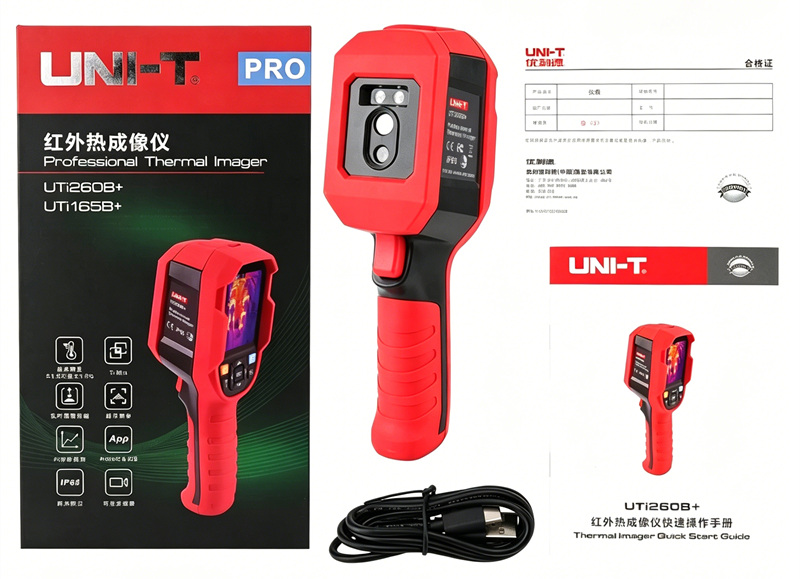

Packing list:

Detailed parameters:

Product Model:	UTi260B+
Infrared Resolution:	256x192
Super Resolution:	512x384
Infrared Response Band:	8~14um
Pixel Size:	12um
Frame Rate:	≤25Hz
Thermal Sensitivity/NETD:	<50mK @25°C
Temperature Response Time:	≤500ms
Temperature Accuracy:	±1.5°C/±1.5%
Thermal Imaging Lens Focal Length:	3.2mm
Spatial Resolution/IFOV:	3.75mrad
Temperature Resolution:	0.1°C
Visible Light Resolution:	200W pixels
Color Palette:	Iron Red/Rainbow/White Heat/Black Heat/Red Heat/Lava/High Contrast Rainbow
Image Format:	JPG
Memory:	32GB
Data Interface:	Type-C USB
Built-in Battery:	5000mAh
Charging System:	5V/2A supports PD protocol charger
Operating Temperature:	-10°C~50°C
Protection Rating:	IP65
Automatic shutdown:	Off, 5, 10, 20, 30, 45, 60, 90 min
