Description

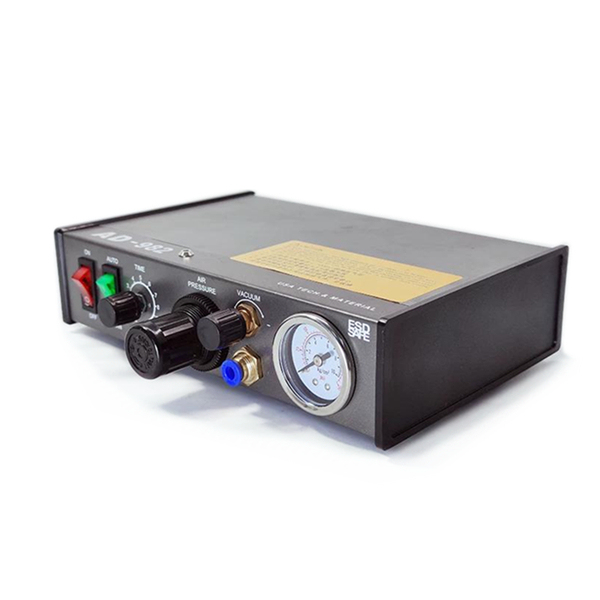

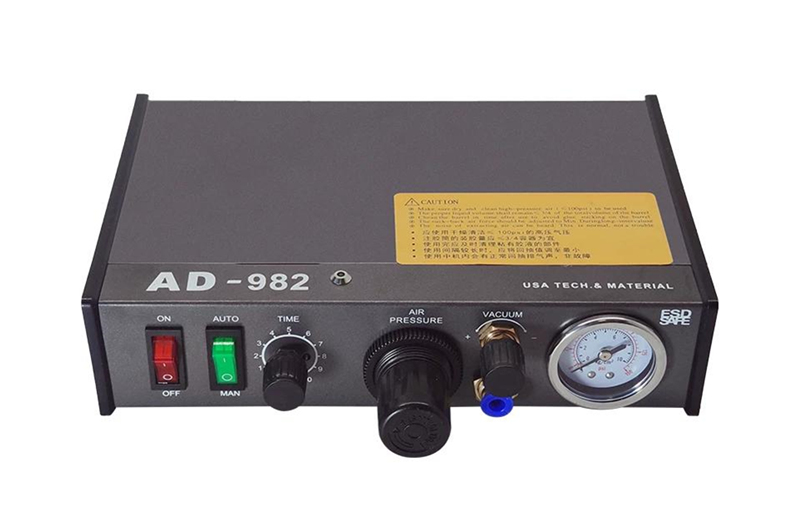

Semi Automatic Glue Dispenser AD-982

The AD-982 semi-automatic dispenser is precision-engineered to deliver accurate dispensing with stable pressure.
It features a built-in high-performance pressure regulator and a high-power pure copper transformer to ensure precise, effective control.
A high-speed solenoid valve enables rapid response times, allowing for the instantaneous opening and closing of the diaphragm valve.
The included foot pedal makes dispensing operations smooth and effortless.
It is compatible with over 90% of paste-like materials on the market, such as thermal paste,
instant adhesives, red glue, yellow glue, silicone, epoxy resin, lubricating oil, threadlockers, flux, and solder paste.
Important Note:
This unit is a pneumatic dispenser and requires an air compressor to operate.

Key Specifications:
Input Voltage: 220–240V AC, 50Hz
Dimensions: 235 × 225 × 63 mm
Input Air Pressure: 2.5–7 bar (35–100 psi)
Output Air Pressure: 0.1–5.5 bar (1–78 psi)
Accuracy: ±0.5%
Minimum Dispensing Volume: 0.01 ml
Automatic Timing: Adjustable ranges (0.01–1s, 0.1–10s, 0.2–20s, 0.3–30s)
Manual Timing: Continuous dispensing or single-shot dispensing via footswitch

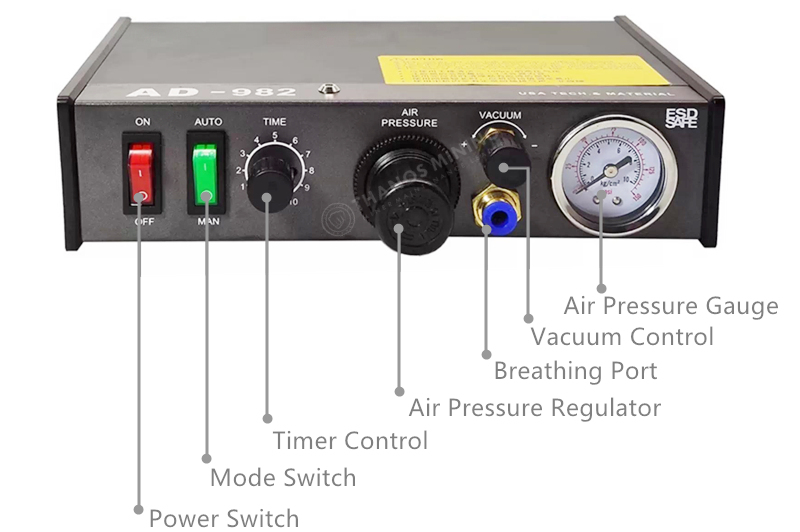

Description of functional interface and operation buttons:

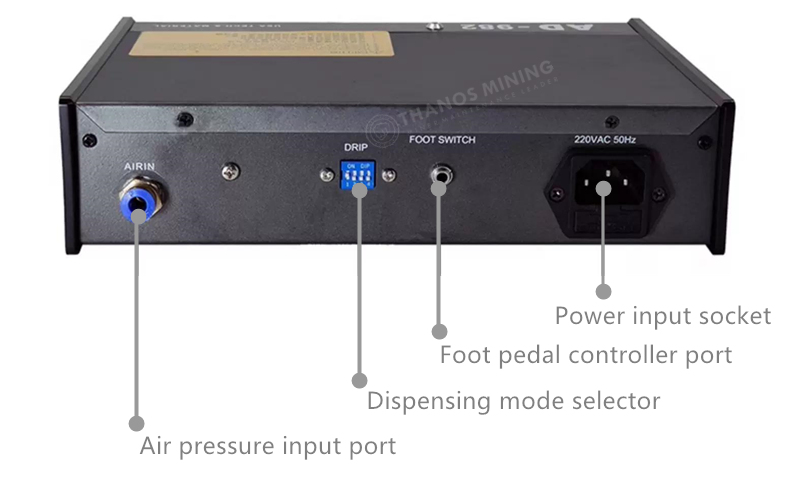

Description of rear ports and micro control buttons:

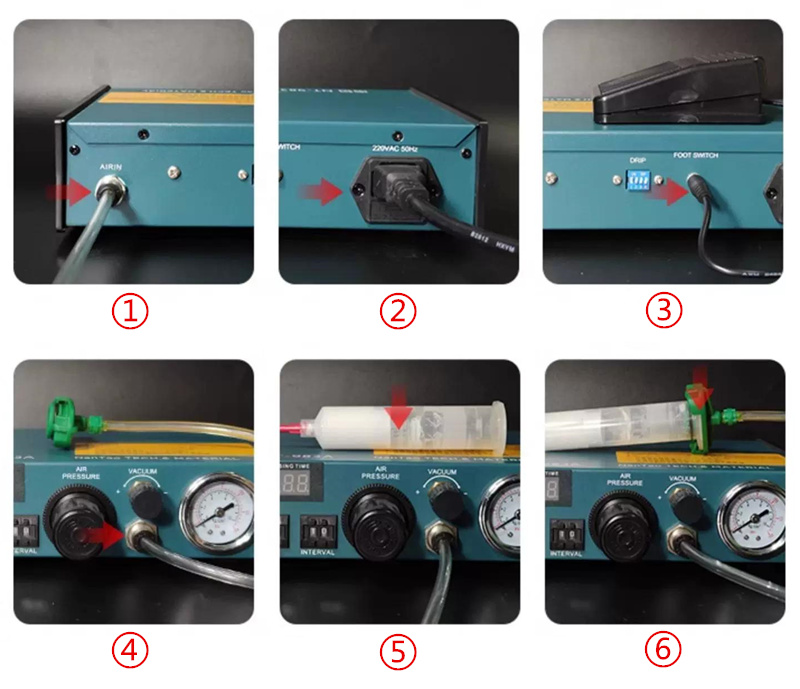

Connection methods and steps (Important):
1. Connect the air supply.
2. Connect the power supply.
3. Connect the manual or foot pedal control.
4. Connect the adapter air hose.
5. Load the adhesive into the syringe.
6. Install the adapter.

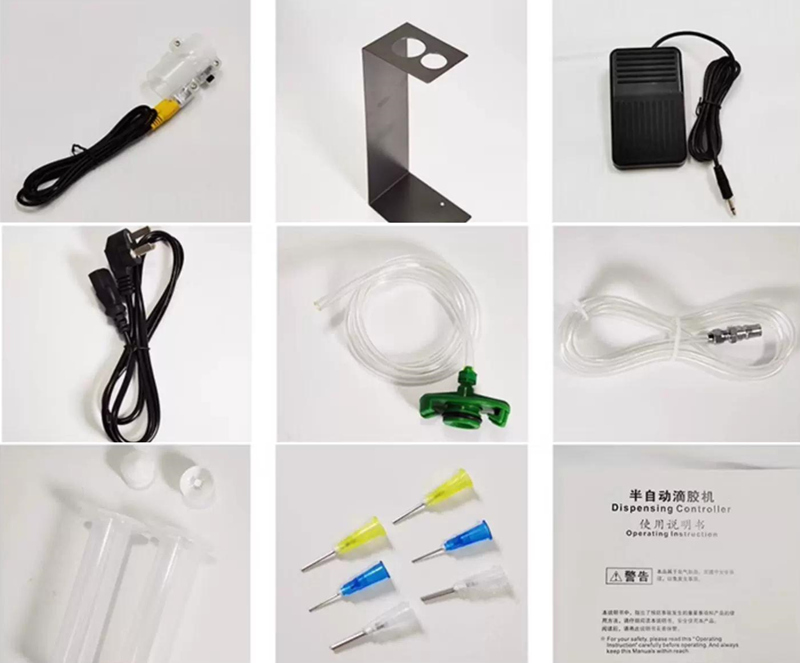

Included Accessories:
Dispenser unit ×1, manual control switch ×1, power cord ×1, stand ×1, connecting tube ×1
Foot pedal switch ×1, air inlet tube ×1, syringe barrels ×2, dispensing needles ×6, user manual ×1
