ISLUSBEVAL1Z Renesas USB TO PMBus ROHS COMPLIANT
Type: USB to PMBus
Tool for evaluation: C8051F381-GQ
Interface type: USB
Product Type: Interface Development Tools
Product: Adapters
Type: USB to PMBus
Tool for evaluation: C8051F381-GQ
Interface type: USB
Product Type: Interface Development Tools

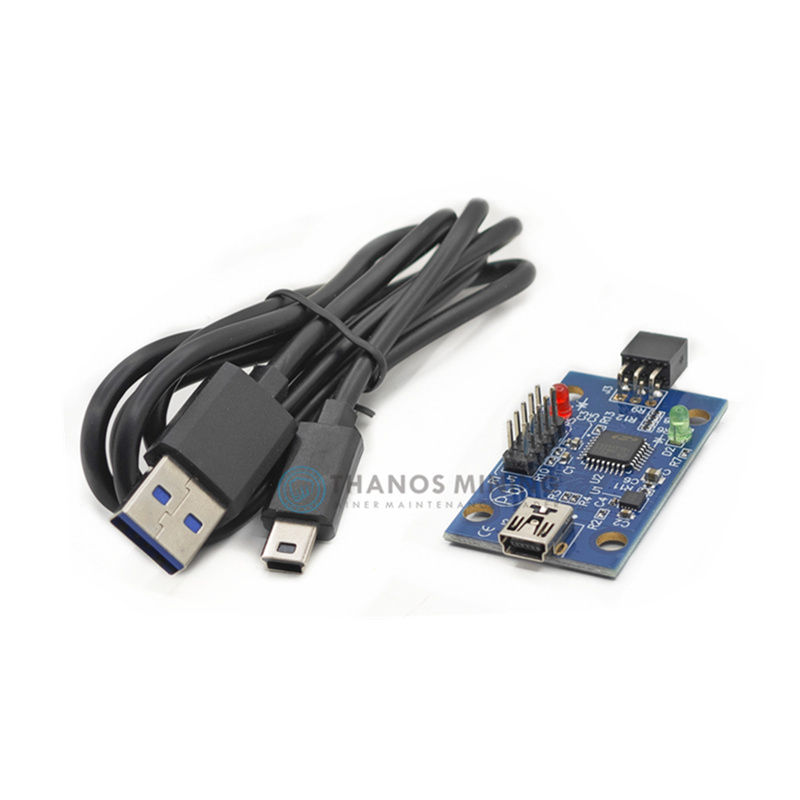

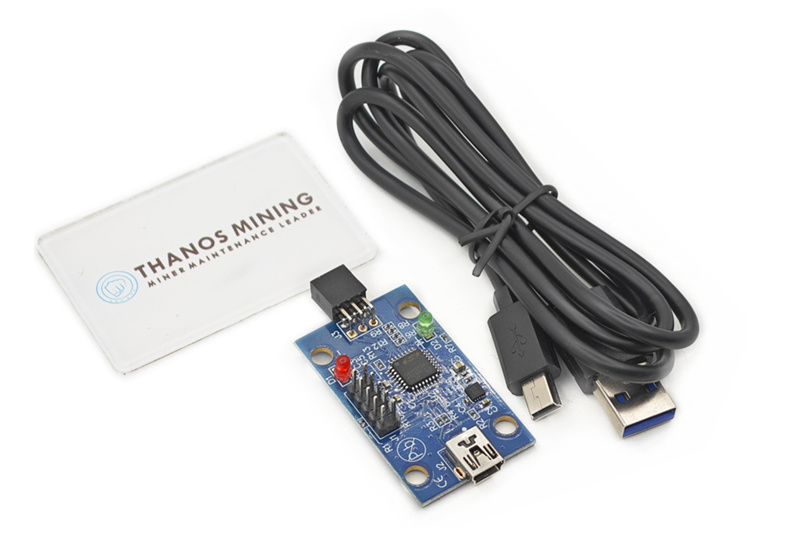

Renesas Electronics ISLUSBEVAL1Z USB to PMBus™ Adapter
Renesas Electronics ISLUSBEVAL1Z USB to PMBus™ Adapter is used to link demonstration, evaluation, and reference boards with a PMBus connector to the USB port of a PC. The USB to PMBus adapter is powered from the USB output of the host PC. The USB interface utilizes the USB Mini format, and the output uses a standard 2 row, 6 pin header on 0.100 inch centers. The PMBus command set is accessed by using the PowerNavigator™ Graphic User Interface (GUI) software from a PC running Microsoft Windows.
POWERNAVIGATOR™ SOFTWARE
PowerNavigator™ allows simple configuration and monitoring of multiple digital-DC devices using a PC with a USB interface. Combined with the drag-and-drop GUI interface, PowerNavigator makes it easy to configure and change parameters, telemetry, or rail sequencing for digital power supply design.
Download PowerNavigator from Renesas
FEATURES
Includes USB cable
Compatible with PowerNavigator
Compatible with Power Configuration Tools
Supports Multi-Master PMBus systems
