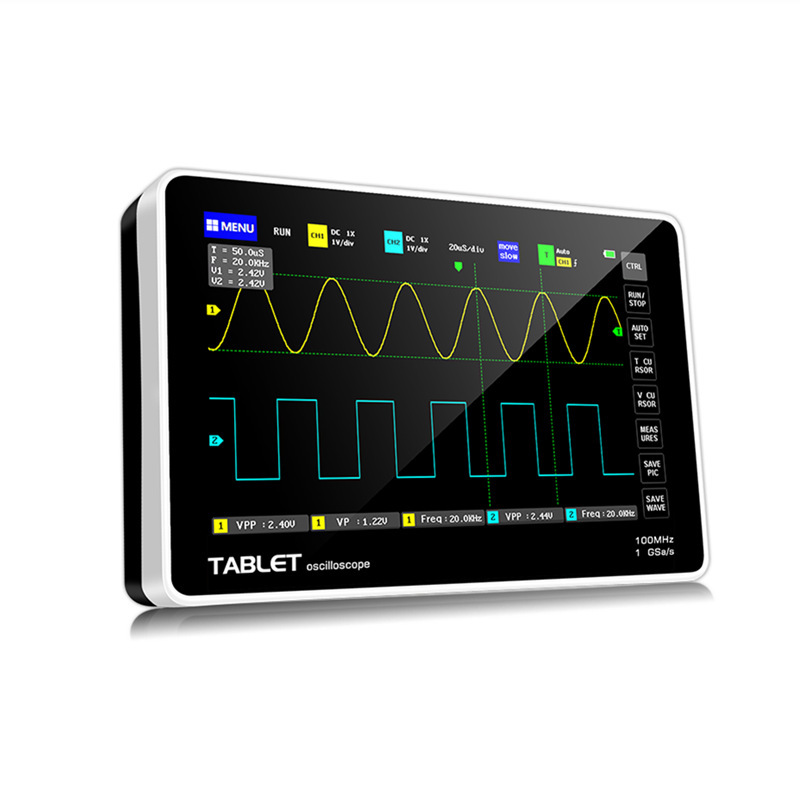

Parameter Model: FNIRSI 1013D upgrade version Number of channels: 2 Screen size: 7 inches Screen resolution: 800*480 Analog Bandwidth: 100MHz Maximum sampling rate: 1GS/s Rise time: <3nS Storage depth: 240Kbit Input impedance: 1MΩ Vertical sensitivity: 50mV~500V Time base range: 50S~10nS Trigger Mode: Single/Normal/Auto Trigger edge: rising edge/falling edge Coupling method: AC/DC Maximum test voltage: 1X: 40V 10X: 400V Cursor Type: Horizontal-X, Horizontal-Y, Trigger-Y Support: Roll Mode, One-Key AUTO, Waveform Manager Waveform storage: screenshot*1000, waveform*1000 Measurement parameters: 12 kinds Battery capacity: 6000mAh Continuous use time: 4 hours Expansion interface: USB transmission Charging requirements: 5V 2A/3A/4A Body size: 184mm*124mm*50mm Accessories: high voltage probe*2, USB cable, charger, manual

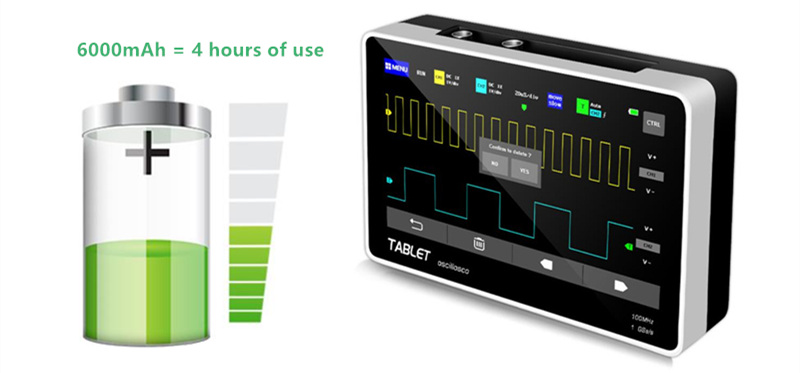

Built-in 6000mAh lithium battery, can be used continuously for 4 hours, Smart to prevent burnout Both sets of input channels have built-in high-voltage protection modules, which can tolerate high-voltage input of up to 400V. There is no need to worry about the equipment burnout accident caused by not moving the probe to the 10X position when testing high-voltage.

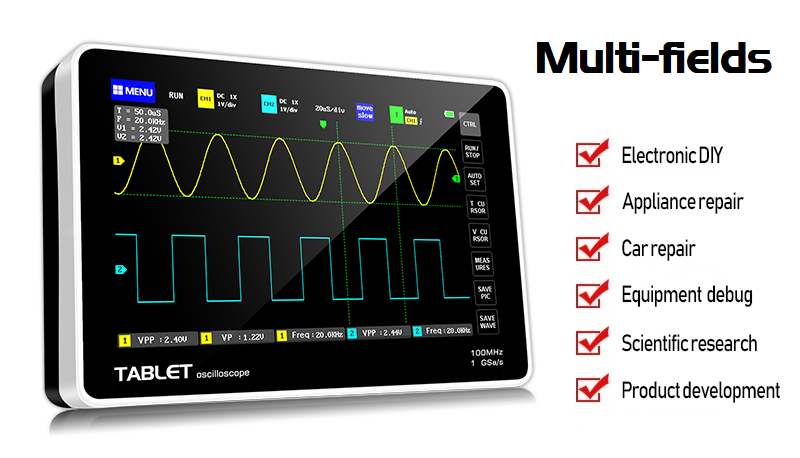

1013D upgraded version of the portable oscilloscope has the characteristics of high precision and high reliability, and is widely used in: Circuit board maintenance (hash board ASIC chip detection), electronic production, automobile maintenance, equipment debugging, scientific research and education, product development...

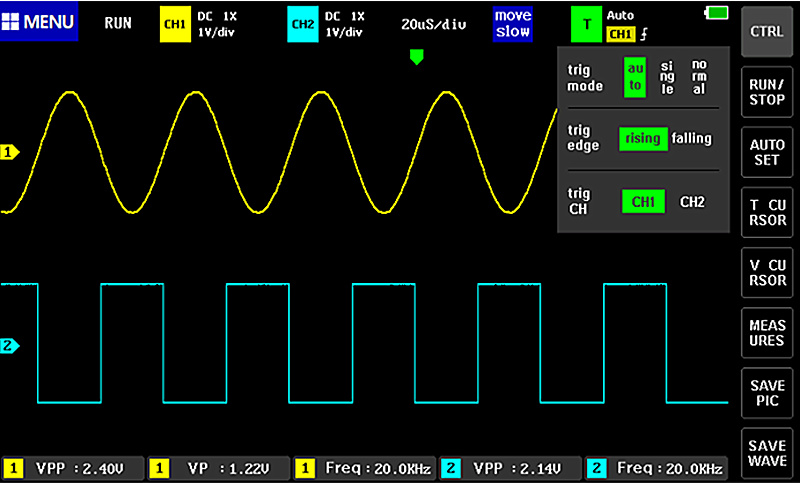

With automatic, single, normal, 3 trigger modes, Combined with high-precision detection function and portable and compact body, it simplifies every complicated work for you.

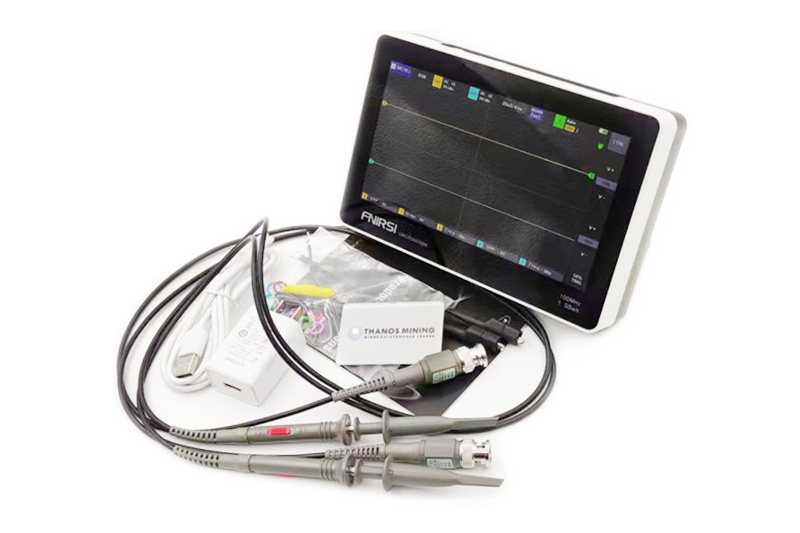

Shipping list: Oscilloscope host*1 High voltage probe*2 USB cable*1 Charger*1 Manual*1
Please note: This product is in English by default.
