Multifunctional BGA Repair Station

$220.00 $0.00
High quality and stable BGA rework station, 3 in 1 multifunctional repair station
PID program-controlled temperature control technology, the product adopts microcomputer processor PID program-controlled temperature control technology, and the temperature recovers quickly.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
  • Description

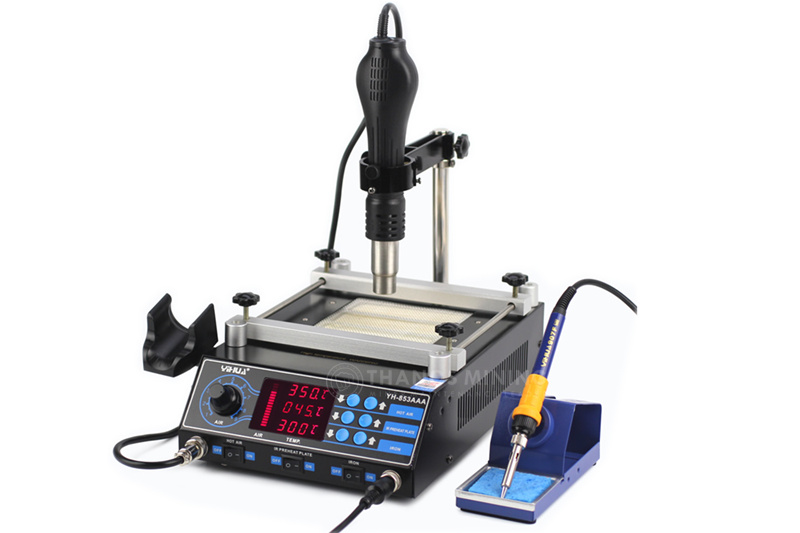

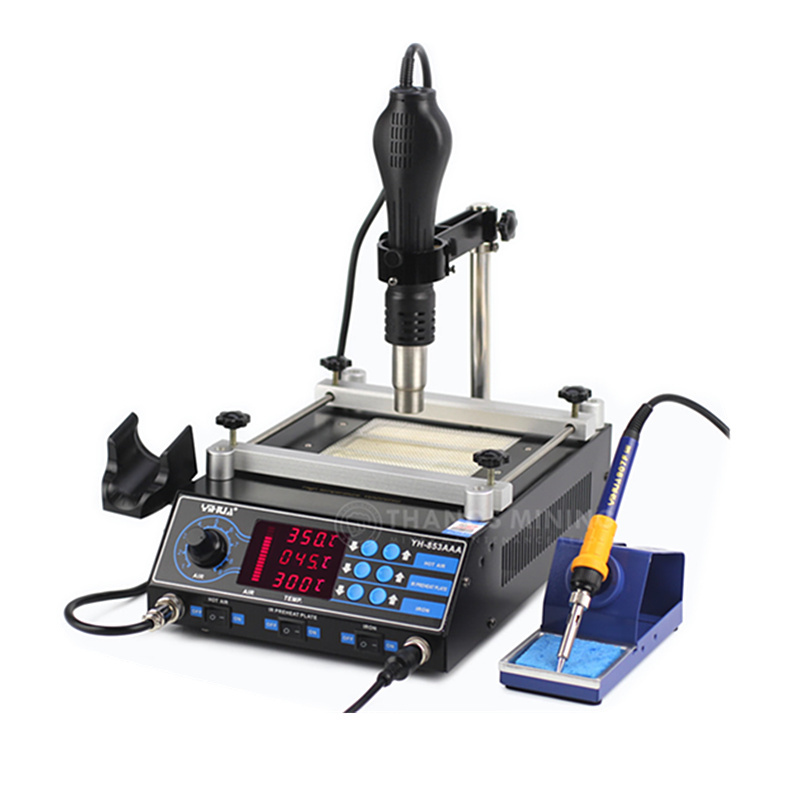

Multifunctional BGA Repair Station

High quality and stable BGA rework station, 3 in 1 multifunctional repair station
PID program-controlled temperature control technology, the product adopts microcomputer processor PID program-controlled temperature control technology, and the temperature recovers quickly.
Each part of the machine has a self-test function
Temperature Correction Function
This function is used when the actual temperature of the heat-generating parts of the machine deviates from the displayed temperature due to environmental influences or replacement parts. It can be corrected by this function. Corrected temperature range: 50°C
Fahrenheit/Celsius display temperature function A temperature display mode designed to meet the market needs of different regions.


Product parameters
Type 3 in 1 Hot Air Desoldering Station
Model 853AA
Machine power 1270W
Dimensions length 320x width 220x height 270mm ± 5mm
Weight 7kg
Working environment 0~40°C/32~104°F
Storage environment 20~80°C/-4~176°F
Storage humidity 35%~45%

Preheating table parameters
Temperature range 50~400°C
Temperature Stability ±2°C (Static)
Display form LED digital display
Area  120x120mm

Airsoft parameters
Airflow Type Brushless Fan Gentle Wind
Air flow 120L/min
Temperature range 100°C~480°C
Temperature stability ± C (static)
Display form LED digital display
Handle cable length >100cm

Desoldering Station Parameters
Temperature range 200°C~480°C
Temperature Stability ±1°C (Static)
Welding tip to ground voltage <2mV
Welding tip resistance to ground <2ohm
Display form LED digital display
Heating core type High-power imported heating core




High quality brushless motor
Quiet design, soft and even wind
The fan standard has a long service life, the wind is soft,
Uniform air volume: 120L/min



The electric soldering iron adopts a high-power heating core
High power, fast temperature rise, fast temperature compensation,
In addition to adapting to the welding of general solder joints, it can also easily realize the desoldering of thick terminals with large solder joints and miscellaneous and difficult solder joints.


Split air gun, more convenient to replace, safe interface, more assured to use

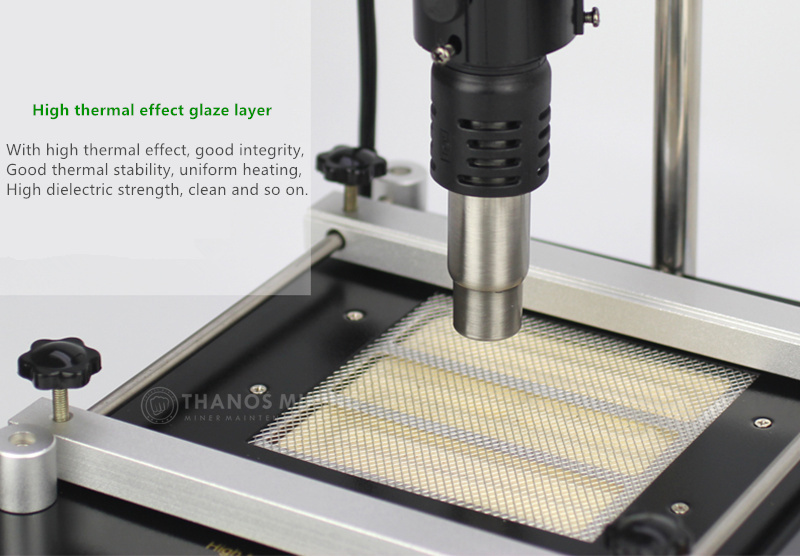

Glaze layer with high thermal effect
The preheating table adopts the glaze layer with high thermal effect and ceramics with good thermal shock performance as the substrate.
High-quality nickel-chromium alloy wire is sintered at one time,
It has high thermal effect, good integrity and good thermal stability,
Heating average high insulation strength, clean and hygienic, easy to install and so on.
