Name: Miner dedicated stainless steel quick connector PC8-G02 PC8-G01 PC10-G02 PC10-G01
Brand: THANOS MINING
Price: 1 USD
Availability: InStock

Sales Service: WhatsApp / Telegram

Home > Tools / Accessories > Miner dedicated stainless steel quick connector PC8-G02 PC8-G01 PC10-G02 PC10-G01

1/1

Miner dedicated stainless steel quick connector PC8-G02 PC8-G01 PC10-G02 PC10-G01

$1.00

This product is optimized for Miner water cooling.
The valve body and piston are made of stainless steel,
and the sealing rings are made of high-temperature resistant rubber,
with a temperature resistance of up to 180 degrees Celsius.
Miner dedicated stainless steel quick connector PC8-G02 PC8-G01 PC10-G02 PC10-G01

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

Miner dedicated stainless steel quick connector PC8-G02 PC8-G01 PC10-G02 PC10-G01

This product is optimized for Miner water cooling.
The valve body and piston are made of stainless steel,
and the sealing rings are made of high-temperature resistant rubber,
with a temperature resistance of up to 180 degrees Celsius.

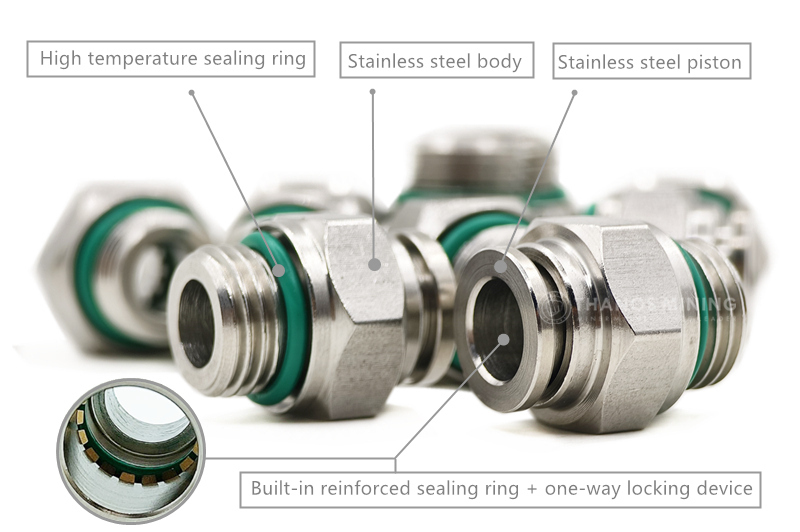

It adopts a one-way locking and double sealing ring structure (threaded and inside the piston).
Tests have shown that after 6 months of continuous operation at a water temperature of 80 degrees Celsius,
its sealing performance and oxidation resistance have not diminished.

Model	Thread specifications	Water pipe outer diameter
PC8-G02	G1/4	8mm
PC8-G01	G1/8	8mm
PC10-G02	G1/4	10mm
PC10-G01	G1/8	10mm

Both the main body and piston are made of stainless steel,
and the sealing rings are made of high-temperature resistant rubber,
offering better temperature resistance and stability in high-temperature environments compared to ordinary pneumatic actuators.
The one-way locking device is stable and reliable, facilitating quick connection and pipeline deployment.

Suitable for water distribution and channel modification in Miner water cooling systems,
G1/4 thread specification, suitable for various equipment.

Related Products:

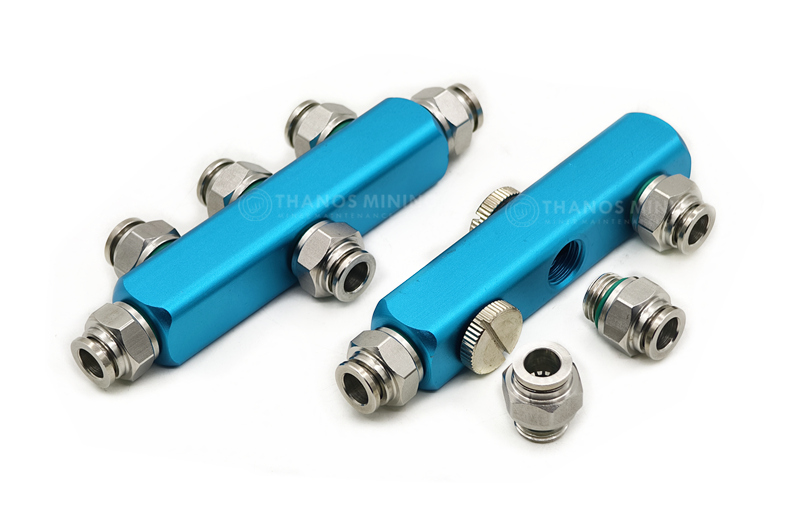

Miner Water-Cooled Aluminum Alloy Manifold
