The TBL-DES H93B desoldering station has the characteristics of rapid heating, air purification, large color screen, and automatic sleep mode.
TBL-DES H93B air purifier soldering station

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites

1/1

Description

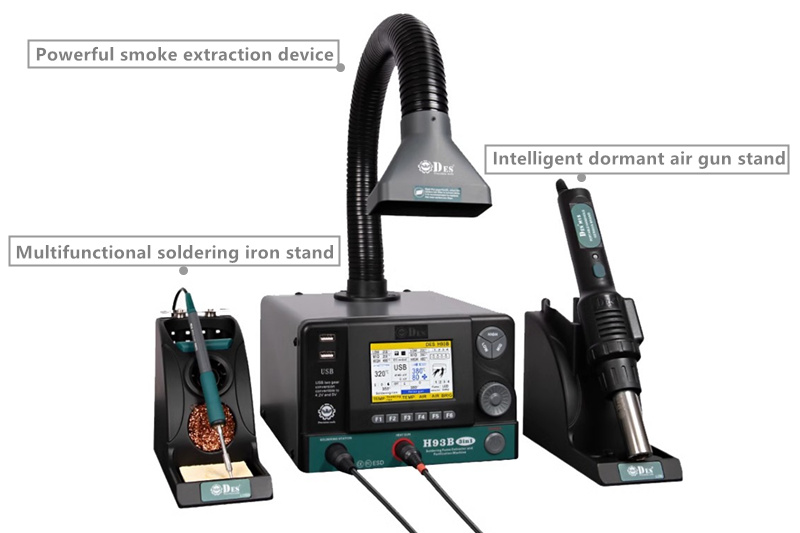

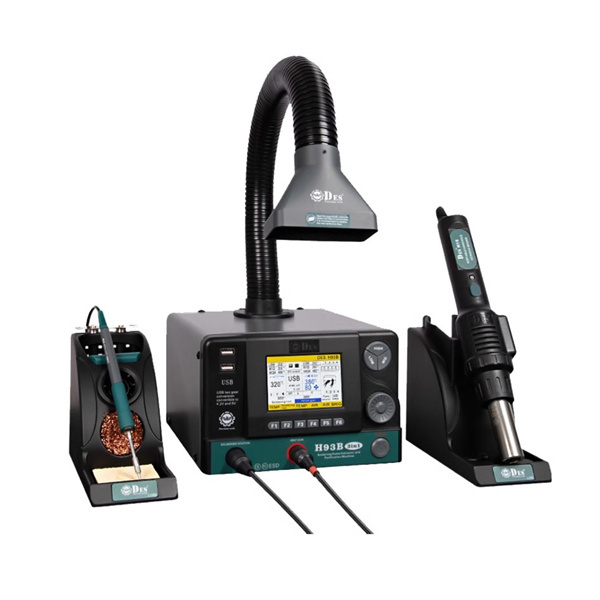

TBL-DES H93B Multi-function combined soldering station

The TBL-DES H93B desoldering station has the characteristics of rapid heating, air purification, large color screen, and automatic sleep mode.
It is an ideal repair tool for maintenance departments and private studios
It has stable quality and high reliability.

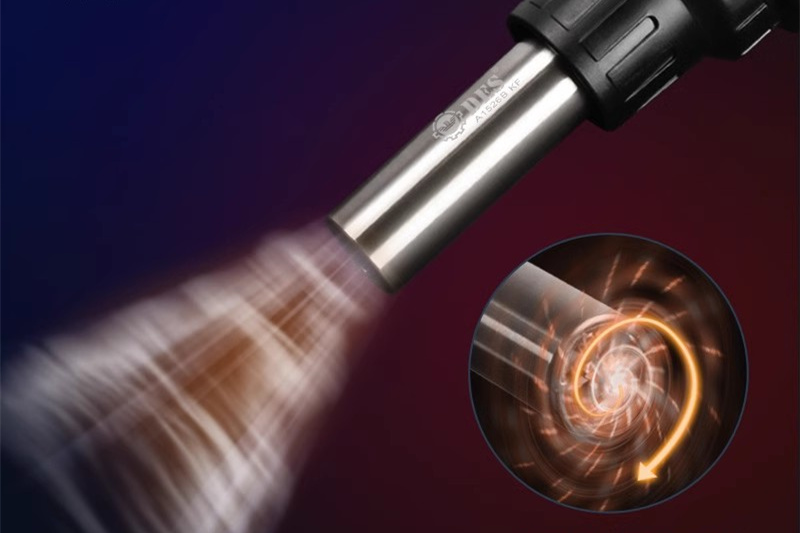

Turbine cyclone, constant temperature air supply
Stable air supply temperature, higher efficiency
Smart sleep when idle

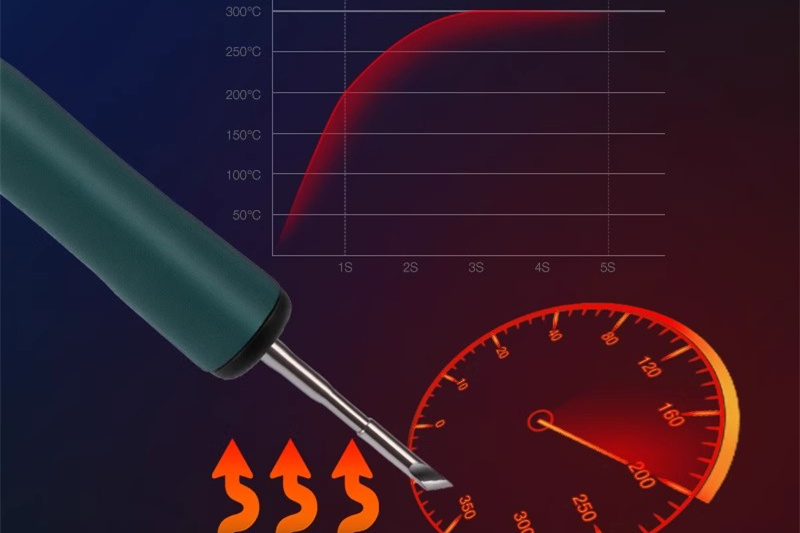

2 seconds to heat up, efficient welding, built-in body sensor, default 30 seconds of automatic sleep (customizable time)

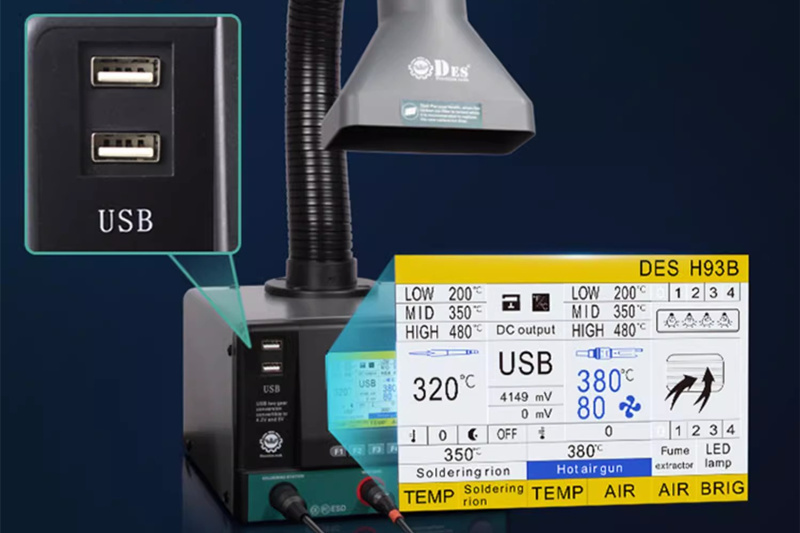

Intelligent large screen display
Microcomputer control, smooth operating system, large screen real-time display of working status
With 2 USB power supplies (4.2V/5V)

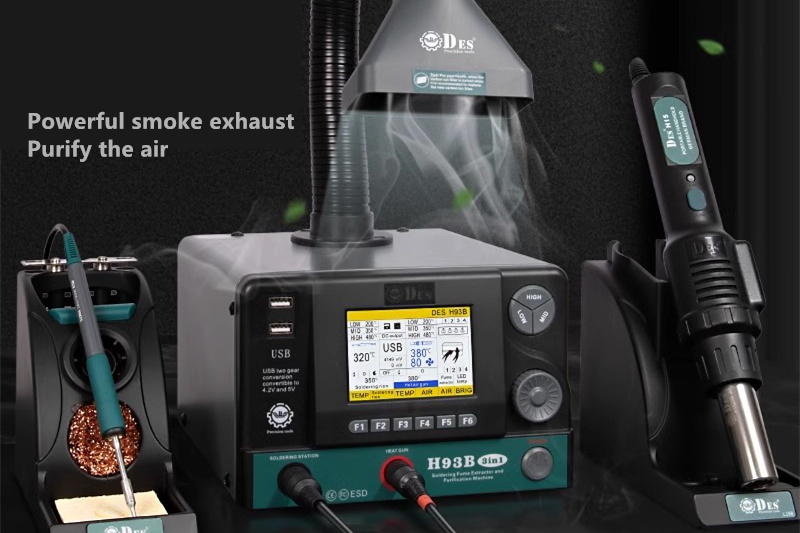

Solder fume purification machine
Fume filtration/air purification/sterilization and disinfection
Equipped with high-brightness LED lighting

Product parameters:

Host	Model	H93B
	Display	TFT true color LCD display
	Peak power	1650W
	Voltage	AC220V/50Hz AC110V/60Hz
	Host size	280(L) x 197(W) x 140(H) mm
	Body weight	2.7Kg
Soldering iron handle	Model	S120A handle
	Power consumption	120W(S120A)
	Temperature control range	80~500°C
	Impedance between soldering tip and ground	2Ω or less
	Potential between soldering tip and ground	2Mv or less
	Tip/tip model	TE series
	Output voltage	24V
	High-temperature sleeve	GT06
	Wire length	1.5m
	Handle weight	100g
Heat gun handle	Model	H15A touch-sensitive hot air gun
	Peak power	1500W
	Temperature control range	80~500℃
	Temperature stability	±5℃
	Air volume	10~80 levels
	DC turbine fan	24V/8300rpm
	High temperature sleeve	GP5/GP6 (purchased separately)
	Heating element	220V/A1526B 110V/A1525B
	Output voltage	AC220V/50Hz AC110V/60Hz
	Handle cable length	1.2m
	Weight	252g
Smoke purifier	Power consumption	30W
	Suction	0~4 levels adjustable
	Display	3.5" TFT-LCD screen display
	Smoke purification tube (mm)	Smoke purification tube: 800(L)x41(inner diameter); tube mouth: 118(L) x 68(W)
	LED light	0~4 levels adjustable (12V/2W)
	Carbon ion filter	52 (W) x115(L) x10 (H) mm
	Turbine air supply	24V/8500rpm
	Decibel	≤60dB
USB	Current output	2A
	Output voltage	5V/4.2V (interchangeable)
	Applicable	Mobile phone charging/mobile phone repair
	Ground resistance	≤2Ω
	Ground voltage	≤2Mv
