Home > Tools / Accessories > Convection preheater Metcal PCT-100-21
  • Convection preheater Metcal PCT-100-21
  • Convection preheater Metcal PCT-100-21
1/1
  • Convection preheater Metcal PCT-100-21
  • Convection preheater Metcal PCT-100-21
Share:

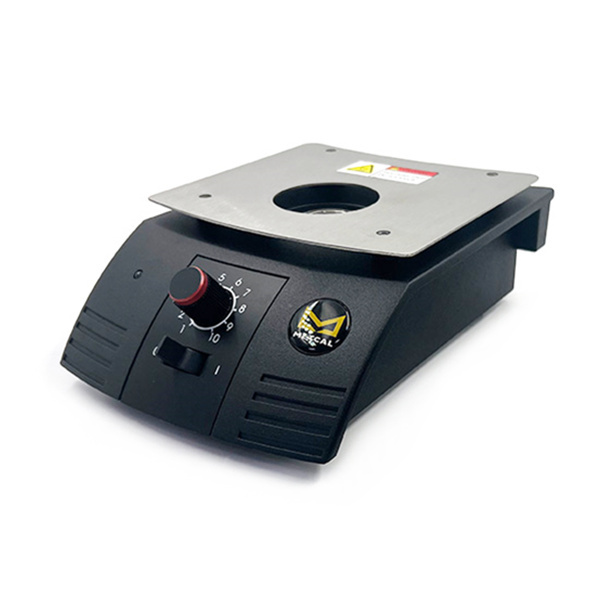

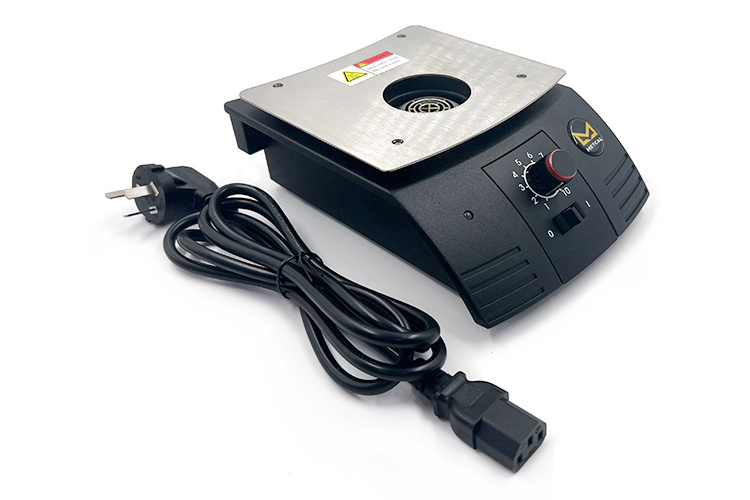

Convection preheater Metcal PCT-100-21

$510.00 $0.00
The device can be used to preheat the parts that need to be heated in the shortest time, reducing the risk of damage to surrounding components due to excessive temperature.
The PCB can be placed directly above the top ventilated plate heater to achieve maximum precision preheating.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you wantX
Quantity:
Add to Favorites
  • Convection preheater Metcal PCT-100-21
  • Convection preheater Metcal PCT-100-21
1/1
  • Convection preheater Metcal PCT-100-21
  • Convection preheater Metcal PCT-100-21
  • Description
Convection preheater Metcal PCT-100-21

Suitable for SMT processes, manual soldering, desoldering, lead-free soldering, soldering of multi-layer circuit boards and ground plane components.
The device can be used to preheat the parts that need to be heated in the shortest time, reducing the risk of damage to surrounding components due to excessive temperature.
The PCB can be placed directly above the top ventilated plate heater to achieve maximum precision preheating.

Key parameters:
Input voltage: 100-240V / 50-60 Hz
Heater rated power: 450W
Storage temperature: -10℃～60℃
Ambient temperature: 0℃～40℃
Air flow: 280L/min
Control temperature: adjustable up to 300°C
Surface resistance (ESD): 10 5 Ω - 10 11 Ω
Dimensions (L*W*H): 205*155*65mm
Weight: 1.7kg

ESD compliant
Increases heat capacity and reduces process temperature
Used in a variety of processes including soldering, desoldering and SMD rework
Delivers faster productivity while reducing overall process temperature
Manual mode keeps heater temperature constant
Profile mode allows for better process control
4 programmable heating zones, 1 cooling zone
Stores up to 50 user-defined profiles for easy setting of heater output or temperature control on a board
Highly efficient eddy current heater design maximizes temperature for increased productivity
