For Antminer APW3 APW7 PSU
It is also applicable to other PSUs. The fan interface is 2P, that is, the 2P interface of the computer motherboard, which can be used for small chassis heat dissipation. The cable length is about 7cm, the speed is 2000RPM, and the operation is quiet.
Ball steel bearing, pure copper snap ring, durable.

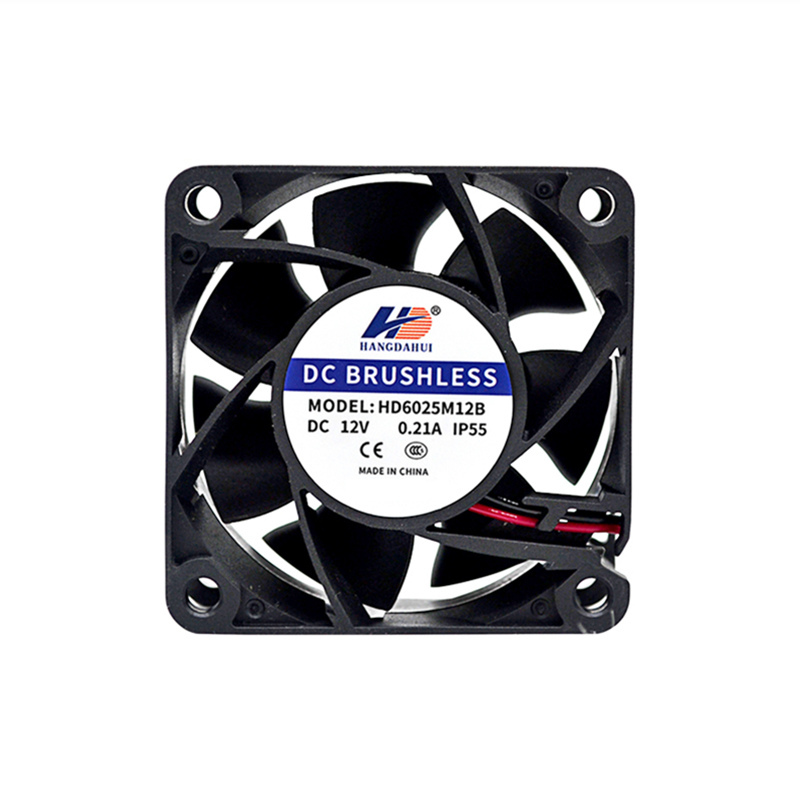

Product parameters
Brand: HD
Model: HD6025M12B
Size: 60*60*25(mm)
Voltage: 12V/0.21A
Speed: 2000RPM
Interface: 3-wire 2pin
Line length: about 7cm
Cable interface diagram (in the red frame)
If you need other interfaces, please inform the salesman, thank you!
Antminer PSU fan diagram:
Notice:
APW9 , APW9+ , APW12 have A and B options, A means official PSU and B means universal PSU.
